Product Description

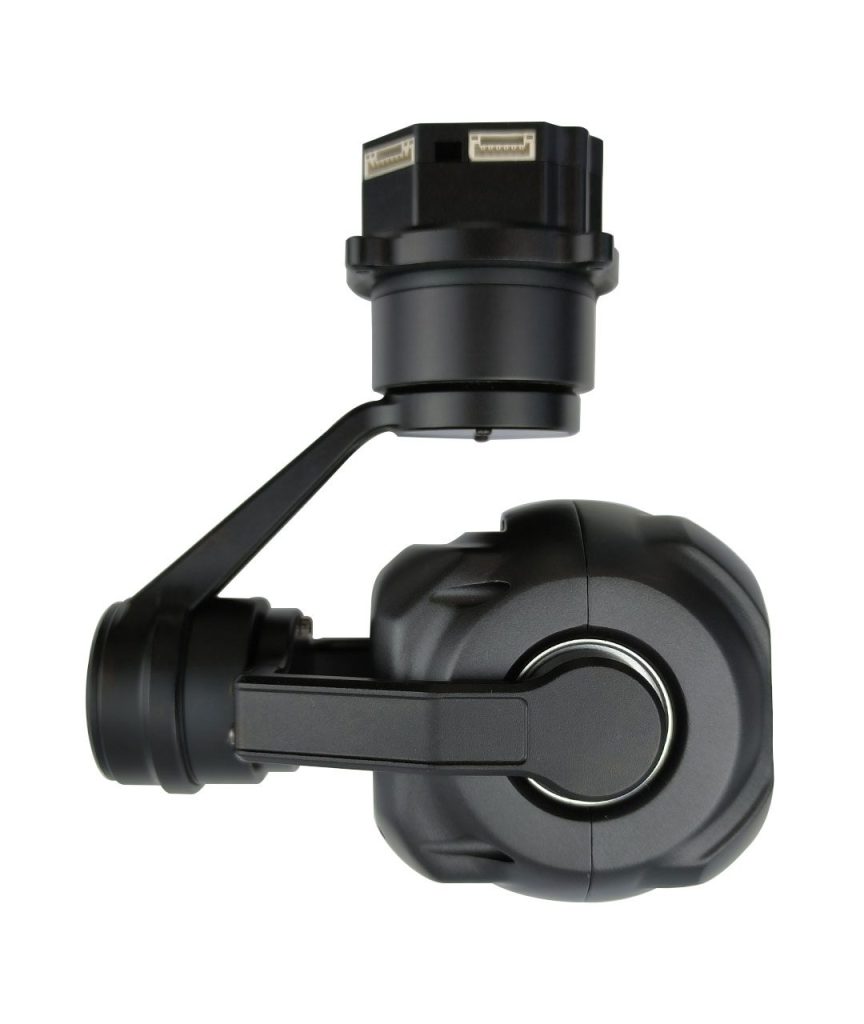

The KIY10S4K is a compact and lightweight 3-axis gimbal camera designed for drone integration. It delivers 4K video resolution and a powerful 10× optical zoom combined with up to 7× digital zoom, offering an effective 70× total zoom. This model is suited for aerial surveillance, inspection, and public safety applications.

⚙️ Key Specifications

• Sensor: 1/2.8″ CMOS, 8 megapixels

• Zoom: 10× optical, 7× digital (≈70× total zoom)

• Resolution: 4K at 30 fps, also supports 1080p

• Focus Time: <1 second

• Video Latency: ~170 milliseconds

• Gimbal Stabilization: 3-axis, ±0.02° precision

• Gimbal Ranges:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±290°

• Field of View:

  • Wide: ~61.5° horizontal × 35.0° vertical

  • Telephoto: ~7.0° horizontal × 3.97° vertical

• Control Interfaces: IP, UART, SBUS (PWM optional)

• Video Output: RTSP network stream (HDMI optional), TF card recording

• Power Supply: 12–26 V DC, approx. 5 watts

• Dimensions: Approx. 148 mm diameter × 132 mm height

• Weight: Approx. 360 grams

• Operating Temperature: −10 °C to +55 °C

• Storage Temperature: −20 °C to +60 °C

• Humidity: 20% to 80% RH (non-condensing)
