Product Description

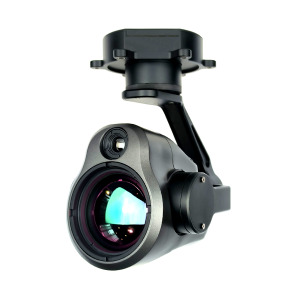

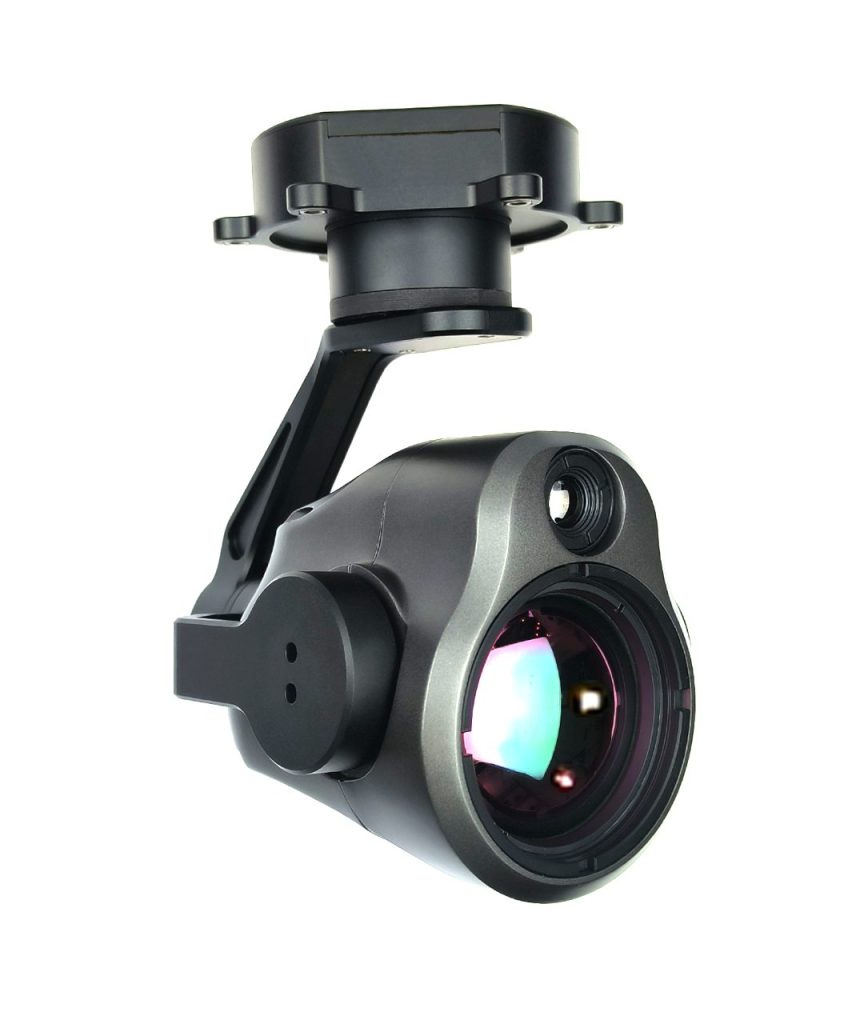

This high-precision camera pod integrates two separate thermal imaging channels—a 9.1 mm lens for wide-angle thermal view (~48.7°×38.6°) and a 50 mm lens for narrow-angle thermal detail (~8.8°×7.0°)—mounted on a stabilized 3-axis Field-Oriented Control (FOC) gimbal. The system supports precise dual-stream output, thermal switching, and synchronized PTZ control.

---

🔍 Core Features

• Thermal Sensor 1 (Wide-angle):

  • Resolution: 640×512 VOx thermal detector (12 μm pixel pitch)

  • Lens: 9.1 mm fixed focal, ~48.7°×38.6° field of view

  • Sensitivity: NETD ≤50 mK at F/1.0

  • Supports global temperature measurement and optional full-pixel temperature saving

• Thermal Sensor 2 (Telephoto):

  • Same resolution with larger 17 μm pixels, increasing sensitivity (≤ 40 mK)

  • 50 mm focal length lens, FOV approximately 8.8°×7.0°

  • Also supports global temperature analytics and full-frame logging

• Gimbal & Control:

  • Encoder-based 3-axis FOC for pitch, roll, and ±280° yaw motion

  • Stabilization jitter ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

  • Adaptive PTZ speed with zoom, instant thermal channel switching, and one-click home function

  • Control via network IP, serial port (UART), and S.BUS; optional PWM available

  • Dual-channel video output with RTSP streaming, simultaneous dual recording to one TF card, and configurable picture-in-picture modes

---

✅ Use Cases

• Night vision and thermal surveillance in UAV deployments

• Search & rescue, perimeter monitoring, and operation in low-light environments

• Thermal analysis requiring both wide-area and zoomed-in thermal views simultaneously

• Infrastructure inspection, environmental mapping, or situational awareness with dual-mode thermal imaging

Link

Product KHPA60950 link is here!
