Product Description

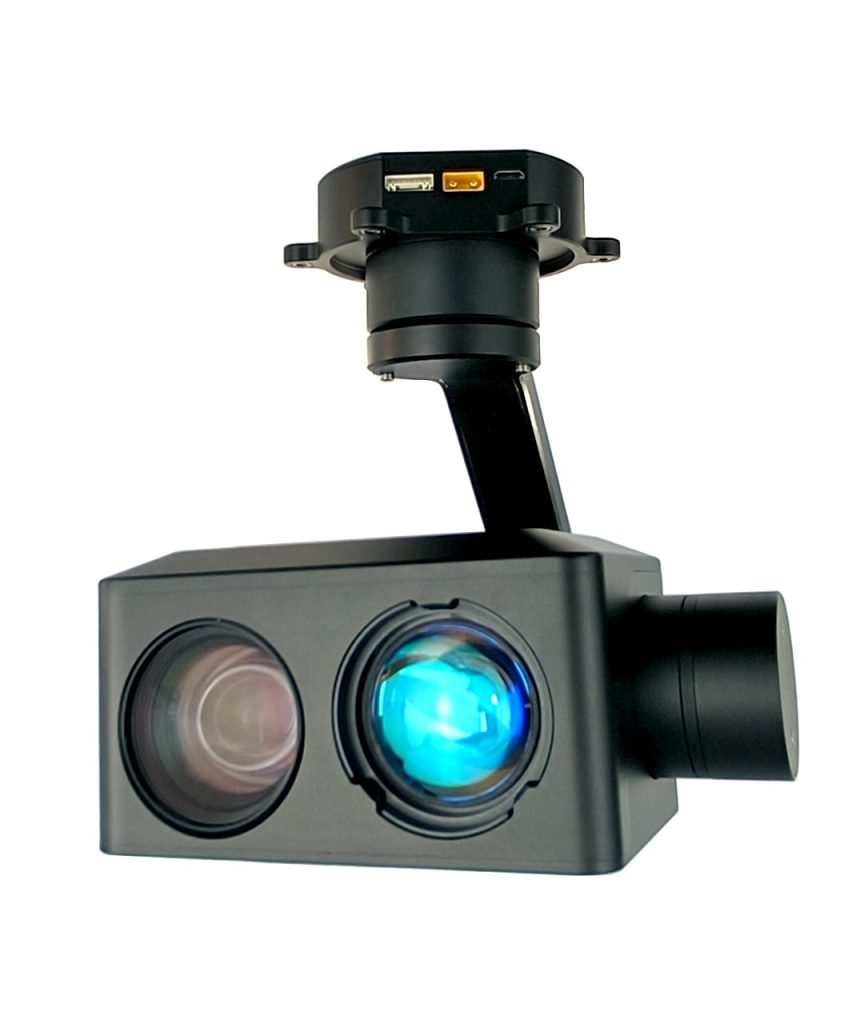

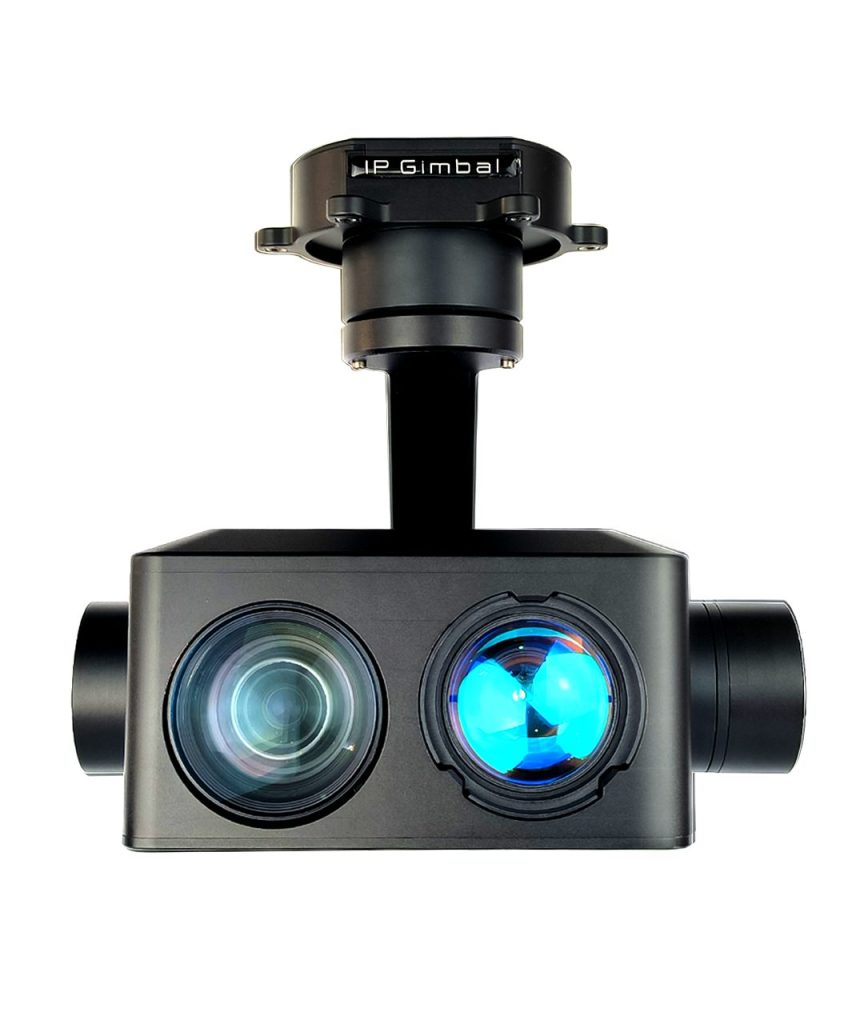

The KIP30N800 is a compact, high-precision drone payload that combines a 30× optical zoom visible-light camera with an integrated 800 m long-range 850 nm laser illuminator for enhanced night-time operation. The system is mounted on a 3-axis, encoder-driven FOC gimbal, offering robust stabilization, low power draw, and flexible control via network or serial protocols.

---

🔍 Key Features

• Visible-Light Camera

  • 2 MP wide-dynamic-range CMOS sensor

  • 30× optical zoom (approx. 4.5 mm to 135 mm focal range)

  • Up to 9× digital zoom, for ~270× mixed hybrid zoom capability

  • Fast autofocus under 1 second

  • Supports 1080p streaming via RTSP and HDMI, with onboard TF-card storage

• Laser Illuminator

  • 850 nm Class‑1 eye-safe laser fill-in light

  • Effective illumination range up to 800 m

  • Designed for low-light and night-operation scenarios

---

🌀 Gimbal System & Control

• Stabilization: Encoder-powered 3-axis FOC (Field-Oriented Control) gimbal for precise roll, pitch, and yaw movement

• Physical Attributes: Lightweight, compact form factor, and durable metal housing

• Angular Precision: Typical stabilization jitter within ±0.02° (pitch/roll) and ±0.03° (yaw)

• Smart Control: Adaptive PTZ speed based on zoom level; one-click home position recall

• Interface Options: Streamlined RTSP output via Ethernet/IP; serial ports support synchronous control of camera and PTZ; SBUS/PWM optional for UAV integration

• Video Handling: Dual-mode streaming and TF-card recording with simultaneous output capabilities

---

✅ Use Cases

• Night-time aerial surveillance and search-and-rescue where illumination is needed

• Infrastructure monitoring in low-light environments (e.g. pipeline, perimeter patrol)

• Long-distance observation missions that need both high-zoom optics and integrated lighting

• Compact UAV deployments requiring high-resolution imaging with onboard illumination

Link

Product KHP30N800 link is here!

Form Factor

Attribute	Value	Description	Why It Matters
Height	10	Total standing height (cm)	Human-scale enables use of tools, navigation of spaces
Width	20	Shoulder-to-shoulder width (cm)	Affects balance, door/passage fit
Weight	52	Total mass (kg)	Impacts mobility, safety, power usage, transportability

Power System

Attribute	Value	Description	Why It Matters
Battery Type	Alkaline Battery	Li-ion / LiFePO4 / etc.	Determines energy density, safety
Battery Capacity		Wh or Ah	Impacts range and operating time
Operating Duration		Hours under normal load	Key for logistics, shift planning

Performance

Attribute	Value	Description	Why It Matters
Payload Capacity		Maximum carrying capacity (kg)	Determines real-world utility
Speed		Maximum operational speed	Task completion rate & productivity
Precision		Positioning accuracy (mm)	Quality of work & application suitability
Repeatability		Consistency of positioning (±mm)	Manufacturing quality & reliability
Cycle Time		Time per standard operation	Productivity & throughput calculations
MTBF		Mean Time Between Failures (hours)	Reliability & maintenance planning
Service Life		Expected operational lifespan (years)	ROI calculations & replacement planning

Connectivity

Attribute	Value	Description	Why It Matters
Communication Protocol		Wi-Fi / Ethernet / 5G / Bluetooth	Network integration capabilities
Remote Control		Web / App / Joystick / API	Needed for manual override or remote training
Programming Interface		Drag-drop / Code / Visual / Teach pendant	Ease of deployment and customization
Integration APIs		Available software interfaces	System integration capabilities
Cloud Connectivity		Cloud platform compatibility	Data analytics & remote monitoring
Security Features		Encryption & authentication methods	Cybersecurity compliance
