Product Description

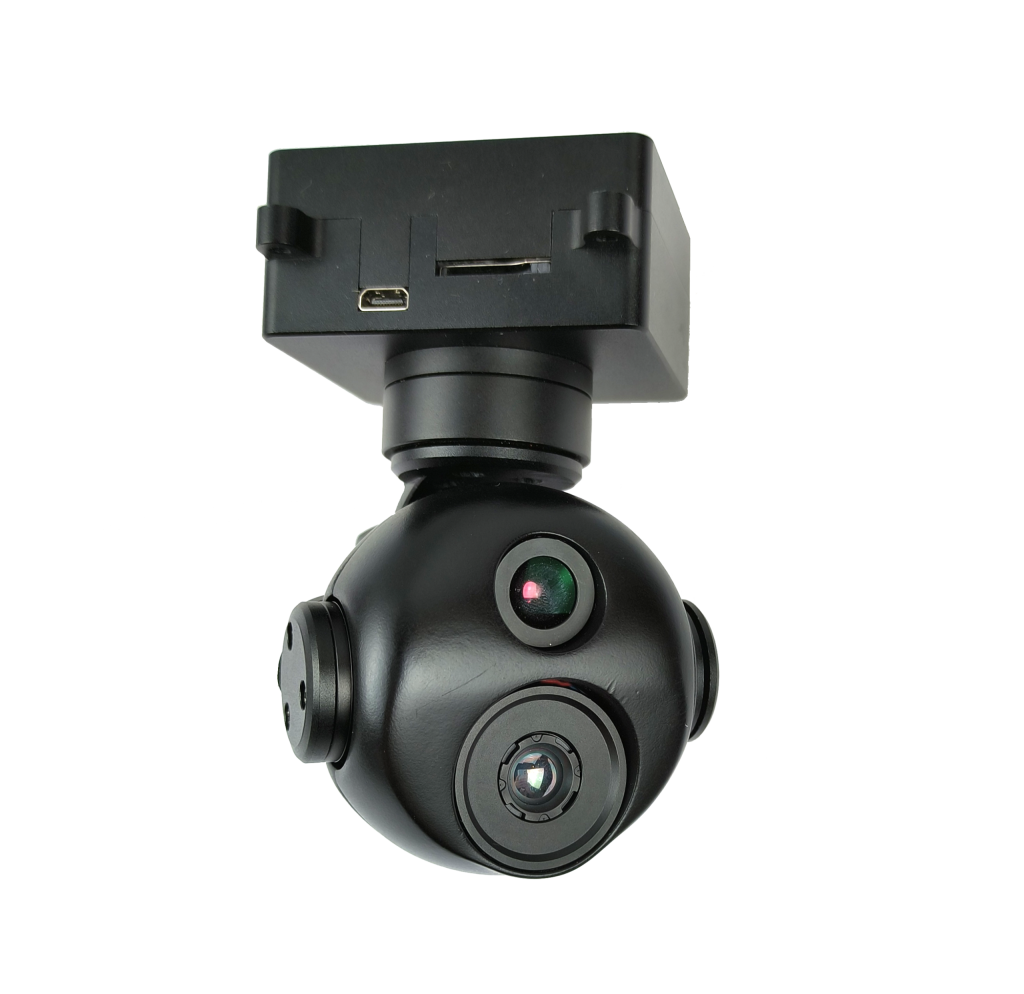

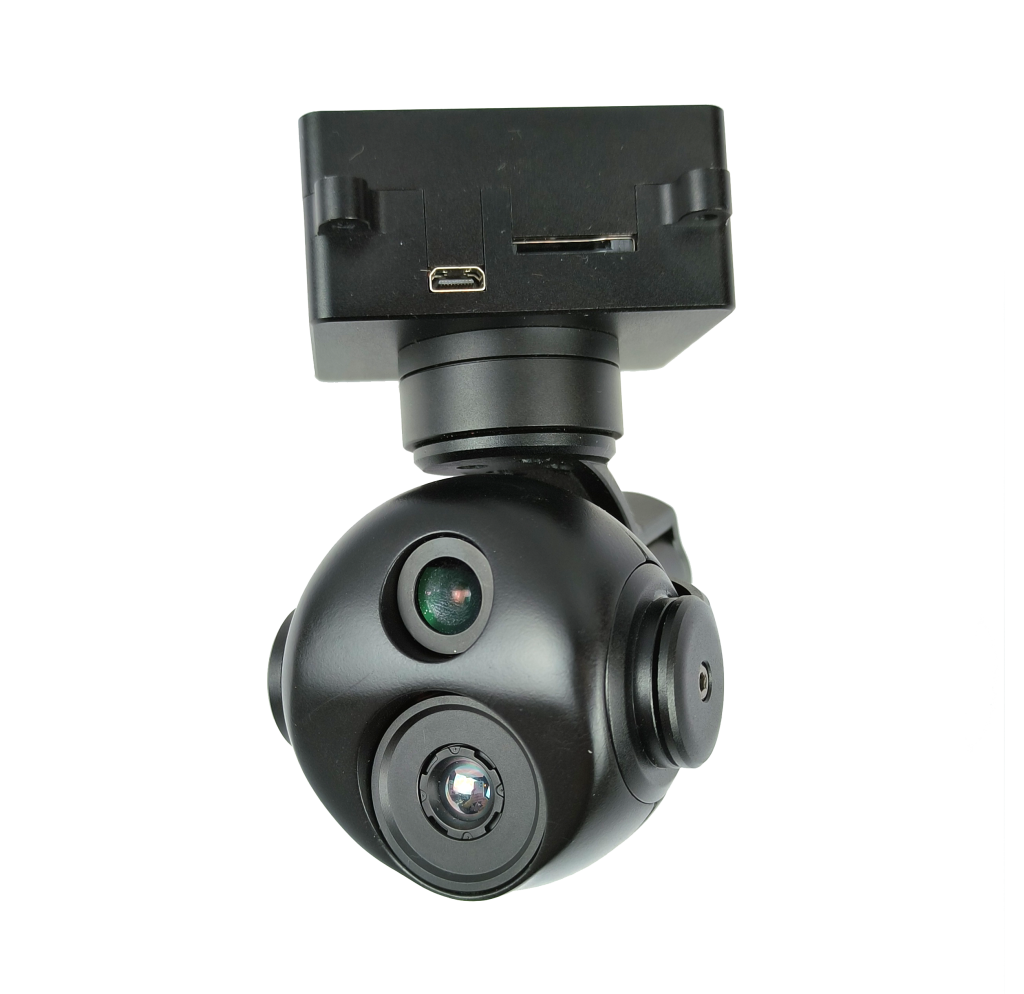

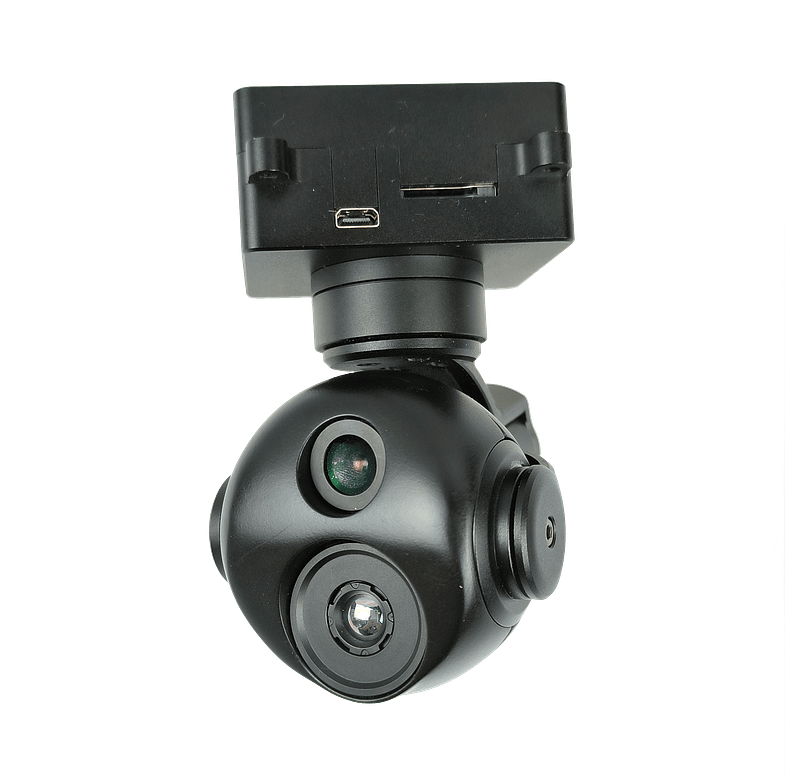

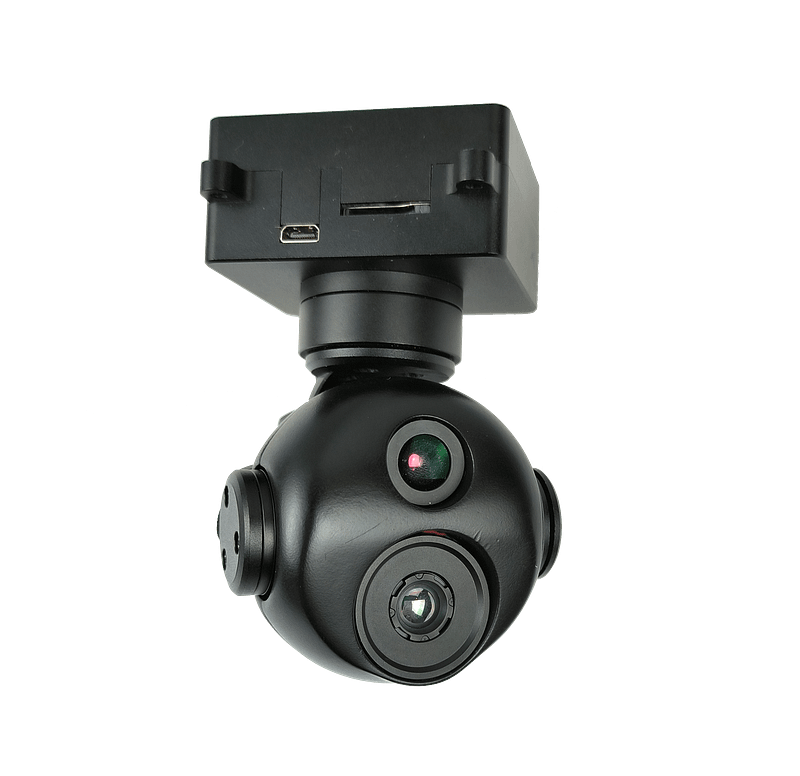

This compact drone payload combines:

• A fixed‑focus visible‑light camera (1080p resolution, ~2 MP CMOS)

• A 256 × 192 thermal imager (Vanadium‑Oxide sensor) with a 7 mm lens

It’s built on a 3-axis FOC‑stabilized gimbal, balancing lightweight design and power efficiency—ideal for small UAV platforms.

🔍 Key Features

Visible-Light Camera

• 1080p @ 30 fps resolution (~2 MP sensor, wide Dynamic Range)

• Fixed-focus lens; 9× digital zoom

• Live output via HDMI and IP (RTSP); supports local TF‑card recording

• Field of View: ~60° horizontal × 43° vertical (~77° diagonal)

• Real-time autofocus (<1 s) and quick response 

Thermal Module

• Resolution: 256 × 192 pixels with a 7 mm lens (~25° × 18.8° FOV)

• NETD ≤ ~65 mK; spectral sensitivity between 8–14 µm

• Features: Multiple pseudo-color palettes, picture‑in‑picture modes, temperature measurement (central, max/min, global)

• Up to 9× digital zoom for thermal channel 

🌀 Gimbal & Control

• Stabilization: 3-axis encoder-driven Field‑Oriented Control

• Motion limits: Roll ±45°, Pitch −80° to +105°, Yaw ±150°

• Stabilization jitter: ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

• Smart features: Adaptive PTZ speed linked to zoom level, one-click “home” reset, PIP modes

• Interfaces supported: Ethernet/IP, UART serial; optional SBUS/PWM controls

• Dual-channel control for visible, thermal, and PTZ via serial or network commands 

✅ Use Cases

• Small-drone deployment in surveillance or inspection roles

• Day/night dual imaging for search & rescue, infrastructure monitoring, and wildlife surveys

• Missions requiring low latency, compact size, and synchronized video output

• Public safety or environmental applications where temperature visualization adds value
