Product Description

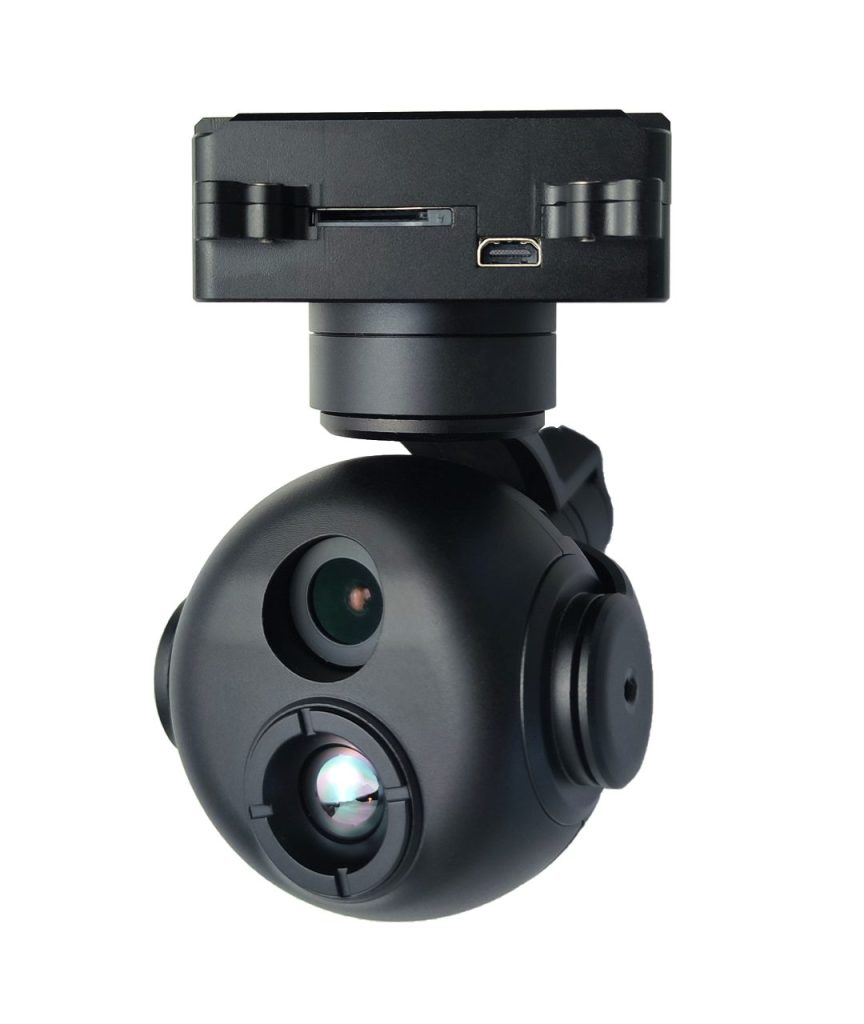

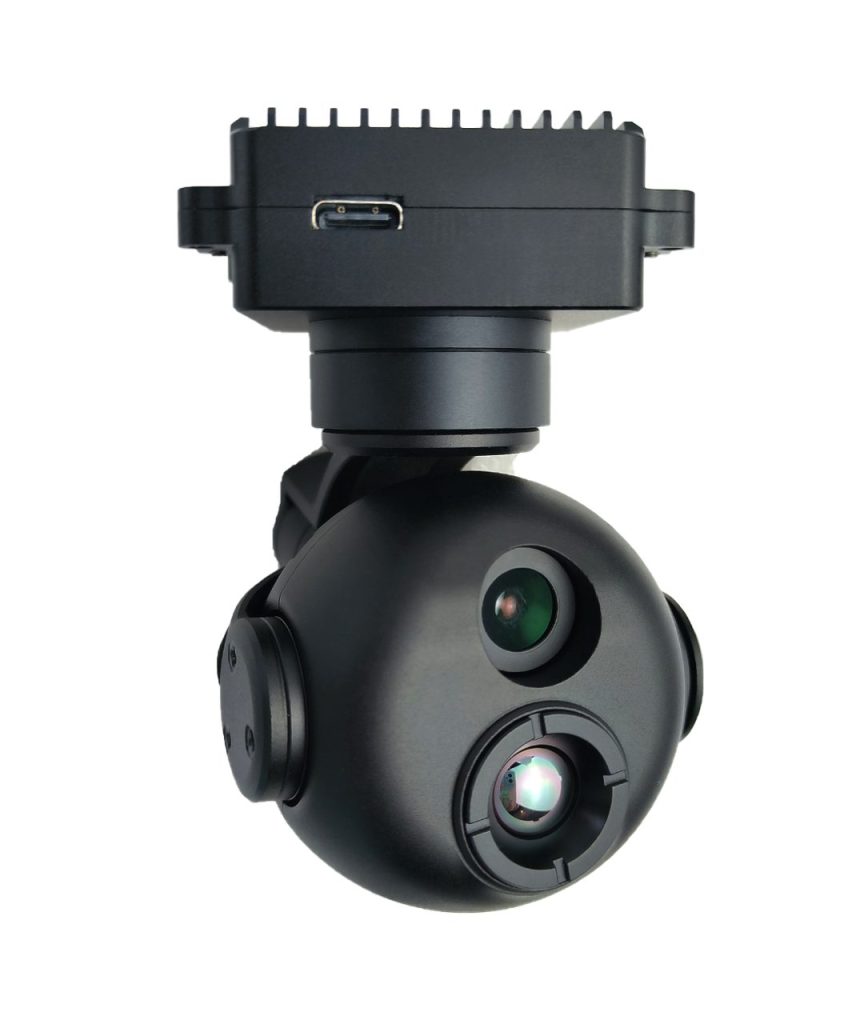

This compact gimbal integrates a fixed-focus visible-light camera (1080p, ~2 MP CMOS sensor) with a 640×512 thermal imaging module (9.1 mm lens). It offers lightweight performance (~200 g), low power consumption, and high stability suitable for drone integration.

---

📸 Visible-Light Camera

• Resolution: 1080p (~2 MP wide-dynamic-range CMOS)

• Lens: Fixed-focus, no mechanical zoom

• Digital Zoom: Up to 9×

• Output: Real-time HDMI and IP (RTSP) streams

• Recording: Dual-channel onboard TF‑card support

• Features: Real-time autofocus (< 1 s), multiple PIP display modes, global temperature overlay from thermal channel

---

🌡️ Thermal Imaging Module

• Dataset: 640×512 VOx uncooled detector

• Lens: 9.1 mm fixed focal length (~48° × 38° FOV)

• Thermal Display: Supports ten pseudo-color palettes, PIP modes, and temperature analytics (center/maximum/minimum)

• Zoom: Up to 9× digital thermal zoom available

---

⚙️ Gimbal & Control

• Stabilization: 3-axis FOC encoder control for high stability

• Motion Range: Roll ±45°, Pitch −105° to +80°, Yaw ±150°

• Jitter Accuracy: ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

• Features: Adaptive pan/tilt speed tied to zoom, one-click return-to-home preset, synchronized visible/T‑channel control via IP/UART/SBUS

✅ Use Cases

• Lightweight drone platforms needing both visible and thermal imaging

• Surveillance, inspection, mapping, and public safety missions

• Thermal anomaly detection, search & rescue, environmental monitoring

• Compact missions requiring low latency, low weight, and dual-stream throughput
