Product Description

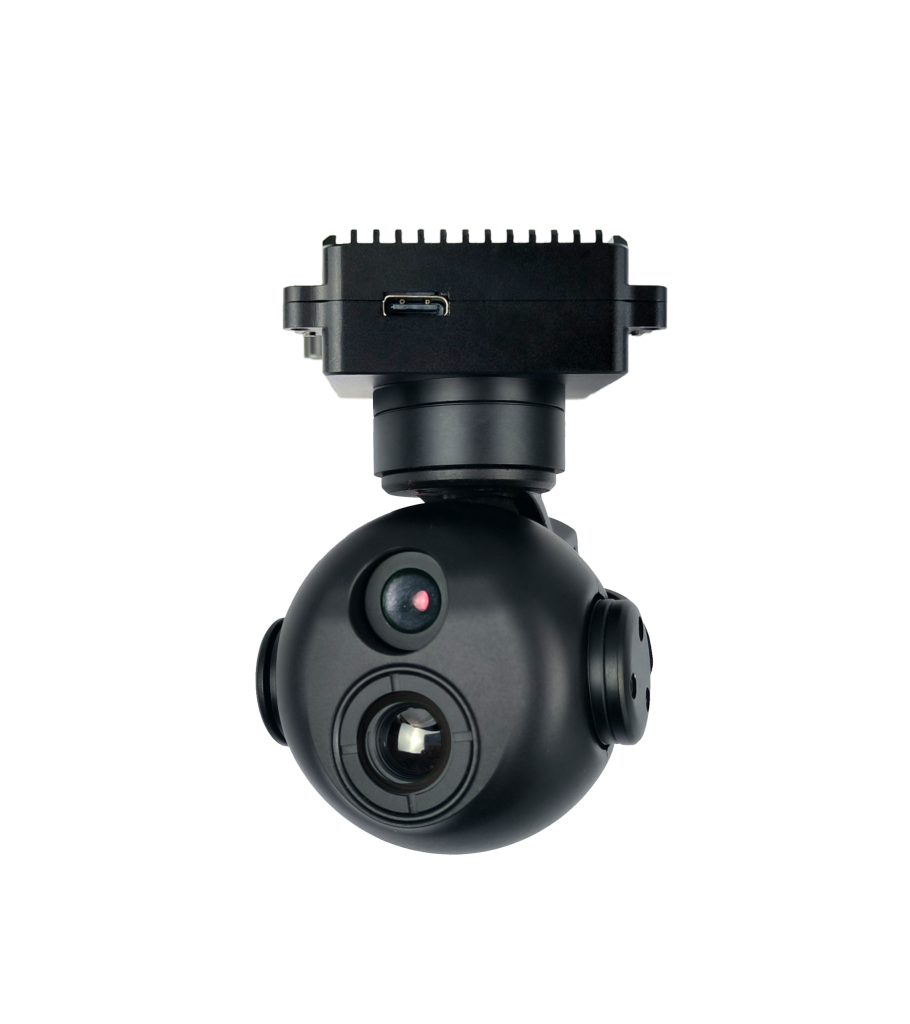

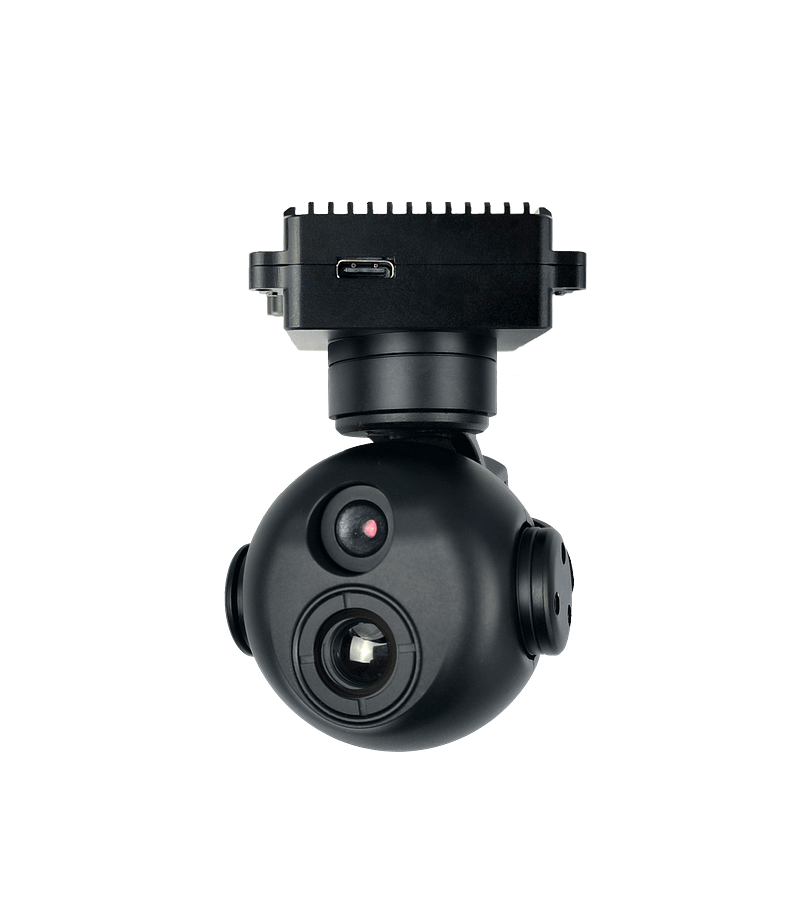

The DIU290G609 is a miniature dual‑sensor gimbal payload integrating a fixed‑focus 1080p visible-light camera with a 640 × 512 thermal imaging sensor. Encased in a precision 3-axis FOC stabilized gimbal, it delivers reliable visible and thermal imaging in a rugged yet ultra-lightweight package (approx. 190 g).

---

🔍 Core Features

• Visible-Light Module:

  • Native resolution: 1080p (≈ 2 megapixel, WDR CMOS)

  • Fixed focal-length lens (~60 ° × 43 ° FOV)

  • 9× digital zoom

  • Real-time autofocus (< 1 second)

  • HDMI and RTSP (IP) video output

  • Local TF-card recording support

• Thermal Imaging Module:

  • Resolution: 640 × 512 VOx microbolometer (12 µm pixel)

  • Lens: ~9.1 mm focal length (~45° × 37° FOV)

  • 8–14 µm spectral sensitivity, NETD ≤ 50 mK @F1.0

  • Supports pseudo-color modes, multiple PIP display formats, central/global temperature reading modes

---

🌀 Gimbal & Control

• Stabilization: 3-axis encoder-based FOC control

• Motion Limits:

  • Roll: ±45°

  • Pitch: −40° to +100°

  • Yaw: ±140° (non-continuous)

• Accuracy: ±0.02° pitch/roll jitter; ±0.03° yaw jitter

• Smart Functions: One-click home return, adaptive PTZ speed at zoom levels, dual-color display modes and IR/EO switching

• Control Interfaces: Network (IP/RTSP), UART, SBUS; supports dual video and PTZ control via serial or network commands

---

✅ Use Cases

• DJI and other lightweight drone platforms

• Public safety, security patrols, and search-and-rescue operations

• Inspection of infrastructure like power lines or pipelines

• Wildlife and environmental surveillance with thermal/visible imaging needs

Link

Product DIU290G609 link is here!

Form Factor

Attribute	Value	Description	Why It Matters
Height	10	Total standing height (cm)	Human-scale enables use of tools, navigation of spaces
Width	20	Shoulder-to-shoulder width (cm)	Affects balance, door/passage fit
Weight	52	Total mass (kg)	Impacts mobility, safety, power usage, transportability

Power System

Attribute	Value	Description	Why It Matters
Battery Type	Alkaline Battery	Li-ion / LiFePO4 / etc.	Determines energy density, safety
Battery Capacity		Wh or Ah	Impacts range and operating time
Operating Duration		Hours under normal load	Key for logistics, shift planning

Performance

Attribute	Value	Description	Why It Matters
Payload Capacity		Maximum carrying capacity (kg)	Determines real-world utility
Speed		Maximum operational speed	Task completion rate & productivity
Precision		Positioning accuracy (mm)	Quality of work & application suitability
Repeatability		Consistency of positioning (±mm)	Manufacturing quality & reliability
Cycle Time		Time per standard operation	Productivity & throughput calculations
MTBF		Mean Time Between Failures (hours)	Reliability & maintenance planning
Service Life		Expected operational lifespan (years)	ROI calculations & replacement planning

Connectivity

Attribute	Value	Description	Why It Matters
Communication Protocol		Wi-Fi / Ethernet / 5G / Bluetooth	Network integration capabilities
Remote Control		Web / App / Joystick / API	Needed for manual override or remote training
Programming Interface		Drag-drop / Code / Visual / Teach pendant	Ease of deployment and customization
Integration APIs		Available software interfaces	System integration capabilities
Cloud Connectivity		Cloud platform compatibility	Data analytics & remote monitoring
Security Features		Encryption & authentication methods	Cybersecurity compliance

Form Factor

Attribute	Value	Description	Why It Matters
Height	10	Total standing height (cm)	Human-scale enables use of tools, navigation of spaces
Width	20	Shoulder-to-shoulder width (cm)	Affects balance, door/passage fit
Weight	52	Total mass (kg)	Impacts mobility, safety, power usage, transportability

Power System

Attribute	Value	Description	Why It Matters
Battery Type	Alkaline Battery	Li-ion / LiFePO4 / etc.	Determines energy density, safety
Battery Capacity		Wh or Ah	Impacts range and operating time
Operating Duration		Hours under normal load	Key for logistics, shift planning

Performance

Attribute	Value	Description	Why It Matters
Payload Capacity		Maximum carrying capacity (kg)	Determines real-world utility
Speed		Maximum operational speed	Task completion rate & productivity
Precision		Positioning accuracy (mm)	Quality of work & application suitability
Repeatability		Consistency of positioning (±mm)	Manufacturing quality & reliability
Cycle Time		Time per standard operation	Productivity & throughput calculations
MTBF		Mean Time Between Failures (hours)	Reliability & maintenance planning
Service Life		Expected operational lifespan (years)	ROI calculations & replacement planning

Connectivity

Attribute	Value	Description	Why It Matters
Communication Protocol		Wi-Fi / Ethernet / 5G / Bluetooth	Network integration capabilities
Remote Control		Web / App / Joystick / API	Needed for manual override or remote training
Programming Interface		Drag-drop / Code / Visual / Teach pendant	Ease of deployment and customization
Integration APIs		Available software interfaces	System integration capabilities
Cloud Connectivity		Cloud platform compatibility	Data analytics & remote monitoring
Security Features		Encryption & authentication methods	Cybersecurity compliance
