Product Description

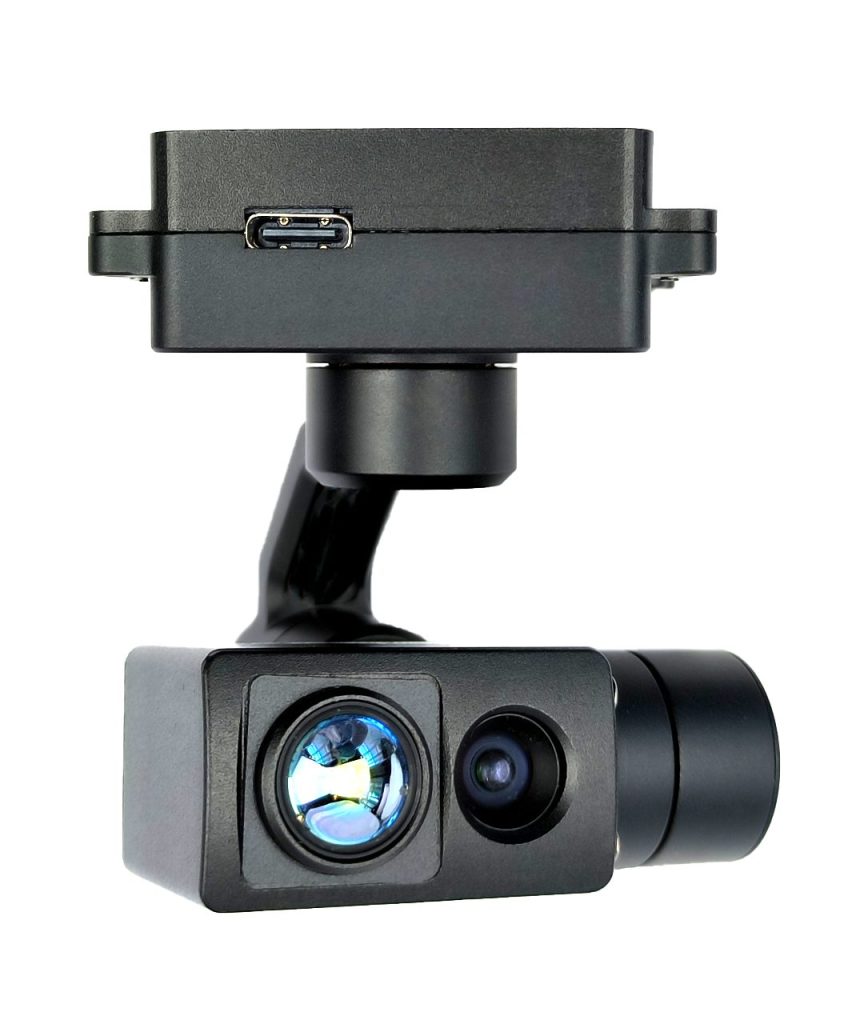

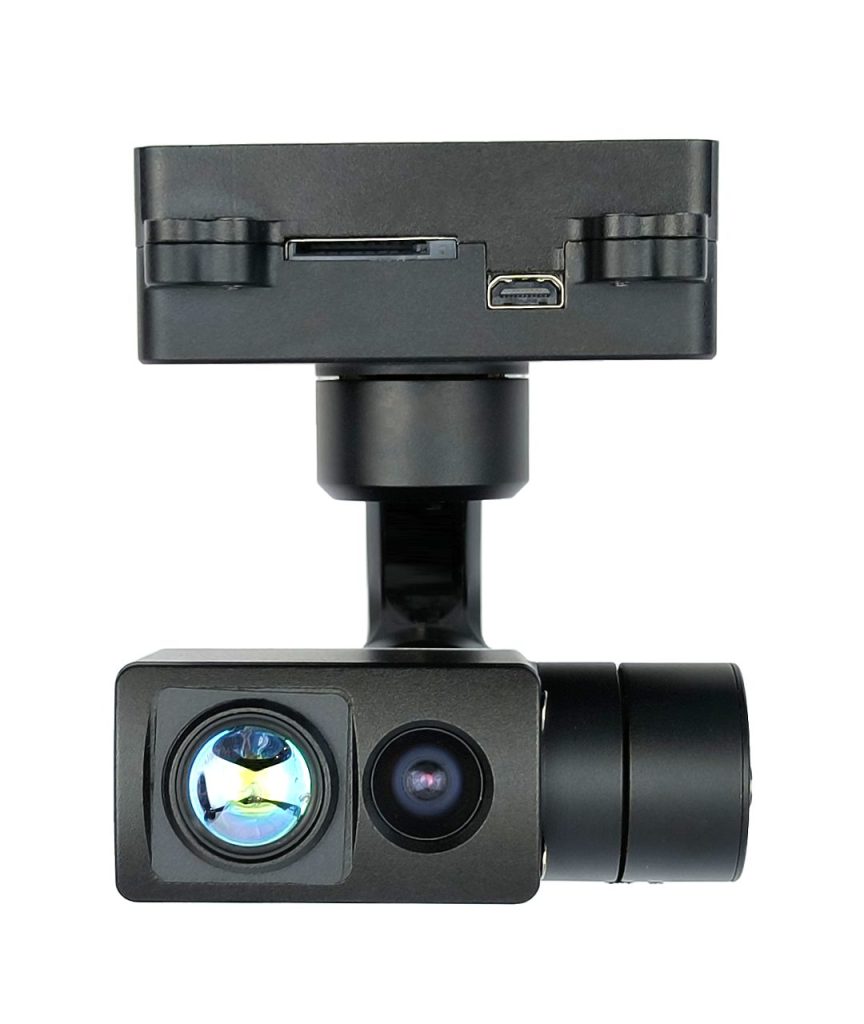

A featherweight drone payload (~120 g) combining a fixed-focus 1080p visible-light camera with a 640 × 512 thermal imager (8.7 mm lens), mounted on a precision 3-axis Field-Oriented Control (FOC) gimbal. It’s ideal for micro-UAV applications where stability and compact size matter.

---

📸 Visible-Light Camera

• Fixed-focus CMOS sensor (~4 MP, 1080p resolution)

• 9× digital zoom

• Offers wide FoV (~92° × 59°)

• Dual streaming via HDMI and RTSP (IP)

• Supports local dual-channel TF card recording

🌡️ Thermal Camera

• 640 × 512 VOx detector, 8.7 mm lens (~40° × 32° field of view)

• Up to 9× digital thermal zoom

• Multiple pseudo-color palettes, picture-in-picture mode, and global temperature measurement features

🌀 Gimbal & Control

• 3-axis encoder-based FOC stabilization

  • Roll ±45°, Pitch −30° to +90°, Yaw ±150°

  • Stabilization jitter ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

• Adaptive zoom-speed control, one-click home position

• Controlled via IP (RTSP), UART; optional SBUS/PWM support

⚙️ Power & Physical Specs

• Input Voltage: DC 12 V–26 V

• Power Consumption: ~4 W

• Dimensions: ~Φ120 mm × 68 mm height

• Weight: ~120 g (±10 g)

• Operating Conditions: −10 °C to +55 °C; humidity 20–80%; storage up to +60 °C at 95% RH

✅ Use Cases

• Lightweight aerial platforms requiring visible + thermal capability

• Surveillance, inspection, and environmental monitoring

• Situational awareness or search & rescue on small UAVs

Link

Product KHP335M608 link is here!
