Product Description

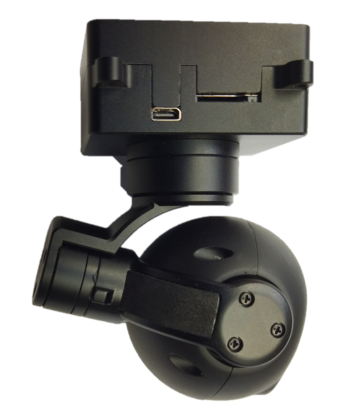

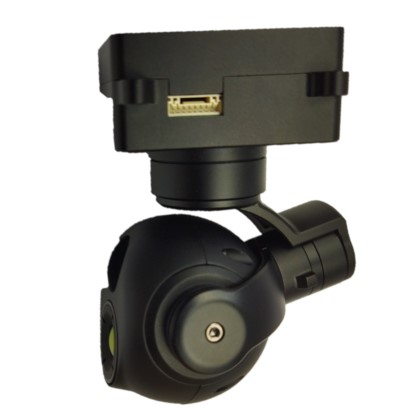

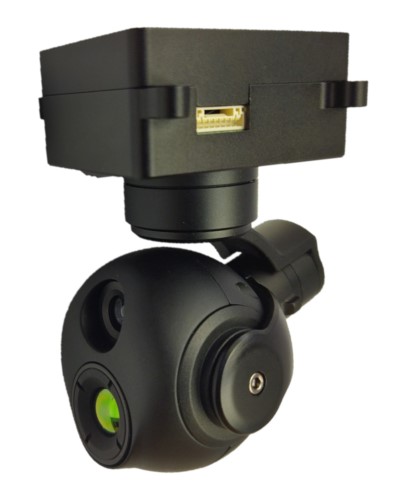

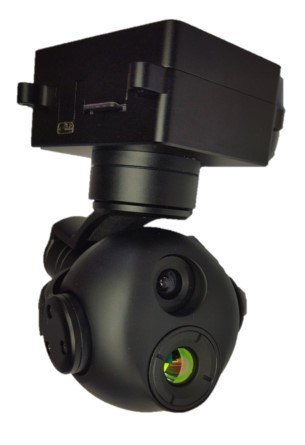

This lightweight (~200 g) drone-mounted payload integrates:

• A fixed-focus 1080p visible‑light camera (~2 MP CMOS sensor).

• A 640×512 VOx thermal module with a 9.1 mm lens.

The package is mounted on a 3-axis encoder-controlled FOC gimbal, offering high stability in a small, power-efficient footprint.

---

🔍 Core Specifications & Features

• Visible-Light Camera

  • Resolution: 1080p (≈ 2 MP WDR CMOS sensor)

  • Lens: Fixed focus (~6 mm focal length)

  • Digital Zoom: Up to 9×

  • Output: IP (RTSP) streaming and HDMI

  • Recording: Dual-channel TF-card support

  • Field of View: ~77° diagonal, ~60° horizontal, ~43° vertical

  • Auto-focus: <1 second for sharp focus response

• Thermal Imaging Module

  • Resolution: 640×512 VOx microbolometer

  • Lens: 9.1 mm fixed focal length (approx. 34.4° × 25.8° field of view)

  • Sensitivity: NETD ≤ 65 mK @ 30 °C, 8–14 µm spectral

  • Features: Multiple pseudo-color palettes, PIP display, point/maximum/average temperature readouts

• Gimbal & Stabilization

  • 3-axis FOC encoder gimbal with smooth control

  • Motion Range: Roll ±45°; Pitch −105° to +80°; Yaw ±150°

  • Stabilization Accuracy: ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

  • Smart Functions: Adaptive speed based on zoom, one-click “home” position

  • Control Interfaces: IP (Ethernet/RTSP) and UART; optional SBUS/PWM support

• Performance & Power

  • Input: DC 12–26 V

  • Power Consumption: ~4 W

  • Latency: ~170 ms for RTSP live streaming

  • Dimensions: ~69.5 × 55 × 93.5 mm

  • Weight: Approx. 200 g ±10 g

  • Operating Temperature: −10 °C to +45 °C; Storage up to +60 °C with 95% non-condensing humidity

---

✅ Use Cases

• Small drones for surveillance, inspection, and search & rescue

• Ideal for applications requiring both visible and thermal imaging

• Popular in public safety, perimeter monitoring, wildlife observation, and infrastructure surveys

• Well-suited where compact size, low latency, and dual-stream capability are essential

Link

Product KHP290G609 link is here!
