Product Description

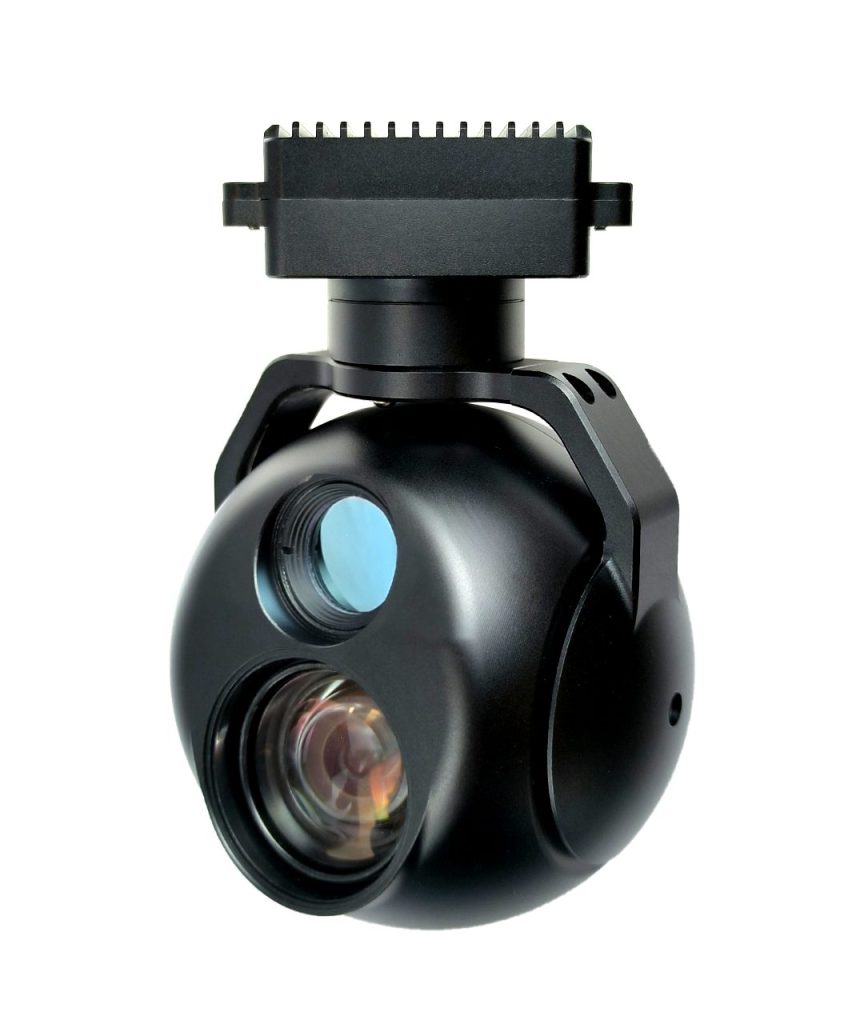

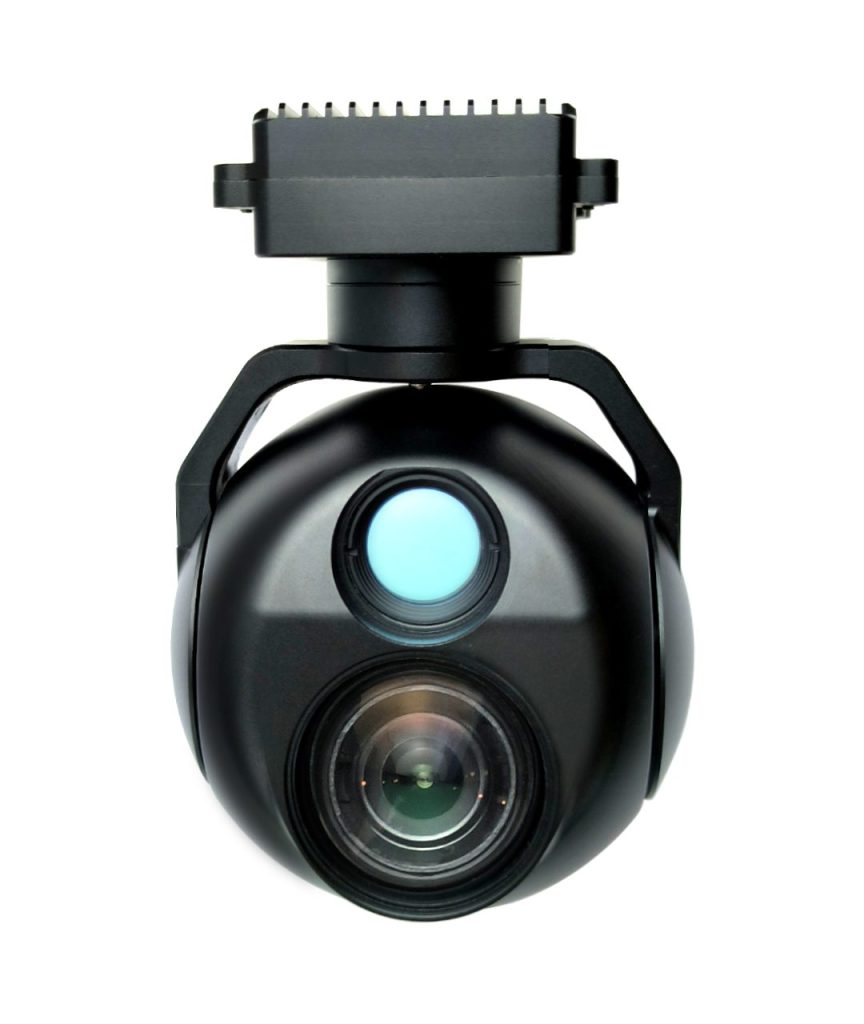

The DYD10G613 is a compact and lightweight dual‑sensor payload featuring:

• A 10× optical zoom visible-light camera (approx. 2–4 MP CMOS) with additional digital zoom to about 90× hybrid zoom capability.

• A 640×512 VOx thermal sensor equipped with a 13 mm lens, supporting up to 9× digital thermal zoom. Both sensors are mounted together on a stabilized 2-axis (or optionally 3-axis) encoder‑controlled FOC gimbal, delivering robust imagery in aerial applications.

---

🔍 Core Specifications

Visible-Light Module

• Sensor: Wide-dynamic-range CMOS (≈2–4 MP depending on configuration)

• Zoom: 10× mechanical with up to ~90× hybrid digital capability

• Autofocus: Fast (<1 s)

• Video Output: 1080p streaming via IP (RTSP); HDMI support in some variants

• Recording: Dual-channel recording to TF card

• Field of View: Approximately 66° wide to 7° telephoto

Thermal Module

• Resolution: 640×512 VOx microbolometer

• Lens: Fixed 13 mm focal length (~33° × 26° field of view)

• Thermal Zoom: Up to 9× digital

• Display Modes: Picture-in-picture, multiple pseudo-color palettes

• Temperature Features: Real-time point/region/global readouts

---

🌀 Gimbal & Control

• Stabilization: Encoder-based FOC (Field‑Oriented Control) gimbal, providing roll/pitch stabilization (typically 2-axis; may include yaw depending on variant)

• Motion Range: Roll ±45°, Pitch up to ±120°, optional 360° yaw

• Stability Accuracy: ≤ ± 0.02° jitter (pitch/roll); ≤ ± 0.03° (yaw where available)

• Smart Features: Adaptive movement speed tied to zoom level, one-button home return, PTZ presets

• Interfaces: IP network (Ethernet), UART control; often compatible with SBUS/PWM for drone integration

---

✅ Use Cases

• UAV imaging requiring high visible-light zoom combined with thermal detection

• Infrastructure inspection, perimeter patrol, wildlife monitoring, and search‑and‑rescue

• Lightweight platforms where dual‑stream video and compact size are critical

• Settings with low latency control needs and dual-channel recording

Link

Product DYD10G613 link is here!
