Product Description

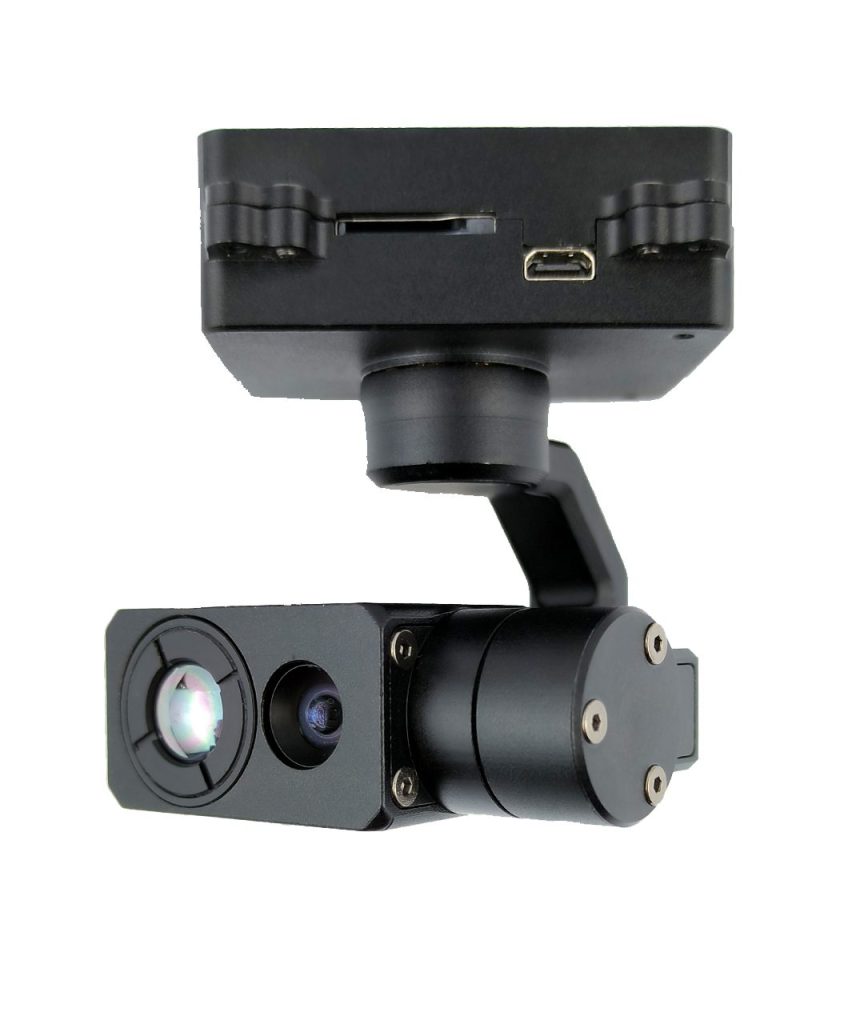

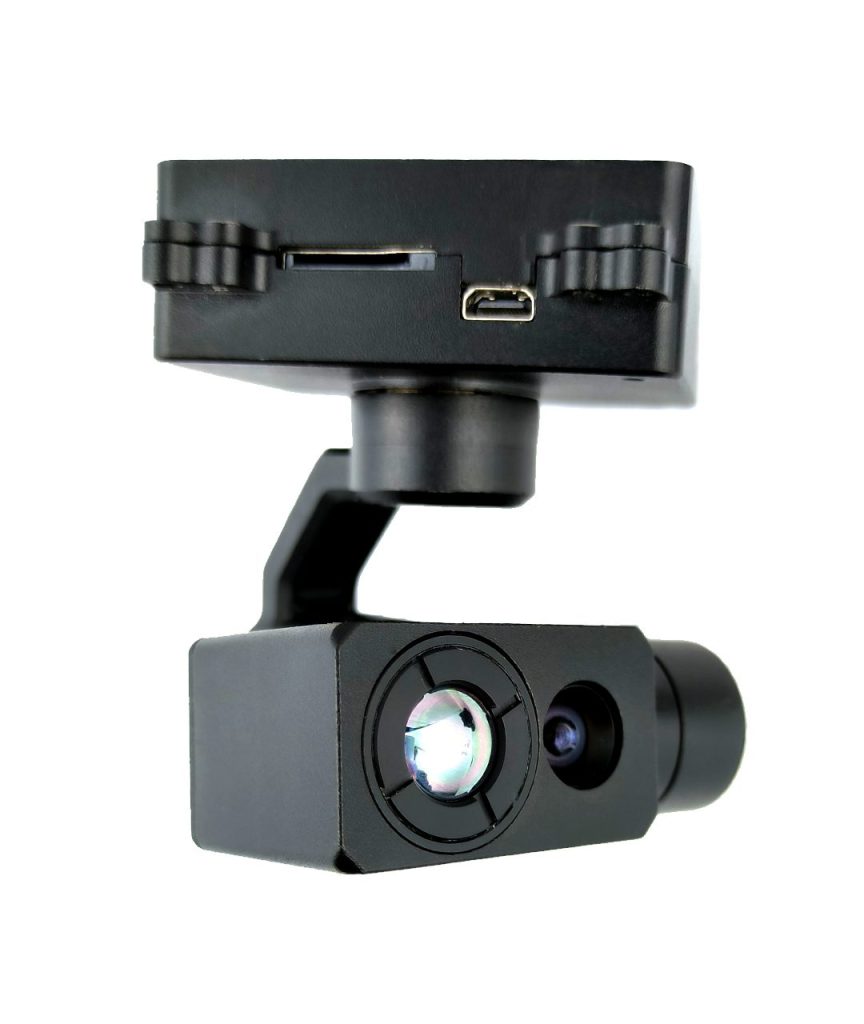

A lightweight drone payload that integrates a fixed-focus 1080p visible-light camera (≈4 MP) with a 640 × 512 thermal imager (≈9.1 mm lens), all mounted on a compact 3-axis PTZ gimbal. Weighing around 120 grams, it delivers impressive imaging and thermal capability for small UAVs.

---

🔍 Key Features

Visible-Light Camera

• Resolution: 1080p (~4 MP CMOS sensor)

• Lens: Fixed-focus (no optical zoom)

• Supports real-time autofocus (< 1 s for clarity)

• Perfect for live video surveillance and daytime imaging

Thermal Imaging Sensor

• Resolution: 640 × 512 VOx detector

• Lens: ~9.1 mm fixed focus (~45.8° × 37.3° field of view)

• Offers up to 9× digital zoom

• Features include pseudo-color palette selection, picture-in-picture, and global temperature measurement

---

🌀 Gimbal & Control

• Stabilization: Encoder-based FOC (Field-Oriented Control) provides smooth and accurate 3-axis motion

• Movement Range:

  • Roll: ±45°

  • Pitch: −30° to +90°

  • Yaw: ±150°

• Stability Accuracy: Pitch/Roll jitter within ±0.02°; yaw jitter within ±0.03°

• Supports adaptive panning/tilt speed based on zoom level, one-click restore to home, and preset position control

• Interfaces: IP (RTSP) streaming, UART, with optional SBUS/PWM support

---

✅ Use Cases

• Lightweight drone surveillance where both visible and thermal imaging are required

• Public safety, environmental monitoring, or wildlife observation

• Mounted missions on small UAVs where size, weight, and power constraints are critical

• Situations needing rapid image capture and temperature-based detection

Link

Product KHP335G609 link is here!
