Product Description

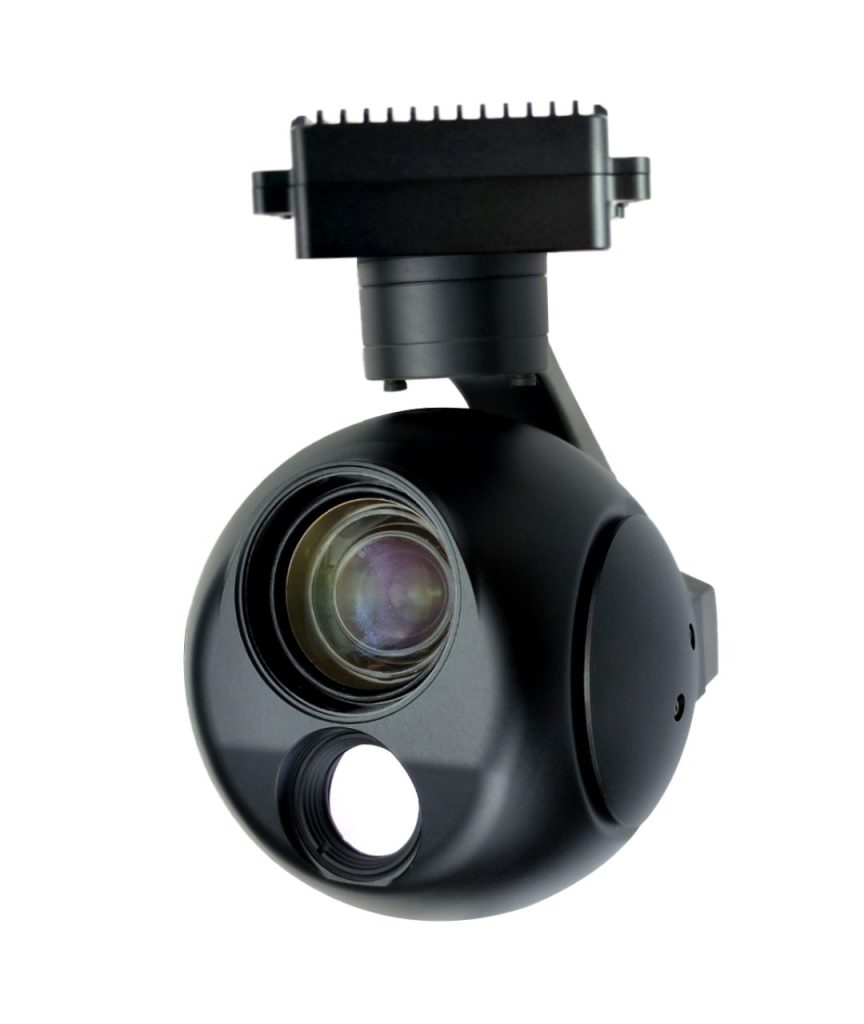

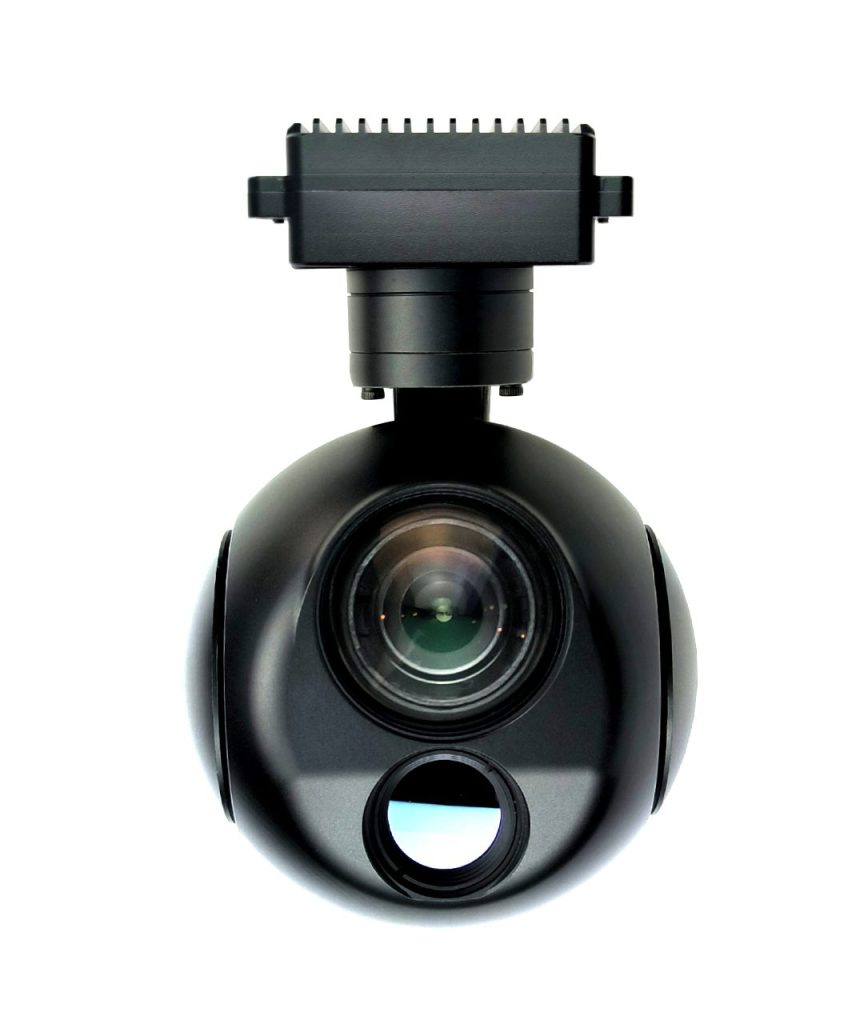

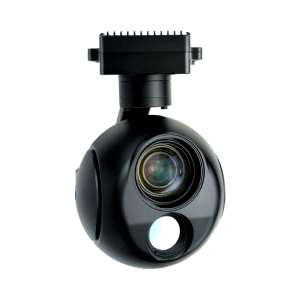

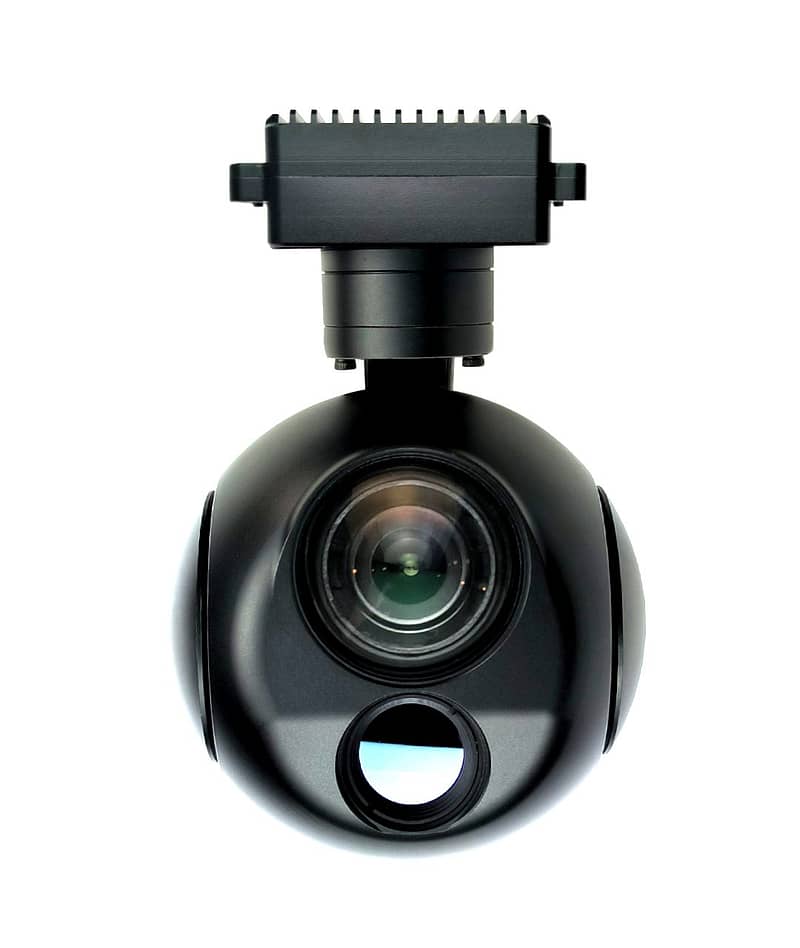

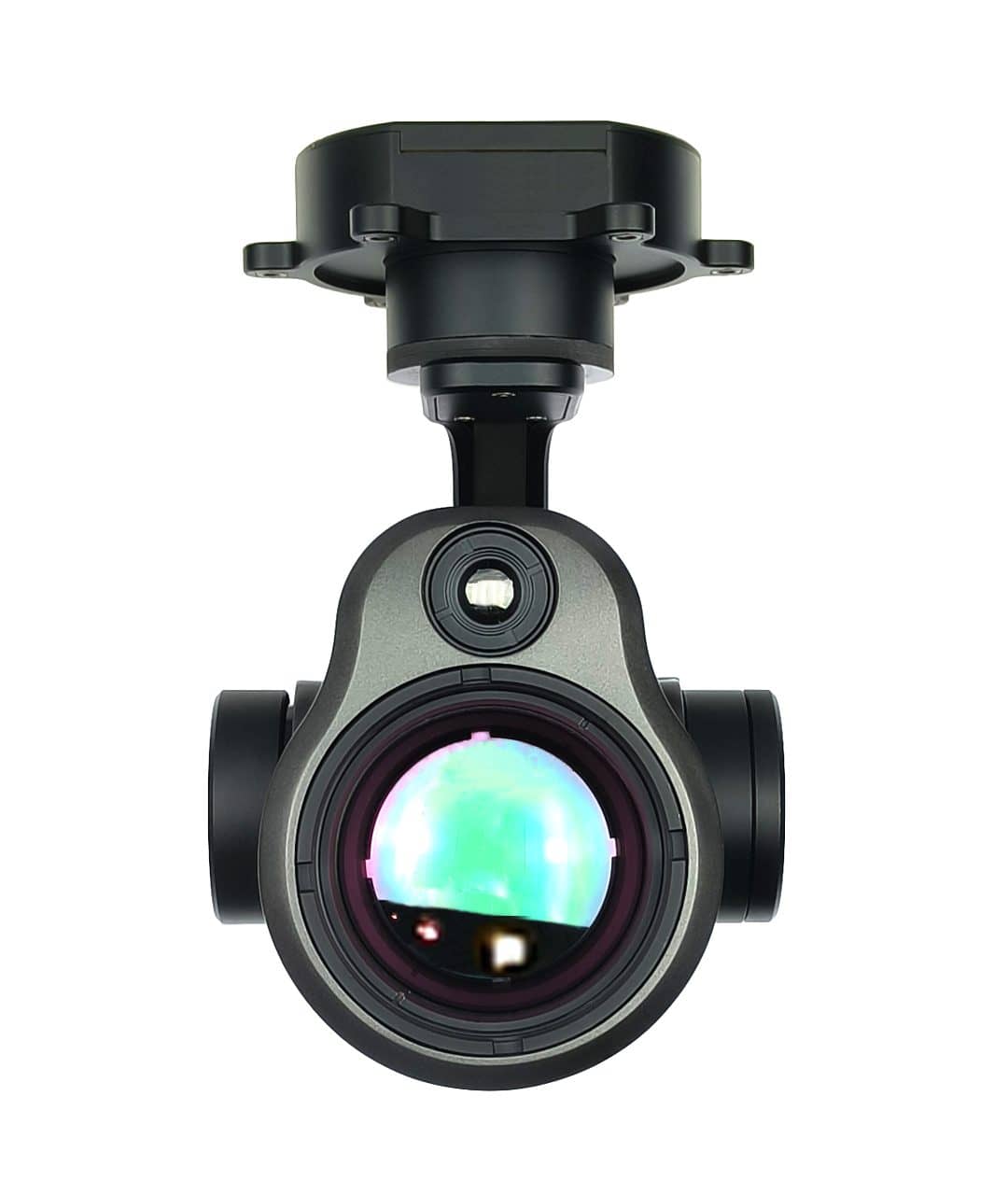

The DIY10G613 is a high-precision dual-sensor UAV payload integrating:

• Visible-light imaging: 10× optical zoom with additional 9× digital zoom (~90× hybrid), delivered via a 2 MP wide-dynamic-range CMOS sensor.
• Thermal imaging: 640×512 VOx sensor with a 13 mm thermal lens, also offering up to 9× digital zoom.
These two sensors are mounted on a 3-axis FOC (Field-Oriented Control) encoder-stabilized gimbal, offering stable performance in dynamic flight.

---

🔧 Key Features & Capabilities

Visible-Light Camera

• Optical zoom: 10×

• Hybrid zoom: ~90× total

• Fast autofocus (under 1 second)

• 1080p video output via IP (RTSP); optional HDMI

• Dual-channel TF card recording for both visible and thermal streams

• Field of view transitions from ~58° (wide) to ~3° (tele)

Thermal Imaging Module

• Fixed 13 mm lens, ~33°×26° field of view

• Up to 9× digital thermal zoom

• Picture-in-picture display, multiple pseudo-color modes

• Temperature readouts: point, area, global summary

Gimbal & Control System

• 3-axis encoder-controlled FOC stabilizer

• Motion range: Roll ±45°, Pitch −45° to +120°, continuous Yaw 360°

• Stabilization jitter: ±0.02° (pitch/roll), ±0.03° (yaw)

• Adaptive PTZ speed tied to zoom level, one-click return-to-home

• Control via IP/Ethernet or UART; optional SBUS/PWM compatibility

---

✅ Use Cases

• Drone-based surveillance, infrastructure inspection, and search & rescue

• Situations requiring high zoom resolution with thermal detection

• Missions demanding dual-stream capability, remote control, and AI tracking routines

Link

Product DIY10G613 link is here!

Form Factor

Attribute	Value	Description	Why It Matters
Height	10	Total standing height (cm)	Human-scale enables use of tools, navigation of spaces
Width	20	Shoulder-to-shoulder width (cm)	Affects balance, door/passage fit
Weight	52	Total mass (kg)	Impacts mobility, safety, power usage, transportability

Power System

Attribute	Value	Description	Why It Matters
Battery Type	Alkaline Battery	Li-ion / LiFePO4 / etc.	Determines energy density, safety
Battery Capacity		Wh or Ah	Impacts range and operating time
Operating Duration		Hours under normal load	Key for logistics, shift planning

Performance

Attribute	Value	Description	Why It Matters
Payload Capacity		Maximum carrying capacity (kg)	Determines real-world utility
Speed		Maximum operational speed	Task completion rate & productivity
Precision		Positioning accuracy (mm)	Quality of work & application suitability
Repeatability		Consistency of positioning (±mm)	Manufacturing quality & reliability
Cycle Time		Time per standard operation	Productivity & throughput calculations
MTBF		Mean Time Between Failures (hours)	Reliability & maintenance planning
Service Life		Expected operational lifespan (years)	ROI calculations & replacement planning

Connectivity

Attribute	Value	Description	Why It Matters
Communication Protocol		Wi-Fi / Ethernet / 5G / Bluetooth	Network integration capabilities
Remote Control		Web / App / Joystick / API	Needed for manual override or remote training
Programming Interface		Drag-drop / Code / Visual / Teach pendant	Ease of deployment and customization
Integration APIs		Available software interfaces	System integration capabilities
Cloud Connectivity		Cloud platform compatibility	Data analytics & remote monitoring
Security Features		Encryption & authentication methods	Cybersecurity compliance

Form Factor

Attribute	Value	Description	Why It Matters
Height	10	Total standing height (cm)	Human-scale enables use of tools, navigation of spaces
Width	20	Shoulder-to-shoulder width (cm)	Affects balance, door/passage fit
Weight	52	Total mass (kg)	Impacts mobility, safety, power usage, transportability

Power System

Attribute	Value	Description	Why It Matters
Battery Type	Alkaline Battery	Li-ion / LiFePO4 / etc.	Determines energy density, safety
Battery Capacity		Wh or Ah	Impacts range and operating time
Operating Duration		Hours under normal load	Key for logistics, shift planning

Performance

Attribute	Value	Description	Why It Matters
Payload Capacity		Maximum carrying capacity (kg)	Determines real-world utility
Speed		Maximum operational speed	Task completion rate & productivity
Precision		Positioning accuracy (mm)	Quality of work & application suitability
Repeatability		Consistency of positioning (±mm)	Manufacturing quality & reliability
Cycle Time		Time per standard operation	Productivity & throughput calculations
MTBF		Mean Time Between Failures (hours)	Reliability & maintenance planning
Service Life		Expected operational lifespan (years)	ROI calculations & replacement planning

Connectivity

Attribute	Value	Description	Why It Matters
Communication Protocol		Wi-Fi / Ethernet / 5G / Bluetooth	Network integration capabilities
Remote Control		Web / App / Joystick / API	Needed for manual override or remote training
Programming Interface		Drag-drop / Code / Visual / Teach pendant	Ease of deployment and customization
Integration APIs		Available software interfaces	System integration capabilities
Cloud Connectivity		Cloud platform compatibility	Data analytics & remote monitoring
Security Features		Encryption & authentication methods	Cybersecurity compliance
