Product Description

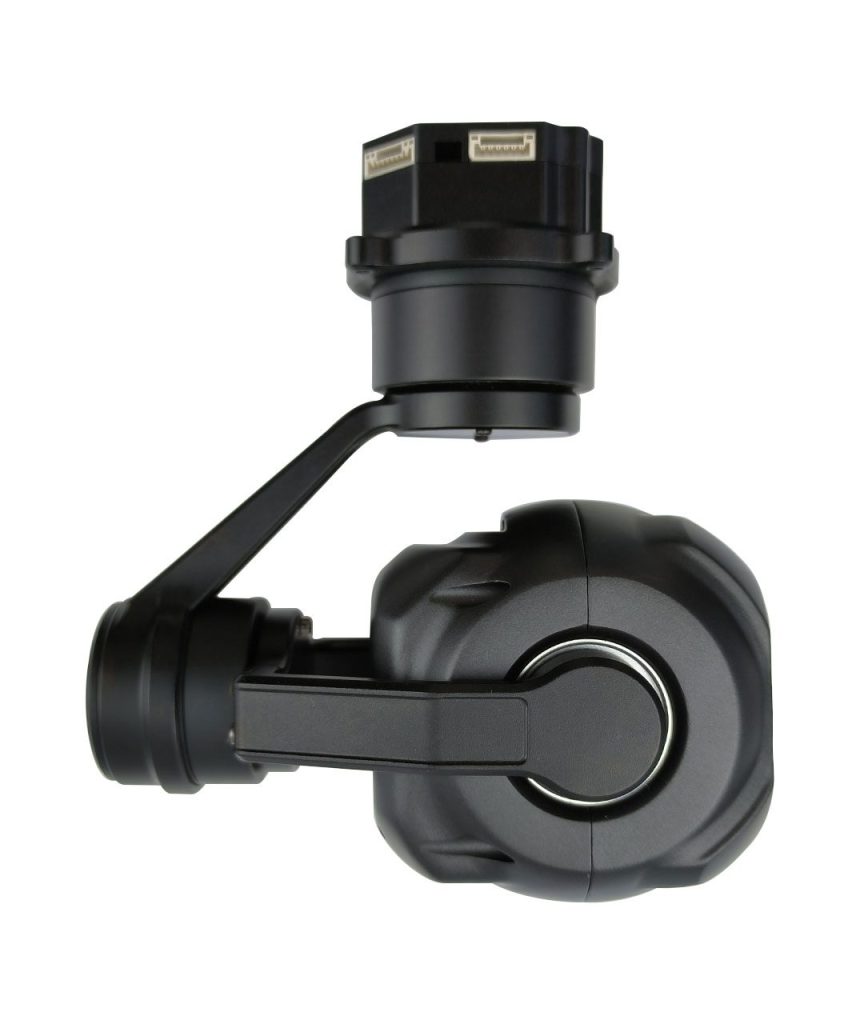

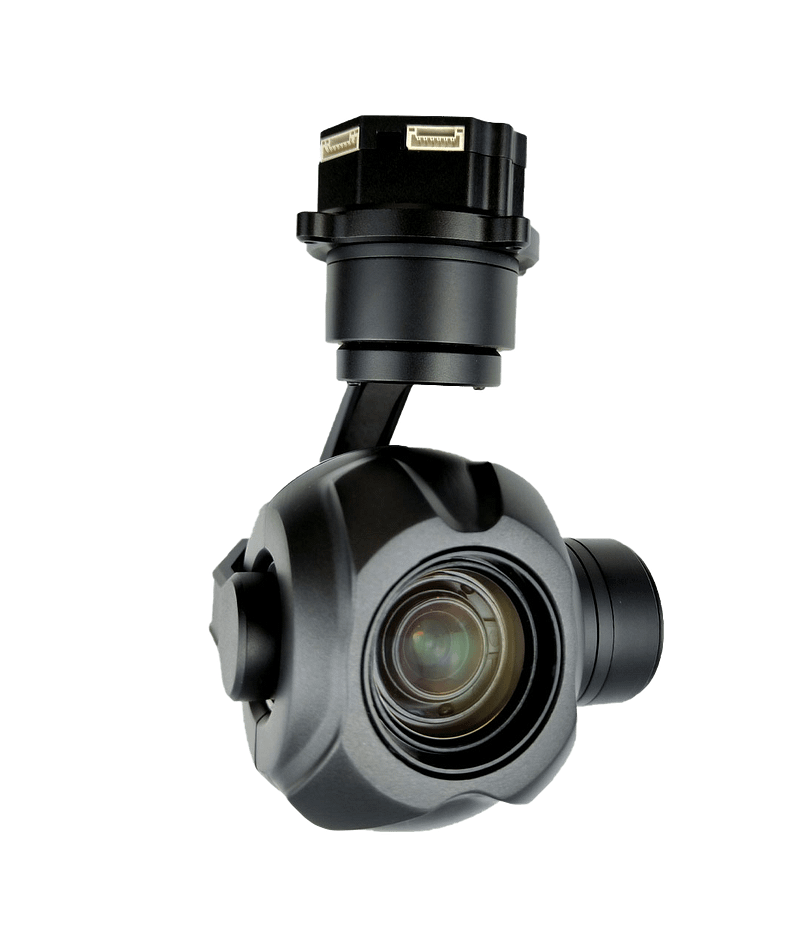

The KIY10S35 combines a 10× optical zoom lens with up to 9× digital zoom, delivering roughly 90× mixed zoom in a small, precision‑engineered 3‑axis stabilized gimbal optimized for UAV use. It features IP-based network video output via RTSP, onboard TF‑card recording, and fast autofocus—making it suited for aerial surveillance, inspections, and public safety deployments.

⚙️ Key Technical Specifications

• Sensor: 1/2.8″, 2‑megapixel wide‑dynamic CMOS

• Mixed Zoom: 10× optical + up to 9× digital (~90× total)

• Video Resolution: 1080p at 30 fps via RTSP; supports H.264/H.265 recording

• Focus Speed: Under 1 second (real-time autofocus)

• Streaming Latency: ~170 ms low-delay output via RTSP

• Gimbal Stabilization:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±280°

  • Pitch/Roll jitter: ±0.02°; horizontal jitter: ±0.03°

• Field of View (approximate):

  • Wide: Horizontal ~61.5°, Vertical ~35.0°, Diagonal ~69.5°

  • Tele: Horizontal ~7.0°, Vertical ~3.97°, Diagonal ~7.95°

• Control Interfaces: IP, SBUS, UART; optional PWM control

• Power Input: DC 12–26 V; power consumption approx. 5 W

• Dimensions: Diameter ~148 mm, Height ~132 mm

• Weight: ~360 g (excluding dampers) ±10 g

• Operating Conditions: −10 °C to +55 °C; 20–80% RH; storage to −20 °C to +60 °C, 95% RH max

✅ Use Case

This unit is well‑suited for lightweight drone installations where mobility, swift targeting, and high zoom range are key. Common deployments include aerial monitoring, security operations, infrastructure inspection, and law enforcement missions where detailed visual observation is required.
