Product Description

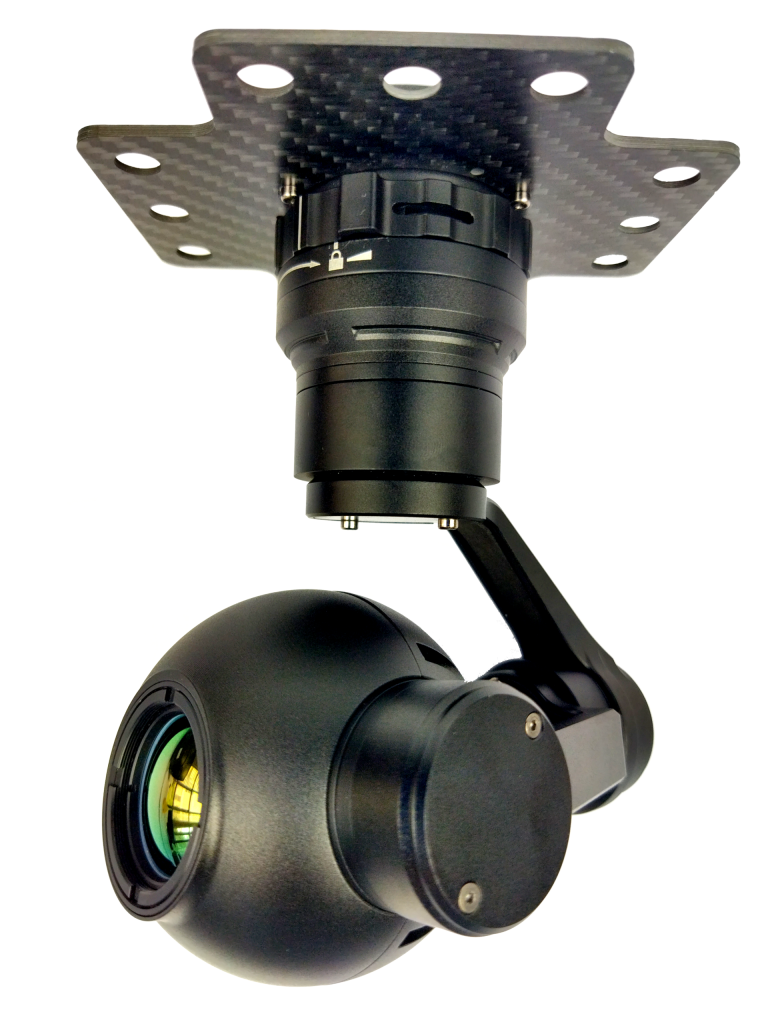

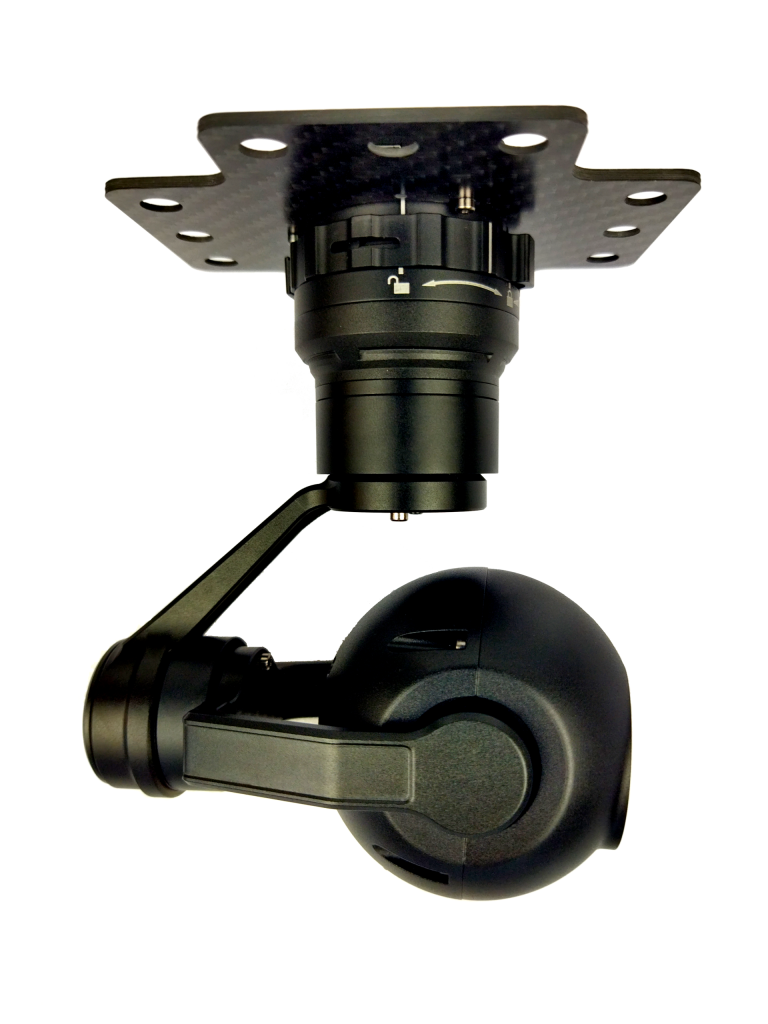

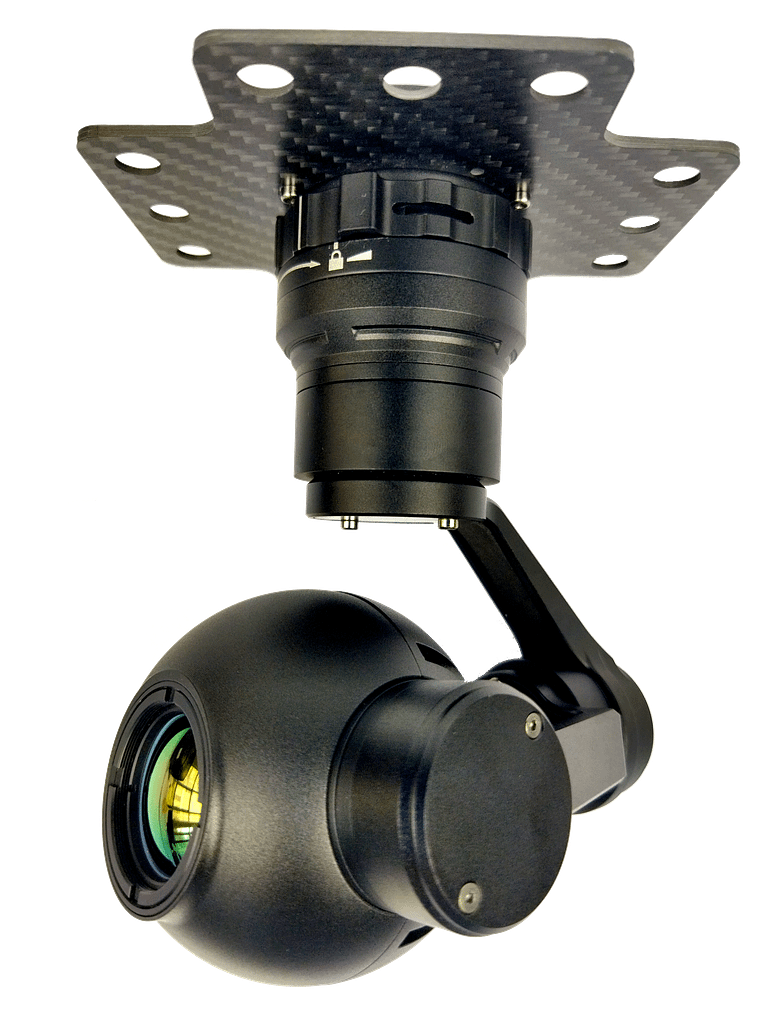

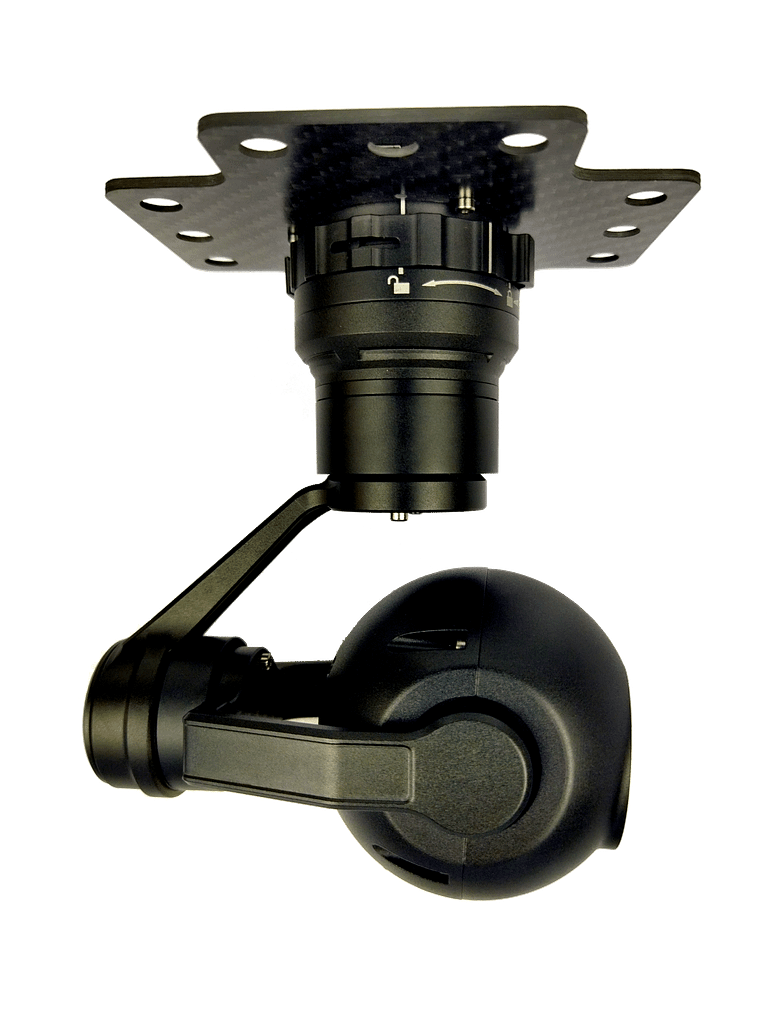

The KIP640G25 is a professional thermal imaging payload developed by TOPOTEK, featuring a 640×512 resolution uncooled infrared detector paired with a 25 mm fixed-focus lens and mounted on a 3-axis stabilized gimbal. It is designed for integration with drones for precise thermal monitoring and surveillance.

⚙️ Key Specifications

Thermal Module

• Sensor Resolution: 640×512 pixels

• Detector Type: Uncooled VOx microbolometer

• Pixel Size: 12 µm

• Spectral Range: 8 to 14 µm

• Thermal Sensitivity (NETD): ≤ 50 mK @ F/1.0

• Lens Focal Length: 25 mm

• Field of View: Approx. 17.5° horizontal × 14.0° vertical

• Digital Zoom: Up to 9×

• Temperature Measurement: Supports point and area-based readings, with min/max detection

• Color Palettes: Multiple pseudo-color options and adjustable contrast

Gimbal System

• Stabilization: 3-axis brushless gimbal with encoder motors

• Control Accuracy:

  • Pitch: ±0.02°

  • Roll: ±0.02°

  • Yaw: ±0.03°

• Rotation Ranges:

  • Pitch: −45° to +120°

  • Yaw: ±280°

  • Roll: ±45°

• Gimbal Modes: Lock, Follow, Home Return, Angle Preset

• Control Interfaces: PWM, SBUS, UART, UDP

Video and Storage

• Output Format: RTSP video stream via Ethernet

• Local Storage: TF card recording supported

• Video Latency: Approx. 170 milliseconds

Power and Dimensions

• Power Input: Compatible with 3S or 6S battery

• Power Consumption: Approximately 6 watts

• Weight: Around 380 grams

• Operating Temperature: −20 °C to +60 °C

• Storage Temperature: −40 °C to +70 °C

• Humidity Resistance: 20%–80% operating, up to 95% storage

✅ Use Case

• Aerial thermal inspection and diagnostics

• Industrial asset monitoring (e.g., pipelines, power lines)

• Search and rescue operations

• Fire detection and monitoring

• Wildlife observation and tracking
