Product Description

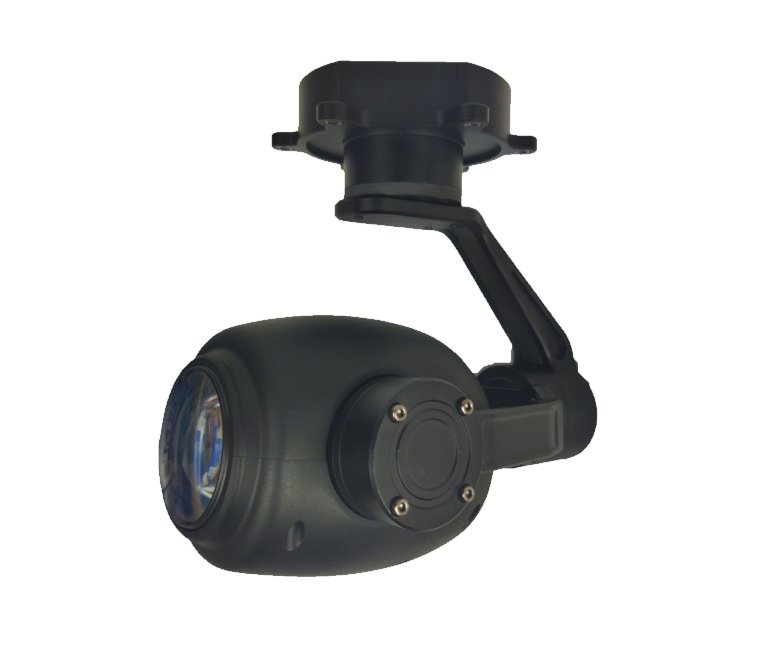

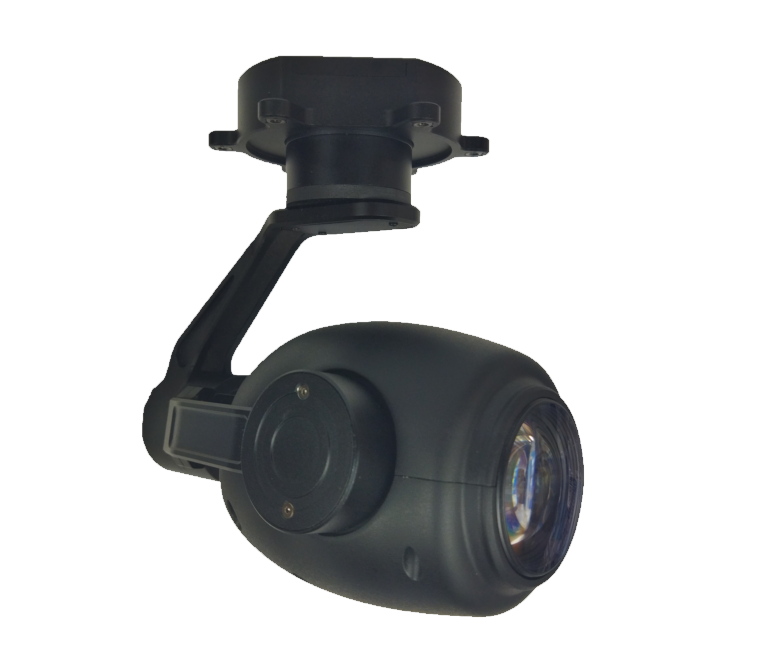

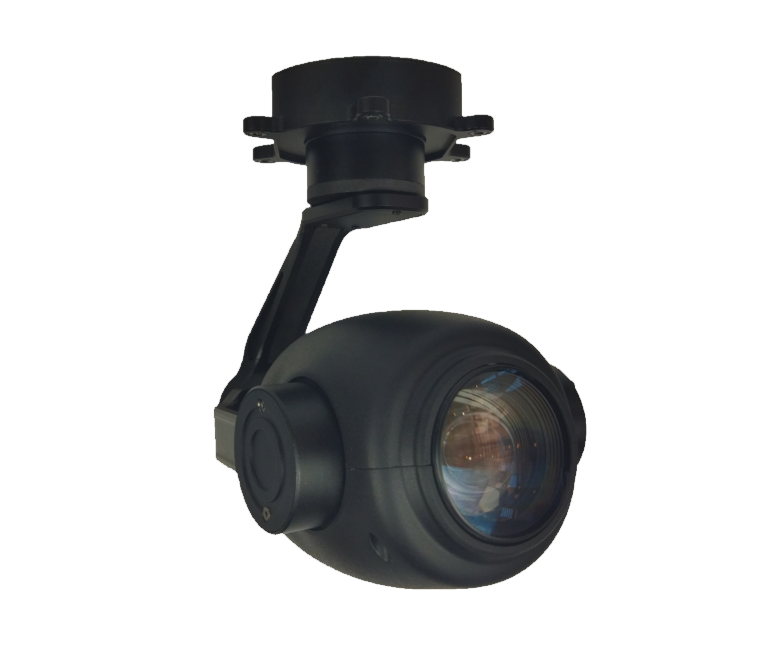

The KIP30S90 is a high-performance single-lens gimbal camera designed for drone payload applications. It supports 30× optical zoom, stabilized via a 3-axis PTZ gimbal, and offers network video output via IP streaming (RTSP). It’s widely used for aerial surveillance, inspection, and search‑and‑rescue tasks where zoom and stabilization are critical.

⚙️ Key Specifications

• Sensor: 2‑megapixel wide‑dynamic CMOS (1/2.8″)

• Zoom: 30× optical; typical digital zoom not specified (focuses on optical range)

• Resolution: 1080p at 30 fps via RTSP stream and onboard TF‑card storage

• Output: RTSP IP network stream; supports control and live view via ground station software

• Gimbal Stabilization: 3-axis FOC-controlled PTZ featuring:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±280° (±280° horizontal range)

  • Pitch & Roll jitter: ±0.02°

  • Horizontal jitter: ±0.03°

  • One‑click restore to home position

  • Adaptive PTZ speed based on zoom state

• Focus Speed: Under 1 second for rapid focus

• Latency: Low-delay streaming (approx. ~170 ms)

• Dimensions & Weight: Approximately 80 × 112 × 130 mm; around 396 g (unit without dampers)

• Power: Compatible with 3S or 6S drone battery configurations; power consumption roughly 5 W

• Operating Conditions:

  • Temperature: −10 °C to +45 °C

  • Humidity: 20%–80% RH (non-condensing)

  • Storage: Up to −20 °C to +60 °C with 95% RH tolerance

✅ Use Case

This model is ideal for drone operations that require a compact, lightweight gimbal camera with extended optical zoom and secure IP output. It is well-suited for industries like infrastructure inspection, environmental monitoring, security surveillance, or law enforcement, where reliable zoom and stable imagery are essential.
