Product Description

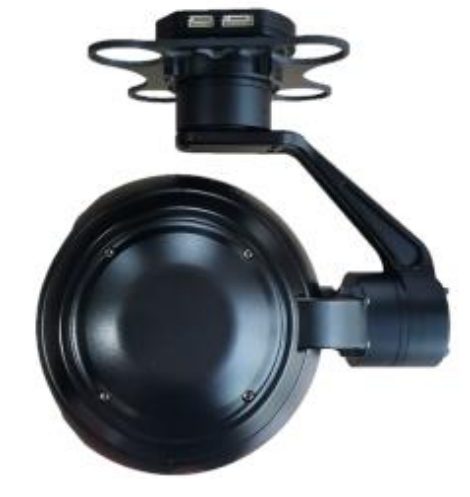

A compact, high-performance drone payload that combines a 30× optical zoom 4K visible-light camera with a 640×512 thermal module featuring a 19 mm lens. Mounted on a precision 3-axis FOC-stabilized gimbal, this system delivers detailed imagery and thermal detection in a lightweight and low-power form.

🔍 Core Features

Visible-Light Camera

• Sensor: 8 MP (1/2.8″ CMOS)

• Optical Zoom: 30× (approx. 4.5–135 mm focal)

• Supports 4K and 1080p video output via RTSP

• Fast autofocus (<1 second)

• Field of View:

  • Wide: approximate 67.8° diagonal, 59.8° horizontal, 40.5° vertical

  • Tele: approx. 2.77° diagonal, 2.34° horizontal, 1.48° vertical

Thermal Imaging Module

• Resolution: 640×512 VOx detector with baffle

• Lens: 19 mm fixed focal

• Supports thermal digital zoom (up to ~9×)

• Multiple pseudo-color palettes and picture-in-picture display

• Integrated temperature measurement options and overlay control

🌀 Gimbal & Motion Control

• 3-axis encoder-driven FOC stabilization ensuring smooth imagery

• Movement range:

  • Roll: ±45°

  • Pitch: −45° to +135°

  • Yaw: continuous 360° rotation

• Stability jitter: ±0.02° for pitch/roll and ±0.03° for yaw

• Includes adaptive zoom speed control and one-click "home" position

• Synchronized control of thermal, visual, and PTZ via IP or serial interface

⚡ Power, Size & Interfaces

• Power input: DC 3S to 6S battery (11–26 V DC), ~10 W typical

• Output: IP (RTSP) streaming, HDMI optional, supports dual TF-card recording

• Weight: Approximately 655 g (±10 g, excluding mount)

• Dimensions: ~140 × 162 × 144 mm

• Designed for compact UAVs with efficient form factor

✅ Use Cases

• Long-range aerial surveillance requiring high-resolution visible and thermal imagery

• Infrastructure inspection such as solar farms, pipelines, and power lines

• Search and rescue, firefighting, and law enforcement applications

• Situations needing compact, low-latency, dual-light payload with synchronized PTZ control
