Product Description

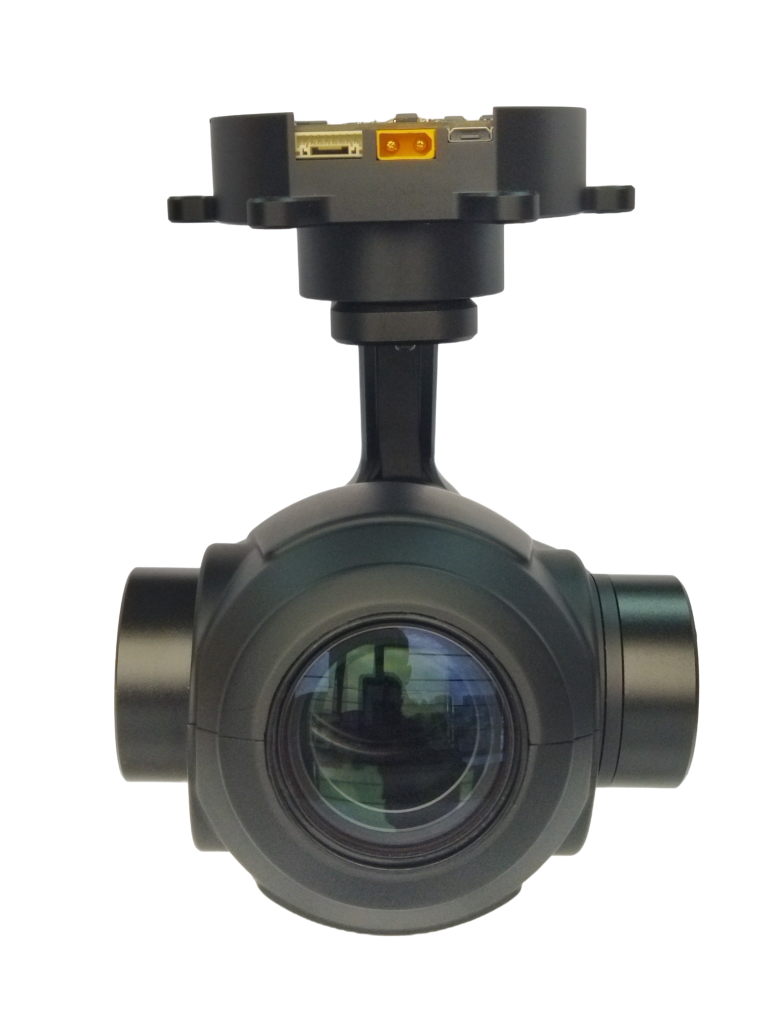

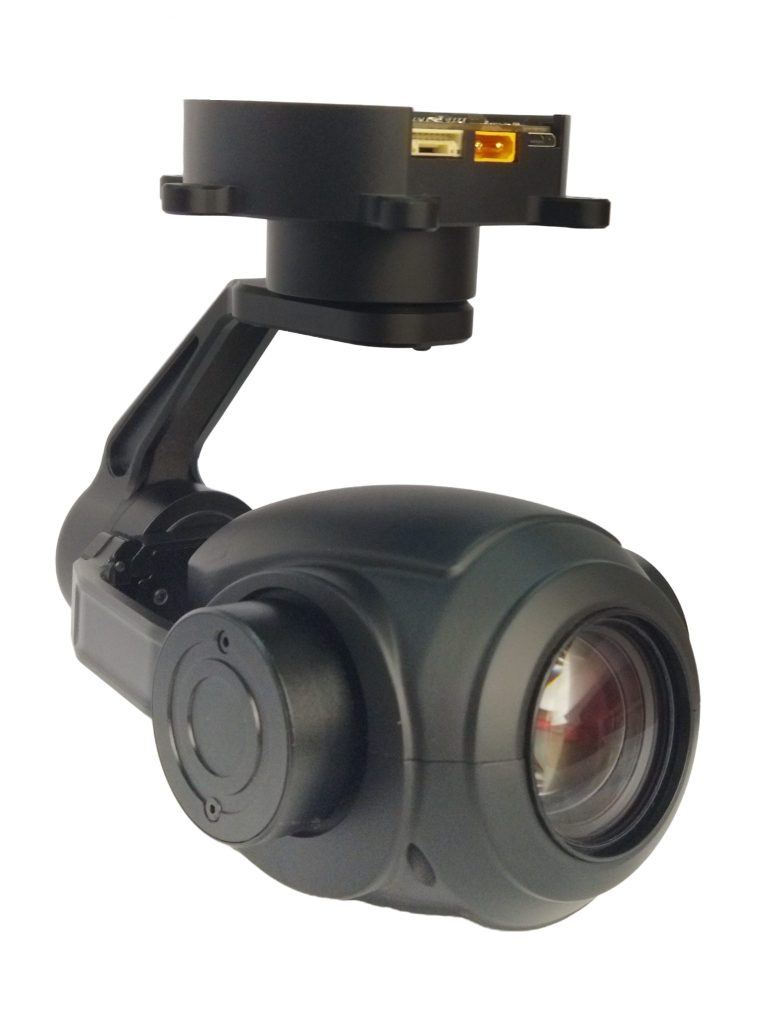

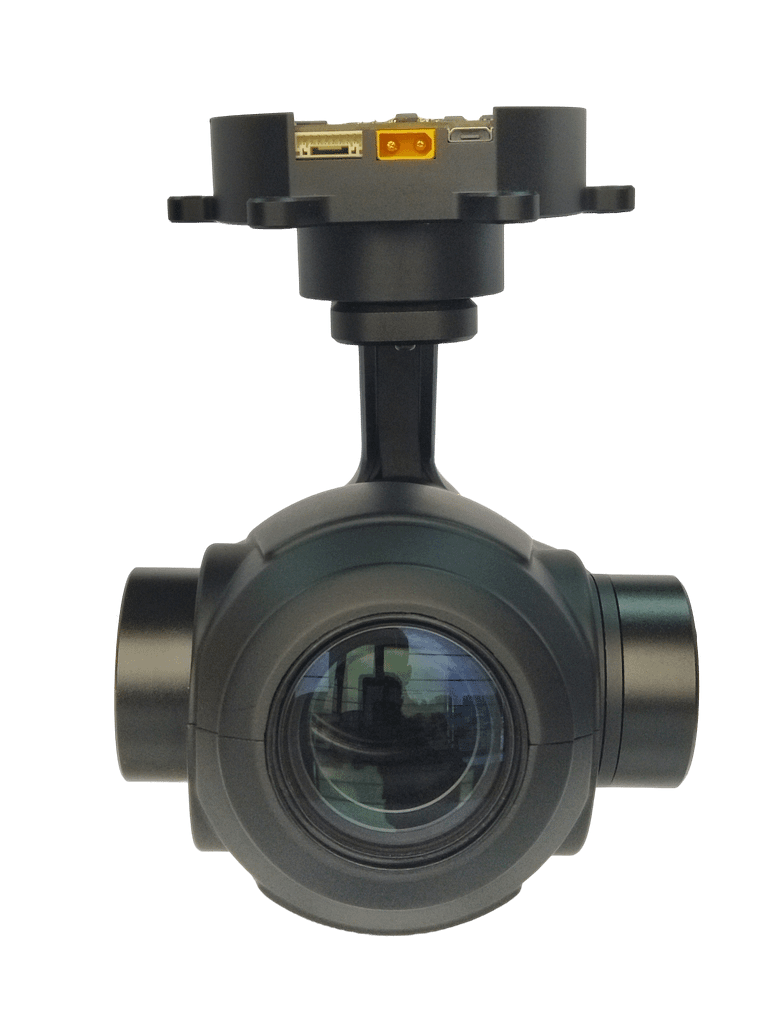

The KIP30S4K is a high-resolution aerial camera integrated with a 30× optical zoom lens and stabilizing 3-axis PTZ gimbal. Designed for professional UAV applications, it delivers crystal-clear 4K video and real‑time network streaming via IP.

⚙️ Key Features & Specs

• Sensor: 1/2.8″, 8‑megapixel CMOS

• Zoom: 30× optical (f≈4.5 mm to 135 mm), optional digital zoom not specified

• Video Resolution: 4K at 30 fps and 1080p, streaming via RTSP

• Local Storage: TF card support with H.264 recording in both 4K and 1080p

• Autofocus: Fast, under 1 second

• Streaming Latency: Approximately 170 ms

• Gimbal Movement:

  • Roll: −85° to +85°

  • Pitch: −45° to +135°

  • Yaw: 360° continuous rotation

• Stabilization Precision:

  • Pitch/Roll jitter: ±0.02°

  • Horizontal yaw jitter: ±0.03°

• Adaptive PTZ Speed: Slower response at high zoom; faster at wide angles

• One-Click Return: Instant restore to home position

• Field of View (FOV):

  • Diagonal: ~67.8° (wide) to ~2.8° (tele)

  • Horizontal: ~59.8° to ~2.34°

  • Vertical: ~40.5° to ~1.48°

• Physical Dimensions: ~140 × 162 × 144 mm

• Weight: ~655 g (±10 g, without damping mount)

• Power Supply: 3S or 6S Li‑Po UAV battery, approx. 10 W

• Operating Ambient Conditions:

  • Temperature: −10 °C to +55 °C

  • Humidity: 20%–80% RH

• Storage Conditions:

  • Temperature: −20 °C to +60 °C

  • Humidity: up to 95% RH non‑condensing

✅ Use Case

This camera is ideal for high-precision aerial surveillance, infrastructure inspection, security applications, and cinematography. It pairs well with drones where a stable, high-zoom, low-latency imaging setup is required, while keeping size, weight, and power consumption at manageable levels.
