Product Description

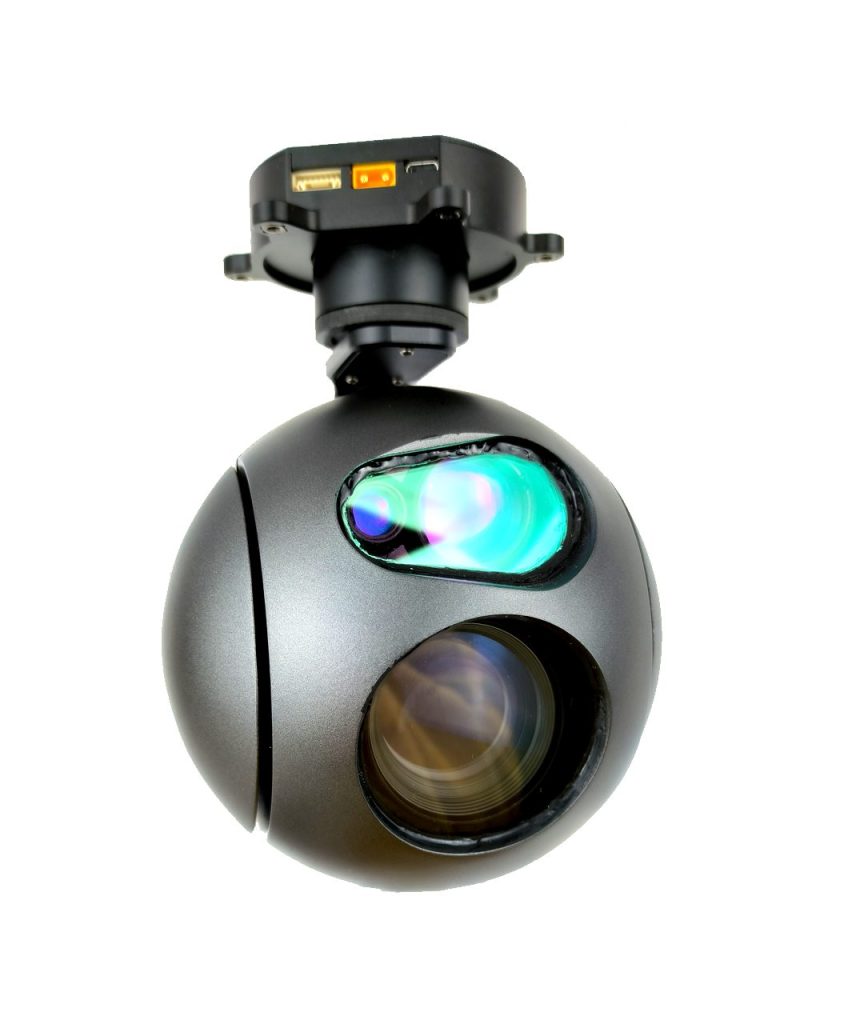

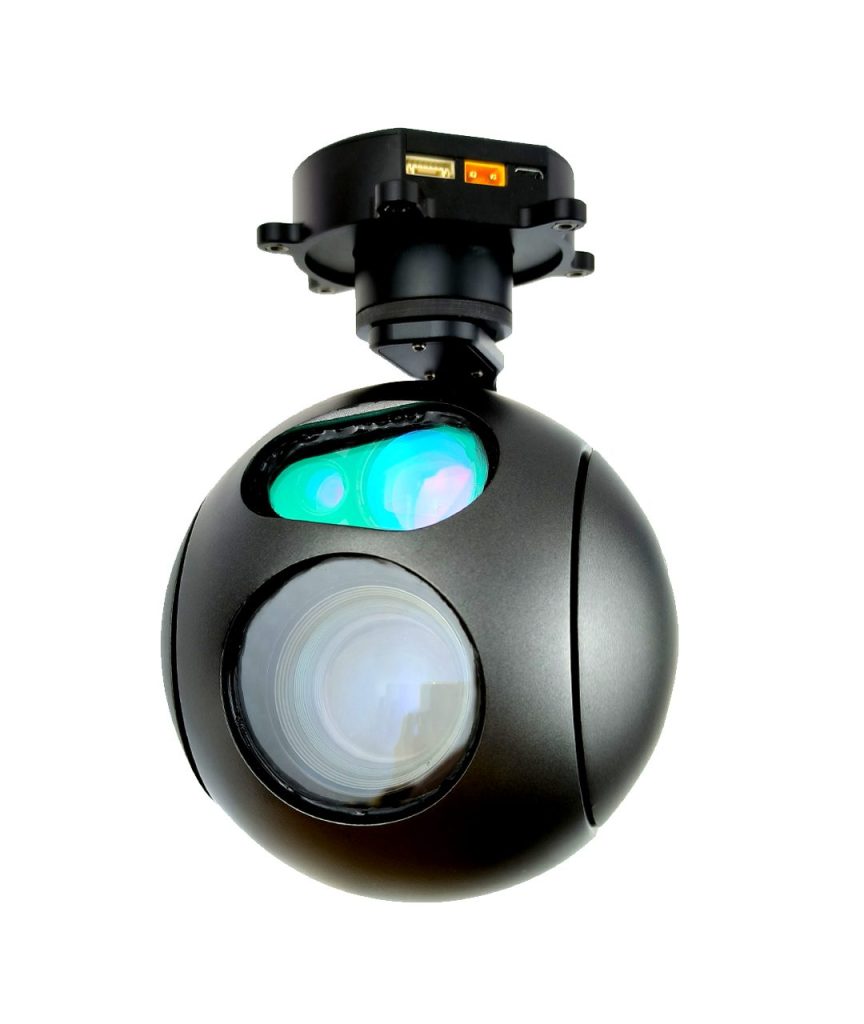

The KIP30L30A integrates a 30× optical zoom visible-light camera with 9× digital zoom (≈270× mixed zoom), and a laser rangefinder capable of up to 3,000 meters, all mounted on a precision-engineered 3-axis stabilized PTZ gimbal. It's designed for UAV surveillance, mapping, inspection, and targeting applications.

🔍 Key Features & Capabilities

• Visible-Light Camera

  • 2 MP HD CMOS sensor

  • 30× optical zoom lens (focusing at ~4.5 mm to ~135 mm)

  • Up to 270× mixed zoom with digital extension

  • Real-time autofocus (< 1 second)

  • Video output: 1080p @30 fps via RTSP or HDMI

  • Dual-channel recording to onboard TF card

• Laser Rangefinder (LRF)

  • Eye-safe 1535 nm laser (Class 1)

  • Measurement range: 20 m to 3,000 m

  • Accuracy within ±2 meters; resolution ~20 m

  • Integrated into system control interface

• Gimbal Stabilization

  • High-precision 3-axis FOC encoder drive

  • Movement range:

    • Roll: ±45°

    • Pitch: −45° to +120°

    • Yaw: continuous 360°

  • Stabilization jitter: ≤ ±0.02° (pitch/roll); ≤ ±0.03° (yaw)

  • Features include adaptive zoom-based speed, one-click “home,” and PTZ presets

• Connectivity & Control

  • Interfaces supported: IP (RTSP), UART, SBUS, PWM

  • Rangefinder data output via serial interface

  • Ground station compatible with combined camera, zoom, and rangefinder control

✅ Use Cases

• Long-range aerial surveillance with zoom and distance estimation

• Infrastructure inspection (e.g. power lines, pipelines) with targeting support

• Search and rescue, law enforcement, and industrial monitoring

• Mapping and reconnaissance where both precise zoom and ranging are critical
