Product Description

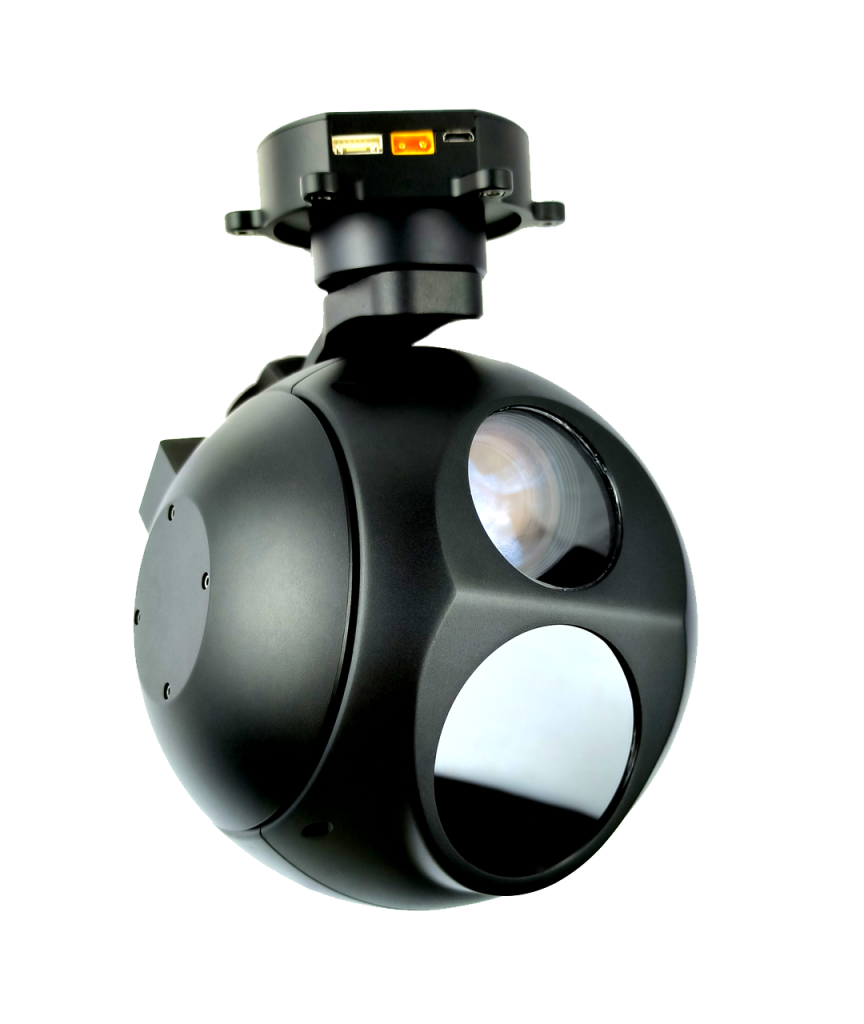

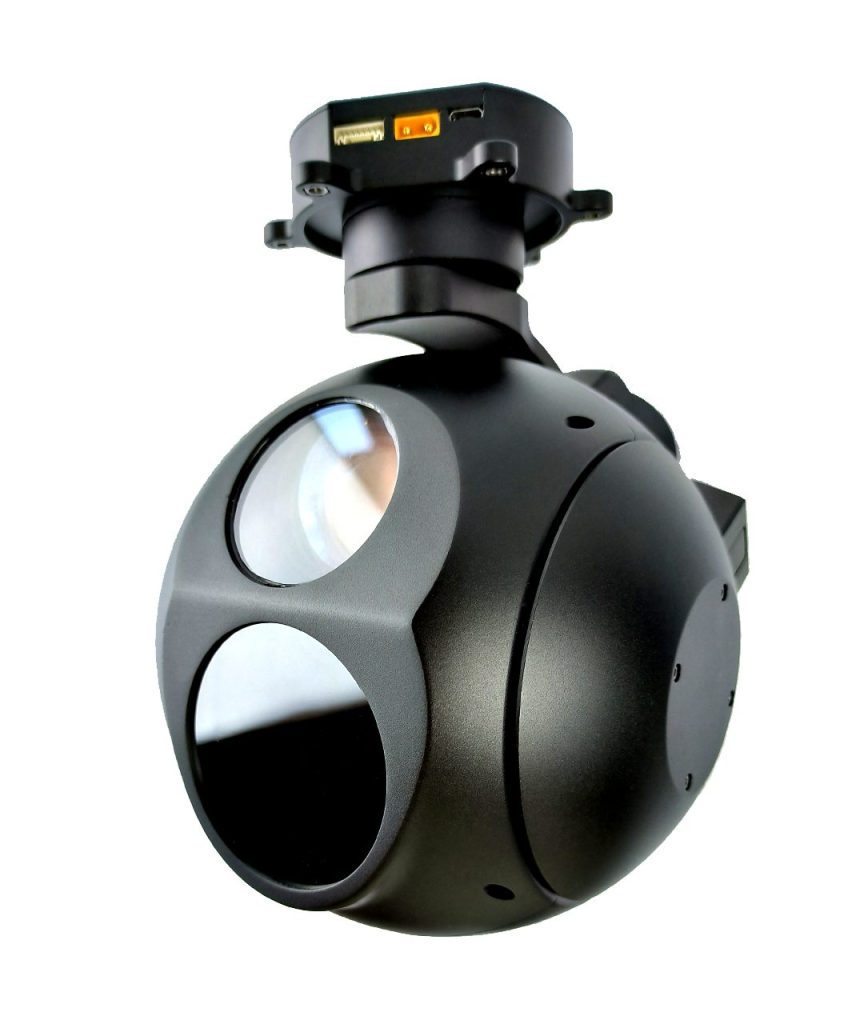

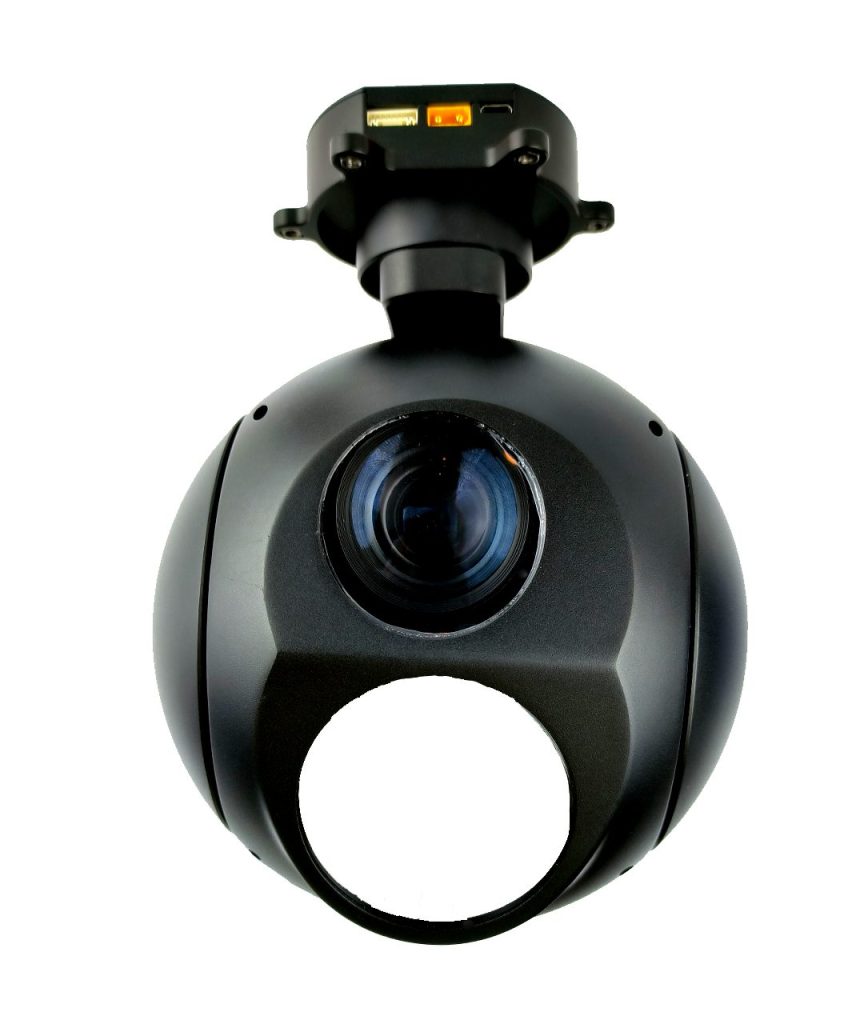

A rugged dual-light gimbal payload integrating a 30× optical zoom visible camera and a 640×512 thermal imager with a 50 mm lens. This high-precision system delivers both visual and infrared imaging through a stabilized 3-axis FOC (Field-Oriented Control) gimbal optimized for UAV and aerial surveillance tasks.

🔍 Core Features

Visible-Light Channel

• Sensor: 1/2.8″ CMOS, ~2 megapixels, low-light capable

• Zoom: 30× optical (≈ 4.5 mm–135 mm focal range) with real-time autofocus (<1 s)

• Field of View (approx):

  • Wide: diagonal ~67.8°, horizontal ~59.8°, vertical ~40.5°

  • Tele: diagonal ~2.77°, horizontal ~2.34°, vertical ~1.48°

• Output: 1080p @ 30 fps via RTSP; supports TF-card local recording

• Features: Live PIP (visible + thermal), visible imaging capture

Thermal Module

• Resolution: 640 × 512 pixels; detector output up to 800 × 600 pixels

• Lens: 50 mm fixed focal length

• Sensitivity: NETD ≤ 40 mK at F/1.0

• Field of View: ~12.4° × 9.9°

• Capabilities: Temperature measurement, multiple pseudo-color palettes, PIP thermal/visible switching

⚙️ Gimbal & Control

• Stabilization: Encoder-based FOC motor control on roll, pitch, and continuous yaw (360°)

• Motion Limits & Accuracy:

  • Roll: ±45°; Pitch: −50° to +135°; Yaw: ±360°

  • Stabilization jitter: ±0.02° (roll/pitch), ±0.03° (yaw)

• Features: One-click home return; adaptive PTZ speed modulated by zoom level

• Control Interfaces: Ethernet/IP, serial/UART; optional SBUS or PWM support

🔋 Power & Environmental Specs

• Power Input: 3S or 6S LiPo battery (11–26 V DC)

• Consumption: Approx. 7.5 W under typical operation

• Operating Conditions: −10 °C to +45 °C; 20–80% RH

• Storage Conditions: −20 °C to +60 °C; up to 95% non-condensing RH

• Dimensions: ~202 × 142 × 178 mm

• Weight: Approx. 1,740 g (±20 g)

✅ Best Uses

• Long-range aerial surveillance combining visual and thermal imagery

• Infrastructure inspection (e.g., power lines, pipelines)

• Search & rescue, public safety, and border patrol missions

• Temperature anomaly detection and target verification via thermal ops
