Product Description

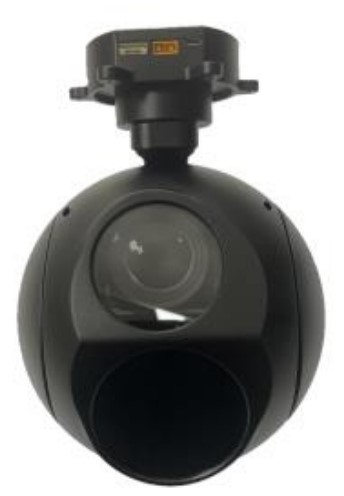

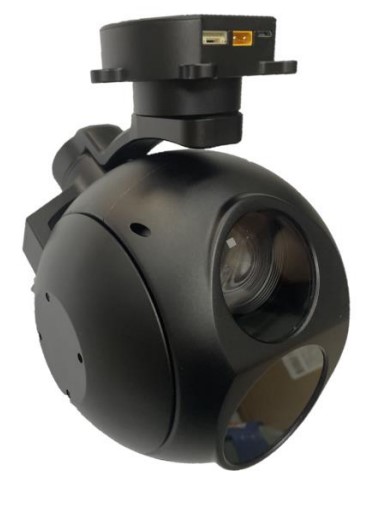

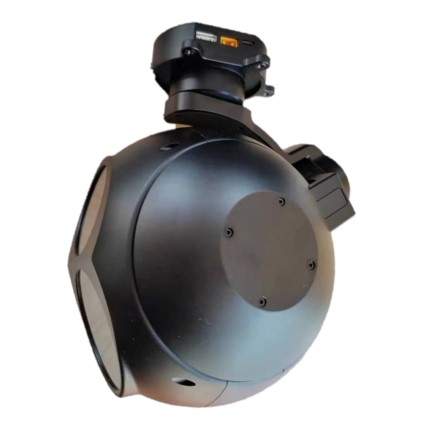

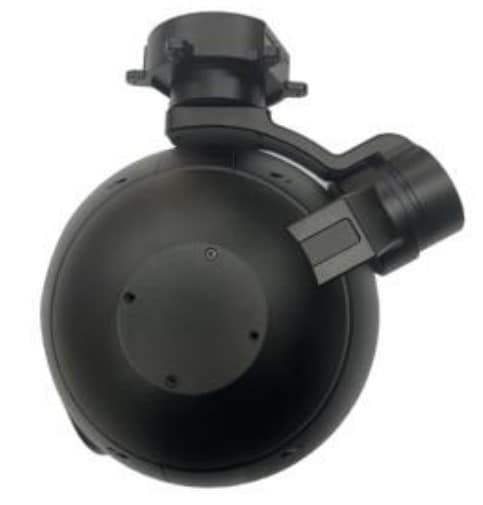

The KIP30G635 is a precision dual-light gimbal payload combining a 30× optical zoom visible-light camera and a 640×512 thermal imager with a 35 mm infrared lens, all mounted on a high-stability 3-axis FOC (Field‑Oriented Control) gimbal. Designed for UAV-based photography, inspection, surveillance, and search-and-rescue operations, it delivers high-quality imaging in both daylight and thermal conditions.

🔍 Key Features

Visible-Light Module

• Sensor: 1/2.8″ CMOS, approx. 2 MP

• Zoom: 30× optical (4.5 mm–135 mm focal length)

• Resolution: Up to 1080p Full HD

• Field of View:

  • Wide: ~67.8° diagonal (~59.8° horizontal × ~40.5° vertical)

  • Telephoto: ~2.77° diagonal (~2.34° horizontal × ~1.48° vertical)

• Autofocus: Rapid targeting in under 1 second

• Performance: Smooth video transmission and PIP switching with thermal view

Thermal Module

• Resolution: 640 × 512 VOx thermal sensor

• Lens: Fixed 35 mm infrared lens

• NETD: ≤ 50 mK sensitivity

• Field of View: ~32.9° × 26.6°

• Functions: Temperature point and area measurement, pseudo-color palettes, thermal/visual overlay

⚙️ Gimbal & Stabilization

• Type: 3-axis FOC encoder-controlled gimbal

• Stabilization Accuracy:

  • Pitch/Roll: ±0.02°

  • Yaw: ±0.03°

• Range of Motion:

  • Roll: ±45°

  • Pitch: −45° to +135°

  • Yaw: 360° continuous rotation

• Smart Functions: Adaptive zoom-based speed, one-click return, mode switching

🔌 Control & Connectivity

• Interfaces: Ethernet/IP (RTSP), UART, SBUS, PWM

• Video Modes: Picture-in-picture, dual-stream, pseudo-color overlays

• Storage: TF card recording for both visible and thermal video

• Streaming Latency: Approx. 170 ms

⚡ Power & Dimensions

• Input Voltage: 11–26 V DC (supports 3S–6S UAV power systems)

• Power Consumption: ~7.5 W

• Weight: Approx. 980 g

• Size: ~114 mm × 154 mm × 169 mm

✅ Use Case

• Long-range aerial inspection with real-time dual imaging

• Surveillance and perimeter security

• Infrastructure monitoring: power lines, pipelines, telecom towers

• Nighttime missions and search-and-rescue using thermal vision
