Product Description

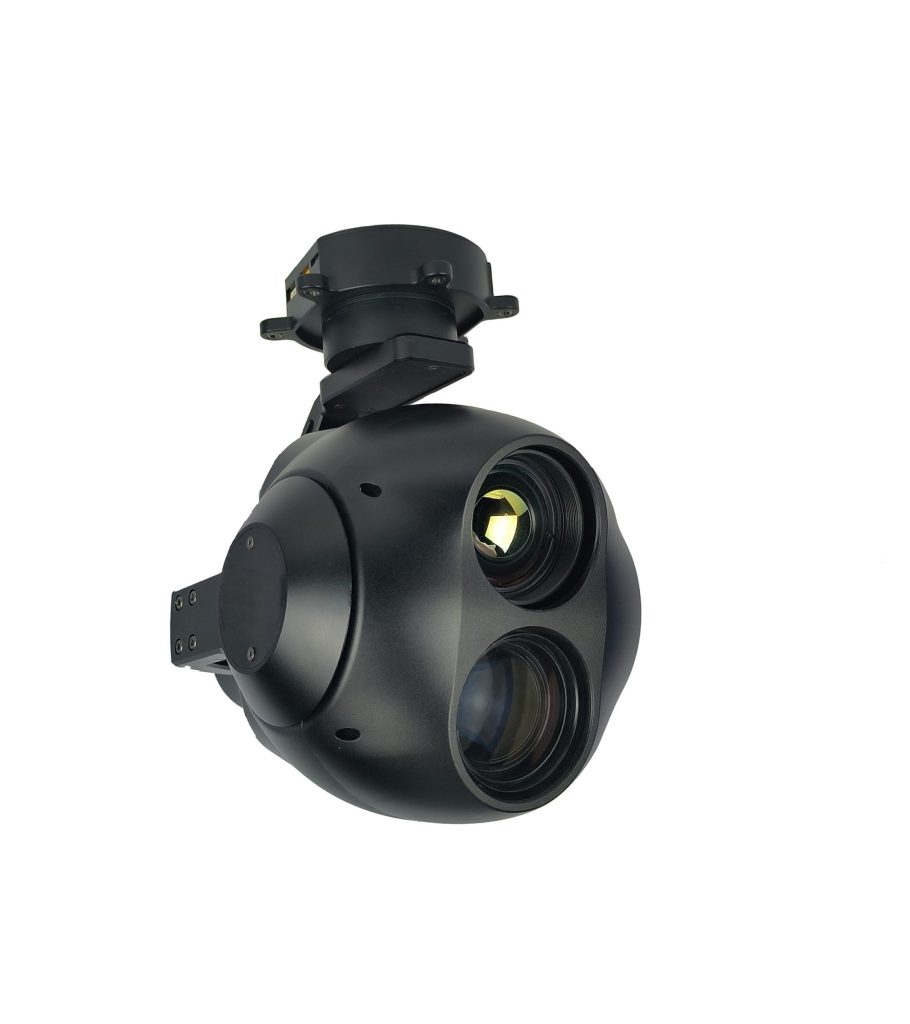

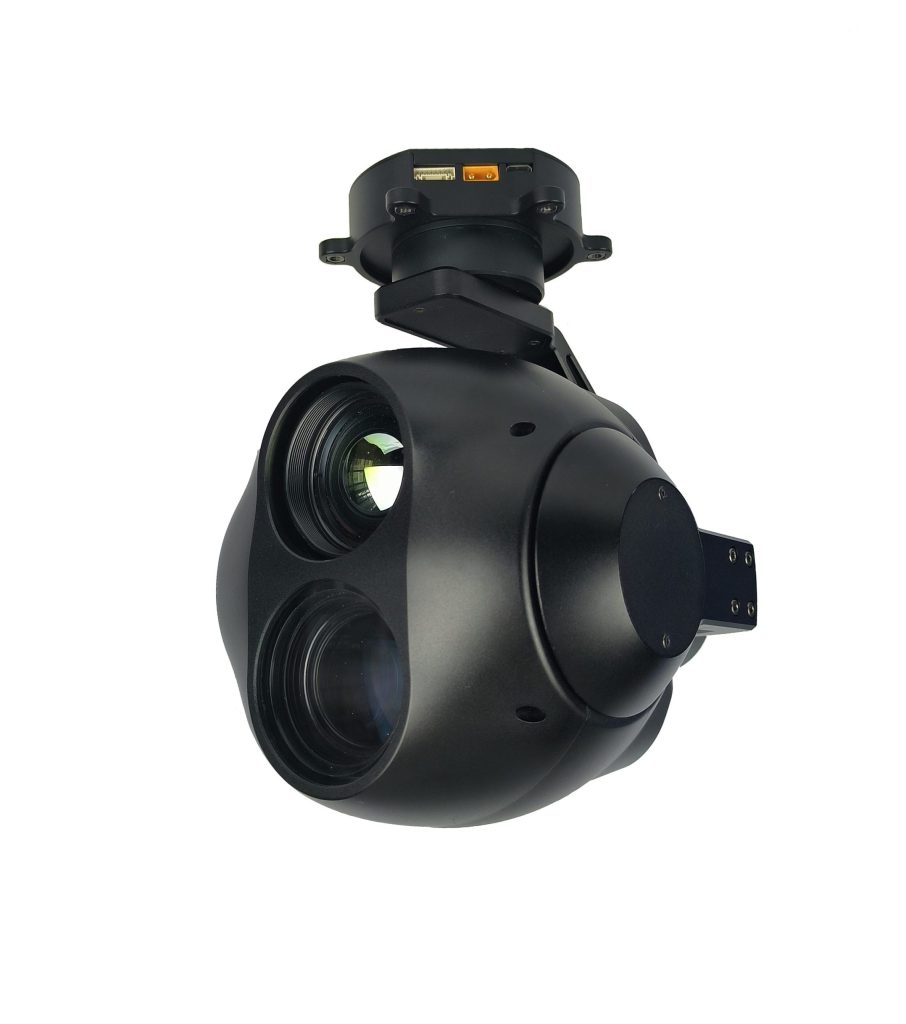

The KHP20A12 is a professional-grade dual-sensor camera system, combining a 20× optical zoom visible-light camera and a high-resolution 1280×1024 thermal imager, mounted on a 3-axis stabilized gimbal. It is designed for UAV surveillance, inspection, and monitoring tasks that require precision imaging in both visible and infrared spectrums.

🔧 Key Features

Visible-Light Camera

• Zoom: 20× optical, up to 140× hybrid with digital zoom

• Sensor: 8 MP CMOS, low-light capable

• Video Output: Supports 4K and 1080p at 30fps

• Focus: Fast autofocus (<1 sec)

• Storage: Built-in TF card support for local video recording

Thermal Imaging Camera

• Resolution: 1280×1024 VOx uncooled infrared sensor

• Lens: 35 mm fixed focal length

• Zoom: Up to 9× digital zoom

• Temperature Measurement: Point and area measurement, min/max analysis

• Display Modes: Multiple color palettes and picture-in-picture display

Gimbal System

• Axes: 3-axis stabilized with high-precision FOC control

• Stabilization Accuracy: ±0.02° (roll), ±0.03° (yaw)

• Rotation Range: Yaw ±290°, Pitch −45° to +120°, Roll ±45°

• Control Interfaces: SBUS, UART, UDP, PWM

Construction and Power

• Material: Durable metal housing

• Input Voltage: 12–26V DC

• Power Consumption: Approx. 8W

• Weight: ~1,570 g

• Dimensions: 132 × 161 × 194 mm

✅ Use Case

• Law enforcement and public safety

• Border patrol and perimeter surveillance

• Infrastructure inspection (power lines, pipelines)

• Search and rescue operations

• Firefighting support and environmental monitoring
