Product Description

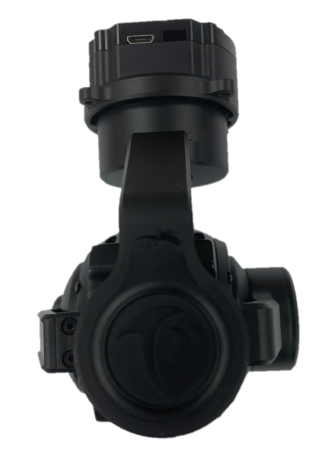

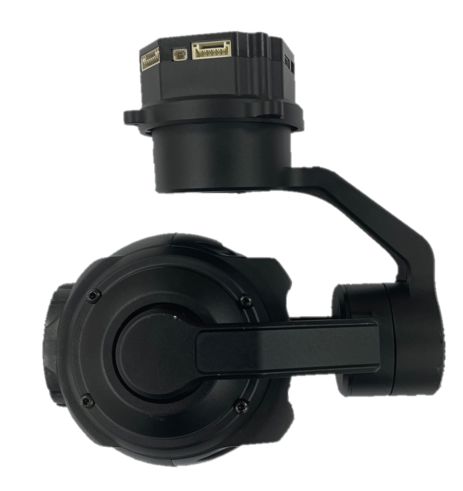

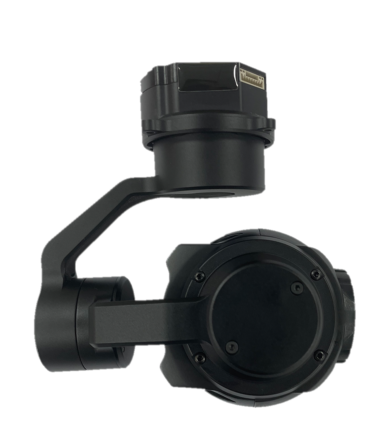

The KIP10S4K combines 4K video capture with a 10× optical zoom lens and 3-axis stabilized PTZ gimbal, optimized for UAV platforms. It's ideal for remote inspection, surveillance, and aerial filming thanks to its high-resolution output and reliable network streaming.

⚙️ Technical Specifications

Optics & Imaging

• 10× optical zoom (focal length approx. 4.9 mm to 49 mm), plus up to 9× digital zoom for a total of around ~90× mixed zoom.

• HD sensor with an effective 8 MP resolution

• Supports 4K and 1080p streaming via RTSP

• Local recording to onboard TF card (FAT32, H.264/H.265)

• Fast autofocus (under 1 second)

Video Output & Control

• Network IP output (RTSP standard), enabling integration with ground station software that supports PTZ and zoom control

• Supports control via IP or serial interfaces (e.g. SBUS/UART)

• Low-latency video: approximately 170 ms RTSP delay

Gimbal & Stabilization

• Highly precise FOC encoder-based 3-axis stabilization

• Gimbal travel:

  • Roll: ±45°

  • Pitch: approx. −60° to +135°

  • Yaw: ±280°

• Stabilization jitter: ±0.02° (pitch/roll), ±0.03° yaw

• Adaptive PTZ speed (slower when zoomed in, faster when wide)

• One-click return to home position

Field of View (approx.)

• Wide: Diagonal ~66.6°, Horizontal ~53.2°, Vertical ~39.8°

• Tele: Diagonal ~7.2°, Horizontal ~5.3°, Vertical ~4.2°

Mechanical & Power Specs

• Weight: approx. 375 g (±10 g, excluding vibration dampers)

• Dimensions: roughly 79 × 111 × 120 mm

• Power: compatible with 3S or 6S drone battery systems; typical consumption ~7.5 W

Environmental Ratings

• Operating: −10 °C to +50 °C; 20%–80% relative humidity

• Storage: −20 °C to +60 °C; up to 95% RH non-condensing

✅ Use Case

• Compact & lightweight: Easy to integrate on drones with limited payload capacity

• Excellent zoom range: Ideal for detailed observation from distance

• High‑resolution streaming: Supports 4K RTSP with predictable latency

• Precise stabilization: Smooth imagery even during dynamic maneuvering

• Versatile control mechanisms: IP, SBUS, UART compatible with standard ground systems
