Product Description

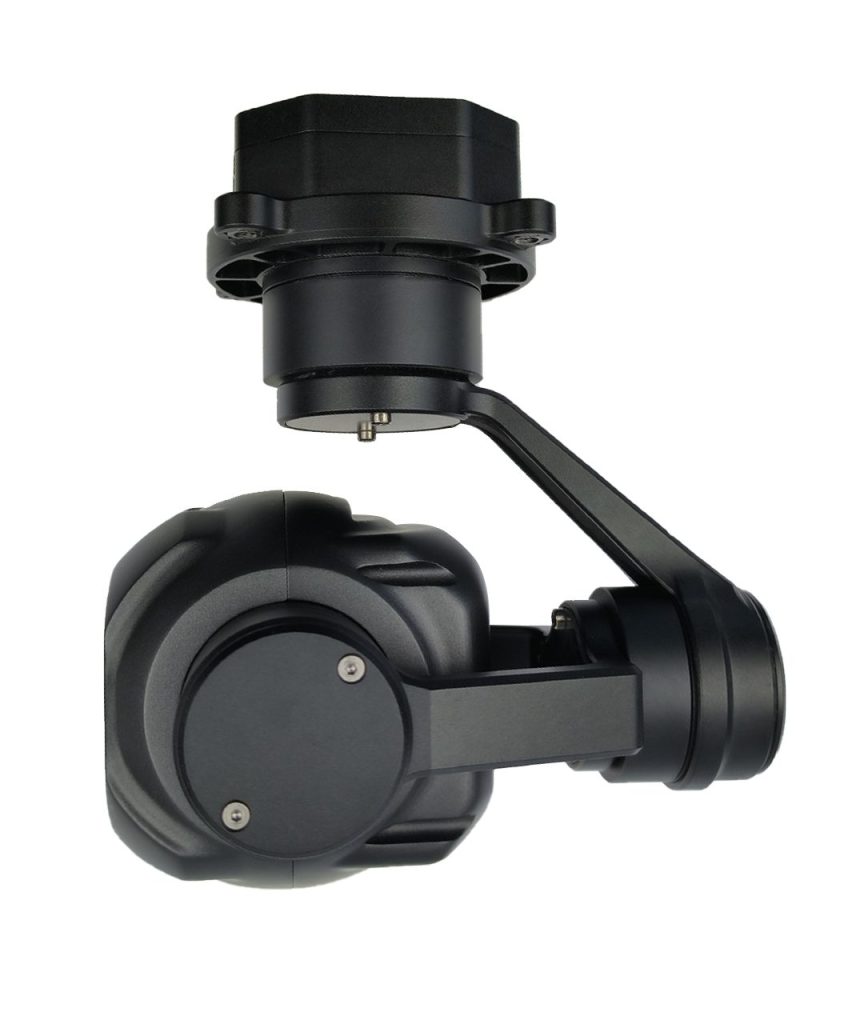

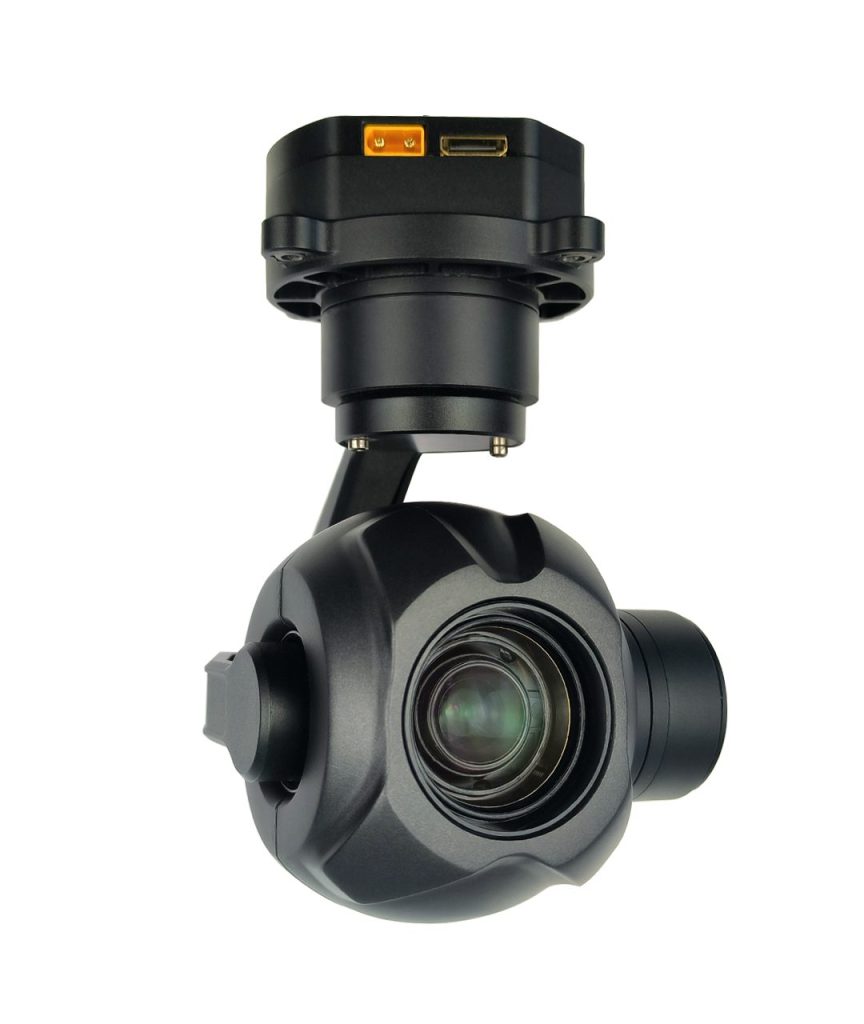

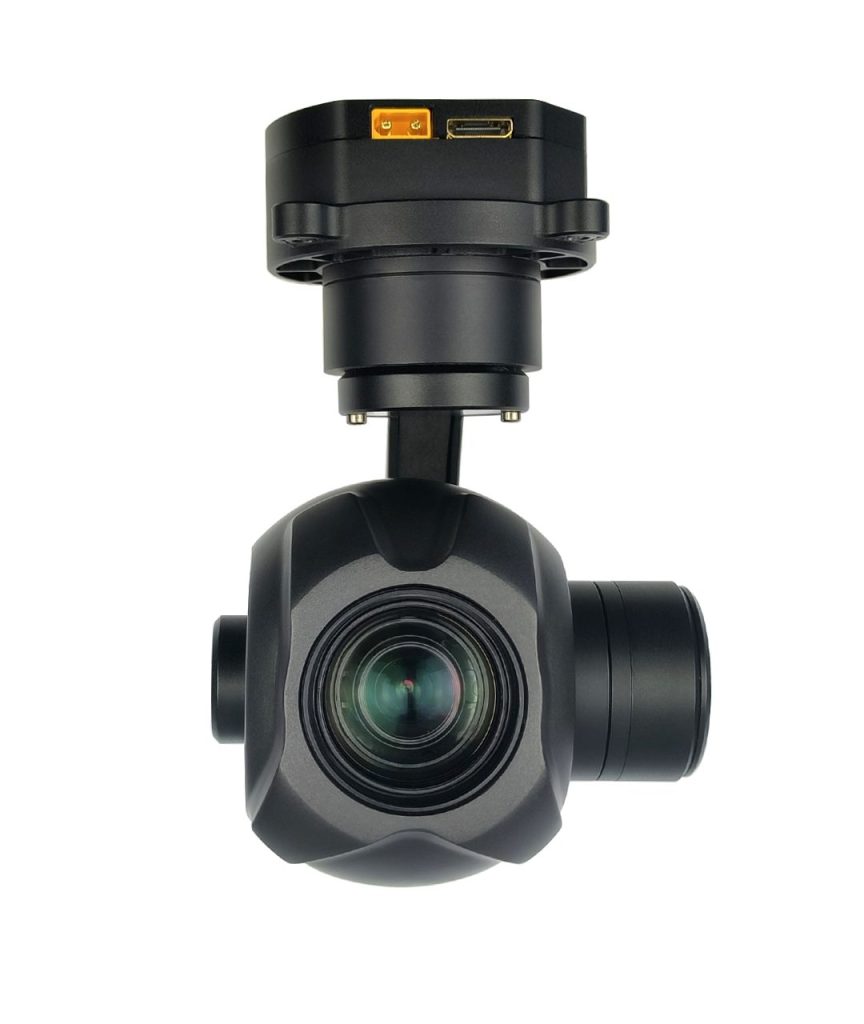

The KHY10S90 is a lightweight, compact gimbal-mounted camera system designed for UAV and drone applications. It offers 10× optical zoom paired with up to 9× digital zoom, integrated into a high-precision 3-axis FOC-stabilized PTZ gimbal.

⚙️ Key Features

• Sensor & Imaging: 1/2.8″ 2‑megapixel wide dynamic CMOS sensor; 1080p output at 30 fps via RTSP streaming; onboard recording to TF card (H.264/H.265).

• Zoom: 10× optical zoom (focal length ~5.15–47.38 mm), plus 9× digital zoom.

• Outputs: Dual mode – IP (RTSP) streaming and HDMI output.

• Latency: Low-delay RTSP streaming with approximately 170 ms latency.

• Controls: Supports IP, UART, SBUS (and optionally PWM) control; one-click return to home; ground station compatibility.

• Gimbal Mechanics:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±280°

  • Stabilization jitter: ±0.02° in pitch/roll; ±0.03° horizontal.

  • Adaptive PTZ speed: slower at high zoom, faster at wide angle.

• Focus Performance: Real-time autofocus in under 1 second.

• Field of View (approximate):

  • Wide: D = ~69.5°, H = ~61.5°, V = ~35.0°

  • Tele: D = ~7.95°, H = ~7.00°, V = ~3.97°

• Physical Specs:

  • Weight: ~396 g (excluding dampers), ±10 g tolerance

  • Dimensions: ~80 × 112 × 130 mm

• Power: Compatible with 3S or 6S drone battery systems; consumption around 5 W.

• Environmental Range:

  • Operating: −10 °C to +45 °C; 20–80% relative humidity

  • Storage: −20 °C to +60 °C; up to 95% non-condensing humidity

✅ Typical Use Cases

Ideal for drones performing aerial surveillance, infrastructure inspection, security operations, or environmental monitoring. It’s valued for its clarity, quick focus, lightweight design, and dependable stabilization.
