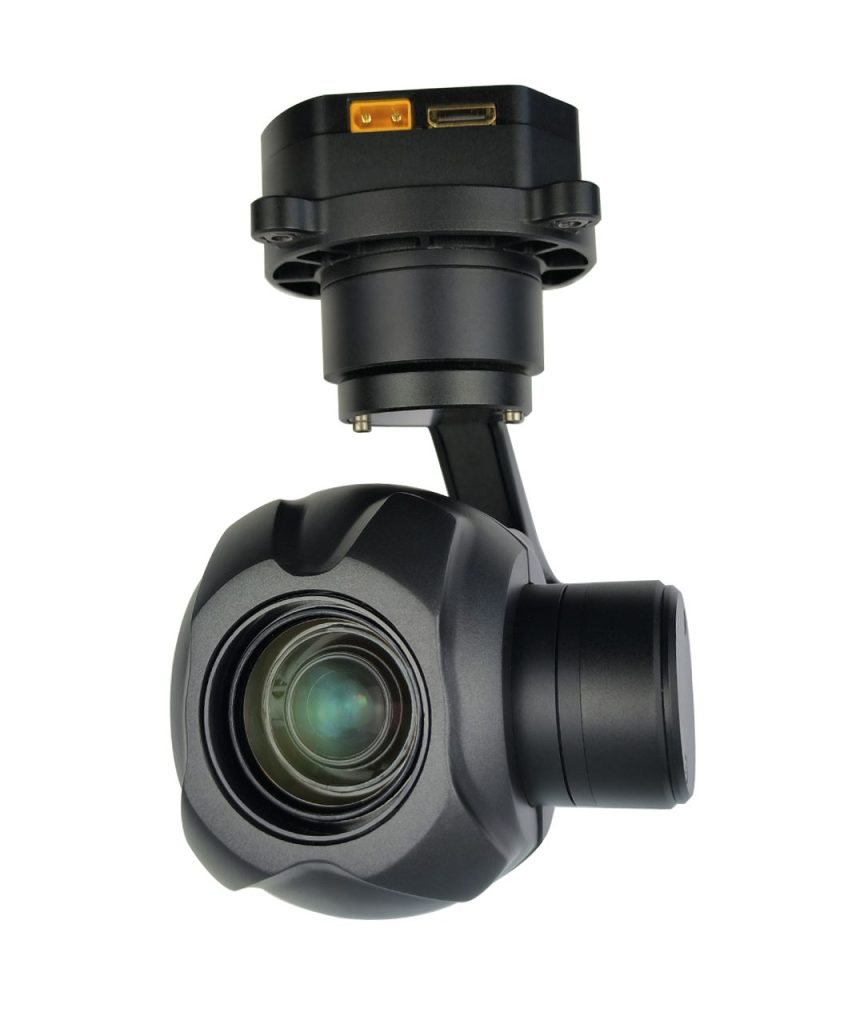

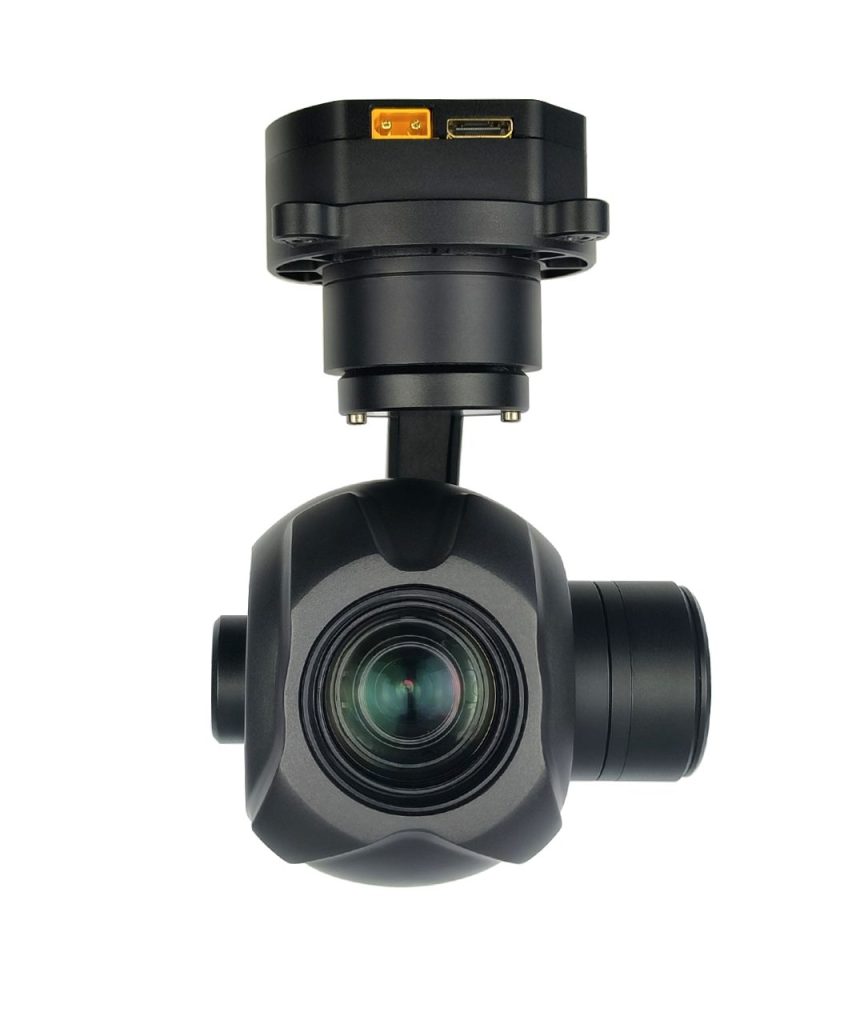

KHY10S4K – 4K UAV Gimbal Camera with 10× Optical Zoom

SKU: KHY10S4K

KHY10S4K is a single EO small gimbal integrated a 4K resolution 70x mixed zoom camera and a high-precision 3-axis stabilizing PTZ. It adopts network IP output and control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, lightweight and low power consumption; The visible light camera adopts 8 mega effective pixel COMS SENSOR. The system supports serial port, network, and SBUS control cameras and PTZ, RTSP stream output, supporting local TF storage.

Product Description

The KHY10S4K is a professional-grade 3-axis gimbal camera designed for drone surveillance, inspections, and long-range observation. Equipped with a high-quality 1/2.8" CMOS sensor, it captures 4K Ultra HD video and offers a 10× optical zoom along with up to 70× total zoom through digital enhancement.


⚙️ Key Features

  • Sensor: 1/2.8″ 8 MP CMOS sensor with wide dynamic range

  • Zoom:

    • Optical: 10× (focal length approx. 4.9 mm to 49 mm)

    • Digital: up to 7× to 9×

    • Combined Zoom: Up to 70× total

  • Video Output:

    • 4K and 1080p streaming at 30 fps

    • RTSP network streaming and HDMI output

    • Supports onboard TF card recording

  • Low Latency: ~170 ms via RTSP stream


🧠 Gimbal System

  • Axes: 3-axis stabilizer (yaw, pitch, roll)

  • Stabilization Accuracy:

    • Pitch/Roll: ±0.02°

    • Yaw: ±0.03°

  • Gimbal Movement Range:

    • Roll: ±45°

    • Pitch: -45° to +120°

    • Yaw: ±290°, continuous rotation

  • Control Options:

    • IP network control

    • Serial interfaces: SBUS, UART

    • Ground station software compatibility

  • PTZ Behavior:

    • Zoom-speed synchronized movement

    • One-click return-to-position function


🔍 Optics & Performance

  • Field of View:

    • Wide: Diagonal ~66.6°, Horizontal ~53.2°, Vertical ~39.8°

    • Tele: Diagonal ~7.2°, Horizontal ~5.3°, Vertical ~4.2°

  • Autofocus: Rapid, under 1 second

  • Power Supply: DC 12–26 V, ~5 W typical power consumption

  • Weight: Approximately 360–375 grams

✅ Use Case

  • UAV surveillance and patrolling

  • Infrastructure and utility inspections

  • Police, fire, and emergency response

  • Search and rescue operations

  • Environmental monitoring

Link

Product KHY10S4K link is here!

Product Attributes

Form Factor

Attribute Value Description Why It Matters
Height N/A Total standing height (cm) Human-scale enables use of tools, navigation of spaces
Width N/A Shoulder-to-shoulder width (cm) Affects balance, door/passage fit
Weight N/A Total mass (kg) Impacts mobility, safety, power usage, transportability

Power System

Attribute Value Description Why It Matters
Battery Type N/A Li-ion / LiFePO4 / etc. Determines energy density, safety
Battery Capacity N/A Wh or Ah Impacts range and operating time
Operating Duration N/A Hours under normal load Key for logistics, shift planning

Performance

Attribute Value Description Why It Matters
Payload Capacity N/A Maximum carrying capacity (kg) Determines real-world utility
Speed N/A Maximum operational speed Task completion rate & productivity
Precision N/A Positioning accuracy (mm) Quality of work & application suitability
Repeatability N/A Consistency of positioning (±mm) Manufacturing quality & reliability
Cycle Time N/A Time per standard operation Productivity & throughput calculations
MTBF N/A Mean Time Between Failures (hours) Reliability & maintenance planning
Service Life N/A Expected operational lifespan (years) ROI calculations & replacement planning

Connectivity

Attribute Value Description Why It Matters
Communication Protocol N/A Wi-Fi / Ethernet / 5G / Bluetooth Network integration capabilities
Remote Control N/A Web / App / Joystick / API Needed for manual override or remote training
Programming Interface N/A Drag-drop / Code / Visual / Teach pendant Ease of deployment and customization
Integration APIs N/A Available software interfaces System integration capabilities
Cloud Connectivity N/A Cloud platform compatibility Data analytics & remote monitoring
Security Features N/A Encryption & authentication methods Cybersecurity compliance

Form Factor

Attribute Value Description Why It Matters
Height N/A Total standing height (cm) Human-scale enables use of tools, navigation of spaces
Width N/A Shoulder-to-shoulder width (cm) Affects balance, door/passage fit
Weight N/A Total mass (kg) Impacts mobility, safety, power usage, transportability

Power System

Attribute Value Description Why It Matters
Battery Type N/A Li-ion / LiFePO4 / etc. Determines energy density, safety
Battery Capacity N/A Wh or Ah Impacts range and operating time
Operating Duration N/A Hours under normal load Key for logistics, shift planning

Performance

Attribute Value Description Why It Matters
Payload Capacity N/A Maximum carrying capacity (kg) Determines real-world utility
Speed N/A Maximum operational speed Task completion rate & productivity
Precision N/A Positioning accuracy (mm) Quality of work & application suitability
Repeatability N/A Consistency of positioning (±mm) Manufacturing quality & reliability
Cycle Time N/A Time per standard operation Productivity & throughput calculations
MTBF N/A Mean Time Between Failures (hours) Reliability & maintenance planning
Service Life N/A Expected operational lifespan (years) ROI calculations & replacement planning

Connectivity

Attribute Value Description Why It Matters
Communication Protocol N/A Wi-Fi / Ethernet / 5G / Bluetooth Network integration capabilities
Remote Control N/A Web / App / Joystick / API Needed for manual override or remote training
Programming Interface N/A Drag-drop / Code / Visual / Teach pendant Ease of deployment and customization
Integration APIs N/A Available software interfaces System integration capabilities
Cloud Connectivity N/A Cloud platform compatibility Data analytics & remote monitoring
Security Features N/A Encryption & authentication methods Cybersecurity compliance

Similar products

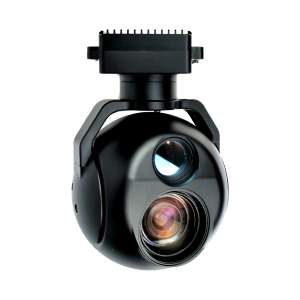

DYD10G613 – Dual‑Light 10× Optical Zoom + 640×512 Thermal Gimbal

DYD10G613 – Dual‑Light 10× Optical...

DYD10G613 is an integrated dual sensor camera system which features...

SKU: DYD10G613

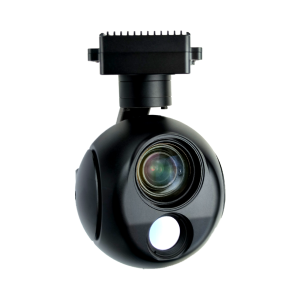

DIY10G613 – Dual-Light 10× Zoom Gimbal System

DIY10G613 – Dual-Light 10× Zoom...

DIY10G613(DHU) is an integrated dual sensor camera system...

SKU: KHP30N800-1

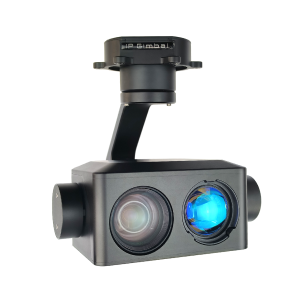

KIP30N800 – 30× Optical Zoom + 800 m Laser Light Fill‑In Night Vision Gimbal

KIP30N800 – 30× Optical Zoom...

KIP30N800 is a zoom dual optical integration system...

SKU: KHP30N800

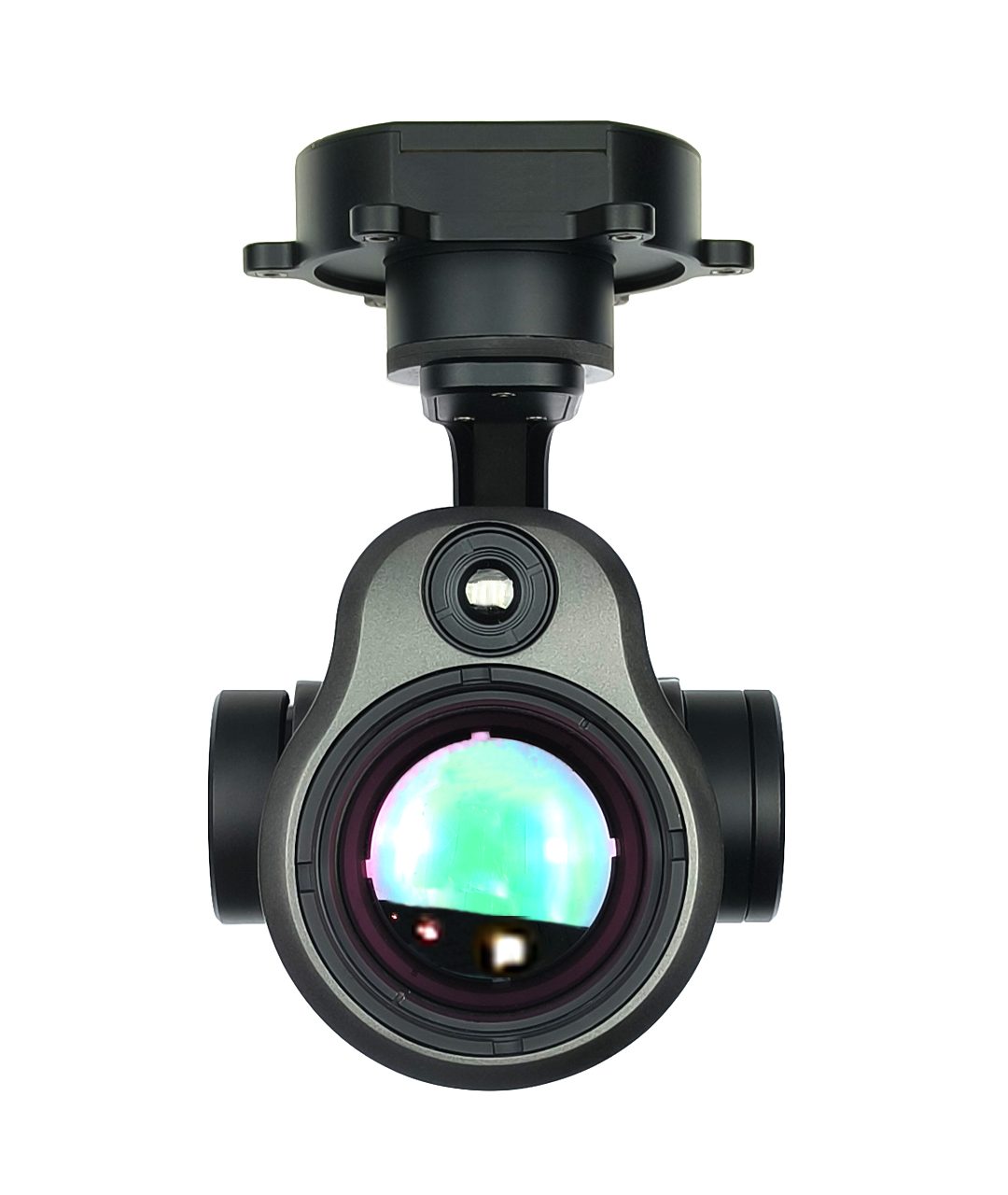

KHPA60950 – Dual Thermal Imager Gimbal with 9.1 mm & 50 mm Lenses

KHPA60950 – Dual Thermal Imager...

KHPA60950 is a high-precision professional three-axis stabilization pod...

SKU: KHPA60950

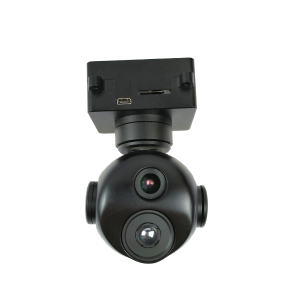

KHP290G207 – Compact Fixed‑Focus Dual‑Light Gimbal

KHP290G207 – Compact Fixed‑Focus Dual‑Light...

KHP290G207 is a small fixed-focus dual-light pod integrating...

SKU: KHP290G207

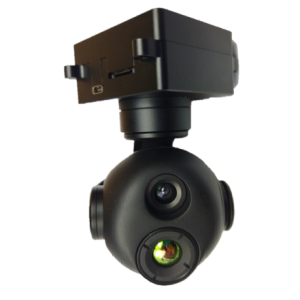

KHP290G609 – Compact Dual-Light Gimbal

KHP290G609 – Compact Dual-Light Gimbal

KHP290G609 is a dual light drone gimbal integrated...

SKU: KHP290G609

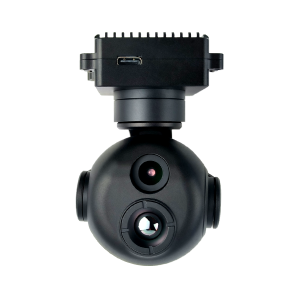

KHP290A609 – Compact Dual-Light Gimbal

KHP290A609 – Compact Dual-Light Gimbal

KHP290A609 is an integrated 1080P visible-light camera, 9.1mm...

SKU: KHP290A609

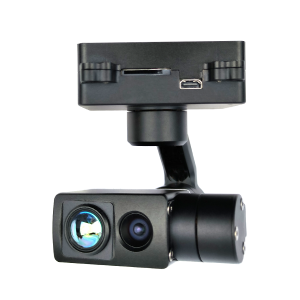

KHP335M608 – Compact 1080p & Thermal Dual-Light Gimbal

KHP335M608 – Compact 1080p &...

KHP335M608 is a fixed focus dual light drone gimbal integrated fixed focus...

SKU: KHP335M608

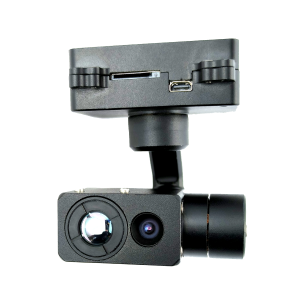

KHP335G609 – Fixed‑Focus Dual‑Light Micro Gimbal

KHP335G609 – Fixed‑Focus Dual‑Light Micro...

KHP335G609  is a fixed focus dual light drone...

SKU: KHP335G609

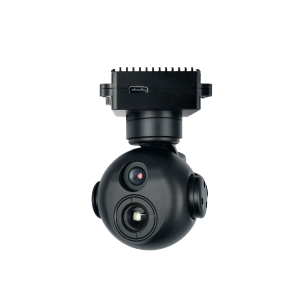

DIU290G609 – Compact Dual-Light Gimbal Camera
