Product Description

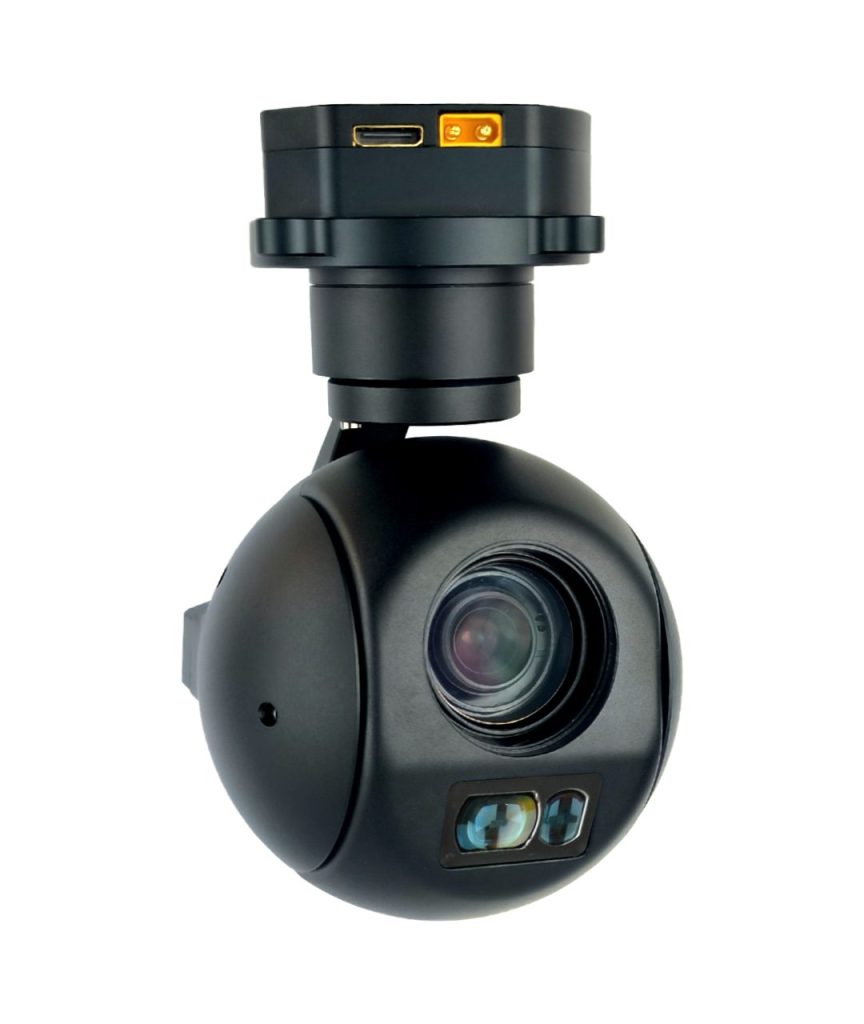

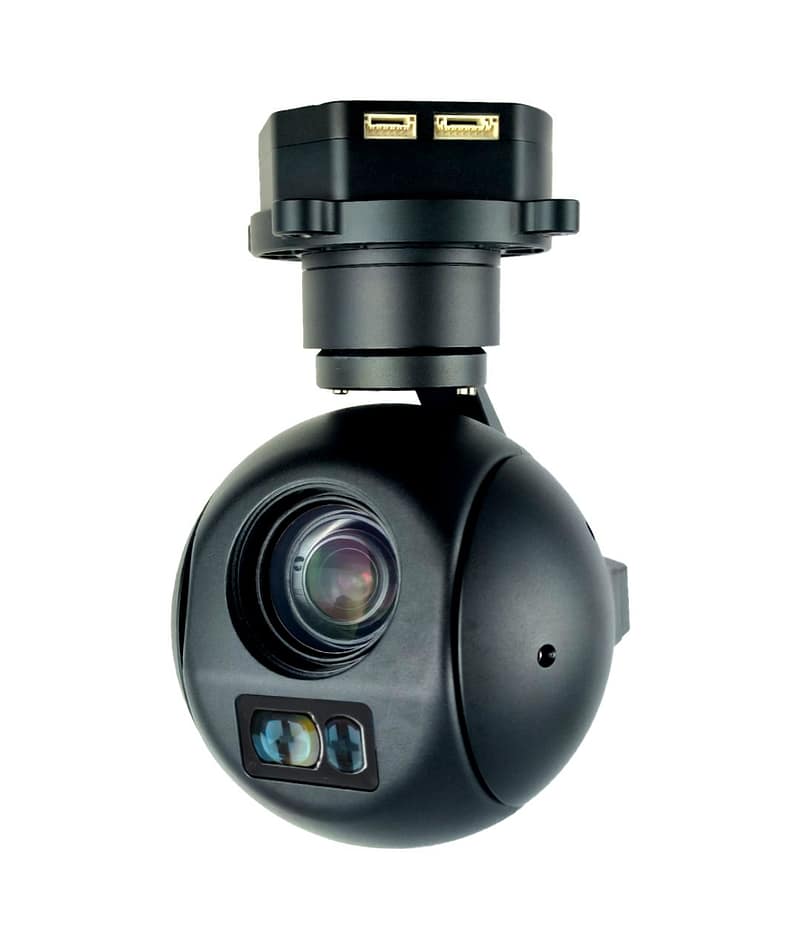

Designed for precision aerial surveillance, this compact gimbal integrates a high-zoom visible-light camera with an eye-safe 1,200 meter laser rangefinder, ideal for targeting, mapping, and drone-based inspection tasks.

---

🔧 Key Specifications & Features

Visible-Light Camera

• Sensor: 1/2.8″ CMOS, ~2 MP

• Optical Zoom: 10×

• Combined Hybrid Zoom: Up to ~90× including digital zoom

• Autofocus: Fast (< 1 second)

• Output: 1080p resolution at 30 fps via RTSP; HDMI output also supported

• Local Storage: Dual-channel TF card video/photo capture supported

• Field of View:

  • Wide: ~69.5° diagonal, ~61.5° horizontal

  • Tele: ~7.95° diagonal, ~7.00° horizontal, ~3.97° vertical

Laser Rangefinder (LRF)

• Laser Wavelength: 905 nm (eye-safe, Class 1)

• Measurement Range: 5 m up to 1,200 m

• Accuracy: ±1 m resolution

• Integrated with camera and PTZ control systems via serial interface

Gimbal & PTZ System

• Three-axis stabilization using high-precision encoder with FOC control

• Motion Ranges:

  • Roll: ±45°

  • Pitch: −30° to +95°

  • Yaw: ±295°

• Stabilization Accuracy: ±0.02° (pitch/roll), ±0.03° (yaw)

• Features include one-click return-to-center and automatic PTZ speed adjustment based on current zoom level

• Control Interfaces: Network/IP (Ethernet), UART, SBUS; PWM optional

Electrical & Mechanical Specs

• Power Supply: DC 12–26 V (typically 12 V–26.2 V)

• Typical Power Consumption: ~6 W

• Weight: Approximately 460 g (±20 g)

• Size: ~143 mm × 148 mm

• Environmental Limits: Operating −10 °C to +45 °C; humidity 20–80% RH; storage −20 °C to +60 °C up to 95% RH non-condensing

---

✅ Typical Applications

• Long-range inspection and surveillance from UAV platforms

• Target ranging and geolocation for mapping or security missions

• Infrastructure inspection, environmental monitoring, and firefighting support

• Security, border patrol, and search & rescue operations requiring distance estimation

Link

Product KIP30L30A link is here!
