Product Description

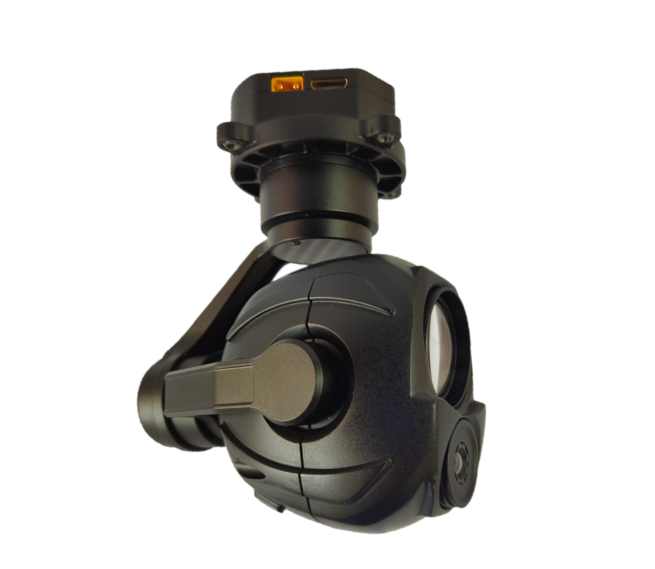

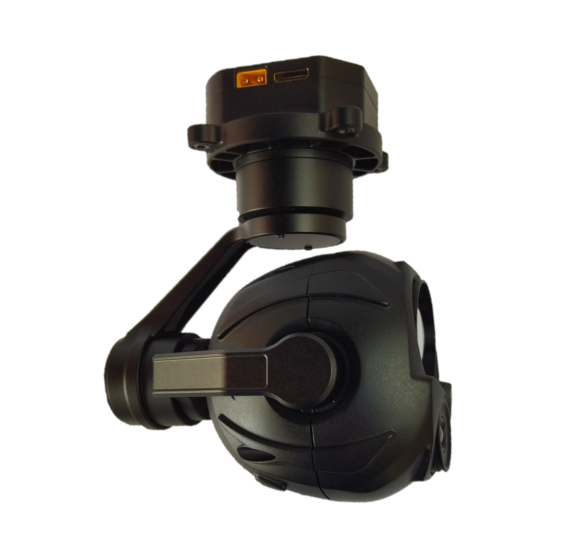

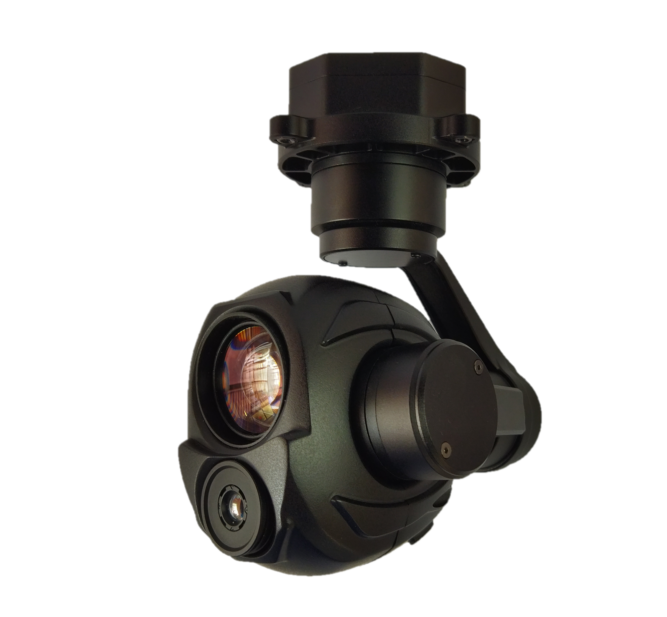

The KHY10G207 integrates a 10× optical zoom visible-light camera with a 256×192 thermal imaging module in a compact 3‑axis stabilized gimbal. This unit delivers up to ≈90× mixed zoom, with both HDMI and IP streaming capabilities.

🔍 Key Features

Visible-Light Camera

• 1/2.8″, 2 MP WDR CMOS sensor

• 10× optical zoom lens (f ≈ 4.9–47.5 mm)

• Combines with digital zoom for about 90× total zoom

• Fast autofocus in less than 1 second

• Smooth image preview via RTSP at 1080p @ 30 fps

• Onboard TF‑card recording supported

Thermal Sensor

• 256 × 192 VOx uncooled infrared detector

• 7 mm thermal lens with ~25° × 18.8° field of view

• Thermal sensitivity: NETD ≤ 50 mK (typical at F1.0)

• Supports temperature readings including center-point, maximum, and alerts

• Multiple thermal display palettes and picture-in-picture modes

🧠 Gimbal & Control

• 3‑axis encoder-controlled FOC stabilization (pitch/roll/yaw)

• Movement ranges:

  • Roll: ±45°

  • Pitch: −45° to +100°

  • Yaw: ±280°

• Stabilization jitter: ±0.02° (pitch/roll), ±0.03° (yaw)

• Adaptive speed: slower at high zoom for precision control

• One-click home restore and PTZ angle/speed presets

• Remote control via serial port, IP, SBUS or PWM

⚡ Power, Weight & Size

• Power input: 12 V nominal DC (range 12–26 V); approx. 6.5 W consumption

• Compact mechanical footprint: approx. Ø148 mm × H143 mm

• Lightweight design: approx. 430 g ±20 g

✅ Typical Use Cases

• Drone surveillance with both visible and thermal streams

• Infrastructure inspection (e.g. power lines, pipelines)

• Search and rescue and nighttime operations

• Environmental and wildlife monitoring with dual-light validation

• Situations requiring small, low-power payload with high stability
