Product Description

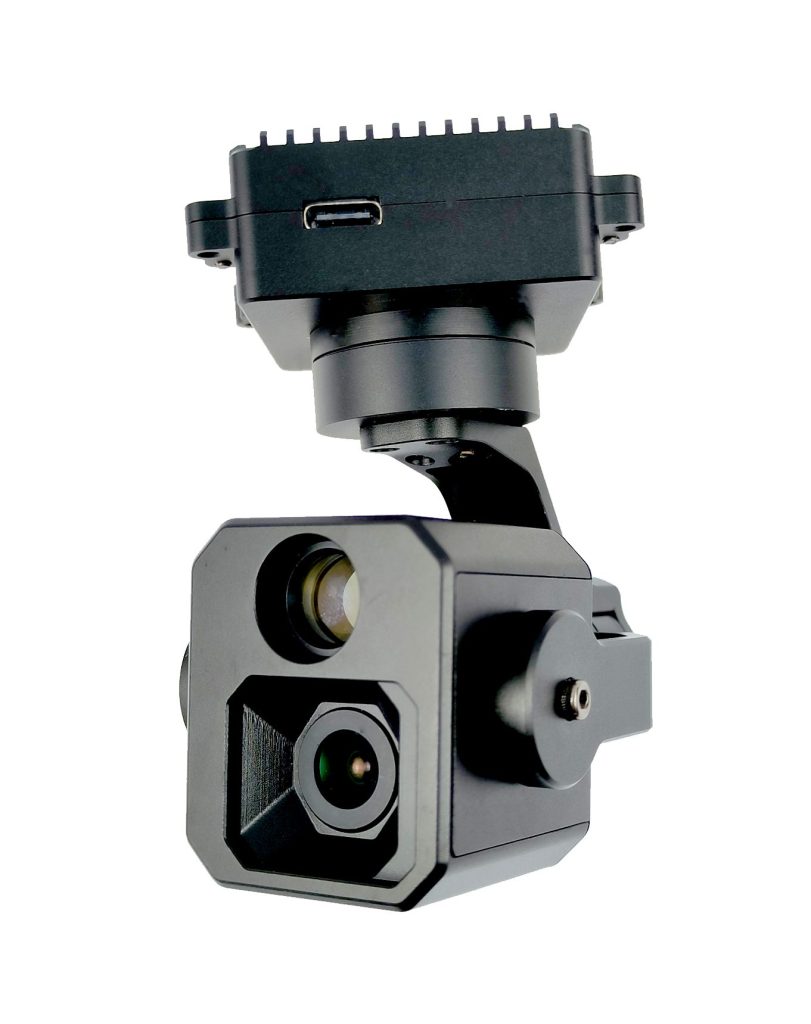

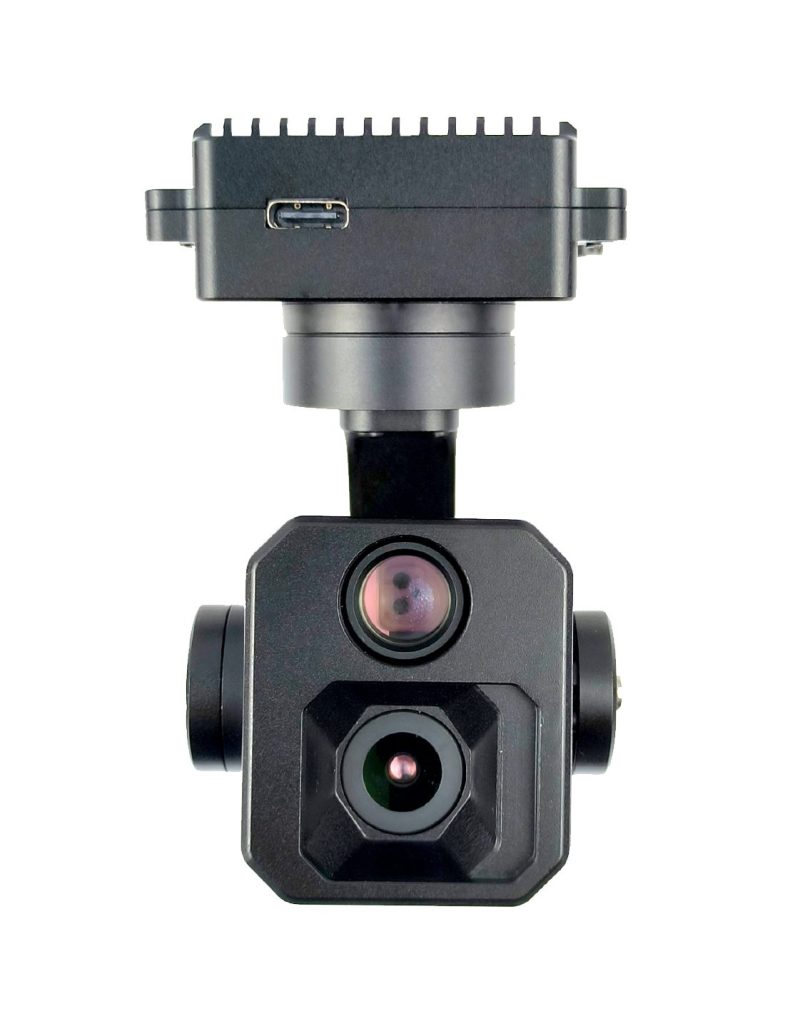

The KHP415S90 is a compact, ultra-light dual visible-light gimbal that integrates two cameras: one captures 4K resolution (8 MP) with 7× digital zoom, and the other offers 1080p resolution (2 MP) with 9× digital zoom. Designed for small UAVs, it supports day/night switching and enables dual-stream RTSP and HDMI output with picture-in-picture capability.

---

🔍 Core Features

• Dual Visible-Light Cameras:

  • 4K channel: 8 MP sensor with 7× digital zoom

  • 1080p channel: 2 MP sensor with 9× digital zoom

• Image Formats: Streaming via RTSP (both channels), HDMI output at 1080p/30fps

• Recording: Dual-channel TF card recording (both cameras) with synchronous capture

• Display Modes: Picture-in-picture, selectable display combinations

---

⚙️ Gimbal & Control Specifications

• Stabilization: 3-axis FOC (Field-Oriented Control) system with encoder feedback

• Movement Limits:

  • Roll: ±45°

  • Pitch: −45° to +100°

  • Yaw: ±150°

• Stabilization Accuracy:

  • Pitch/Roll jitter: ±0.02°

  • Yaw jitter: ±0.03°

• Smart Features:

  • Adaptive movement speed tied to zoom level

  • One-click reset to home position

• Control Interfaces: Network (Ethernet IP), UART serial port, SBUS compatibility

---

🔧 Performance & Environmental Data

• Lens Focal Lengths:

  • 4K camera: ~25 mm (field of view ~10.5° × 7.8°)

  • 1080p camera: ~6 mm (field of view ~60° × 43°)

• Latency: Approximately 170 ms streaming delay

• Autofocus: Fast autofocus under 1 second

• Weight & Build:

  • Approx. 150 g (±10 g)

  • Compact dimensions: ~120 mm diameter × 95 mm height

• Power Input: 12–26 V DC (supports 3S–6S battery systems)

• Power Consumption: Approximately 4 W in operation

• Operating Range: –20 °C to +55 °C; humidity 20‑80% RH; storage to –20 °C/+60 °C with up to 95% RH non‑condensing

---

✅ Use Cases

• Lightweight aerial platforms that require both 4K detail and wide-angle 1080p coverage

• Surveillance, mapping, and live-streaming missions

• Applications with tight payload constraints and where power efficiency is essential
