Product Description

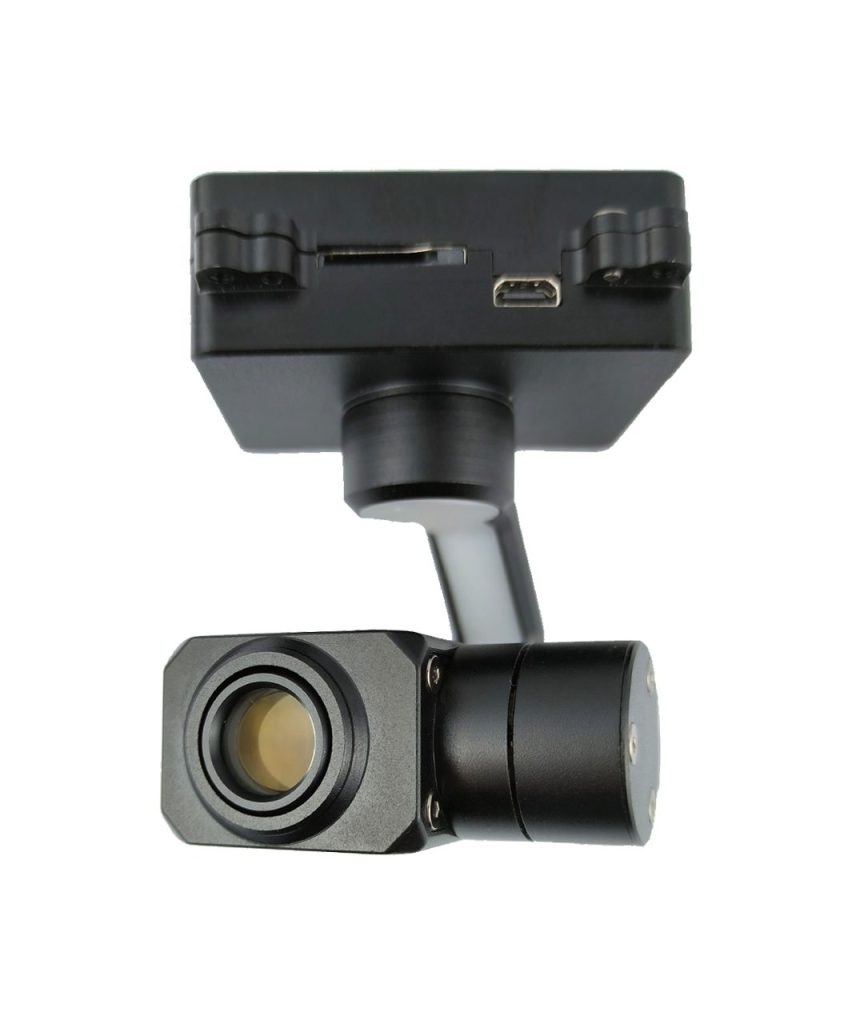

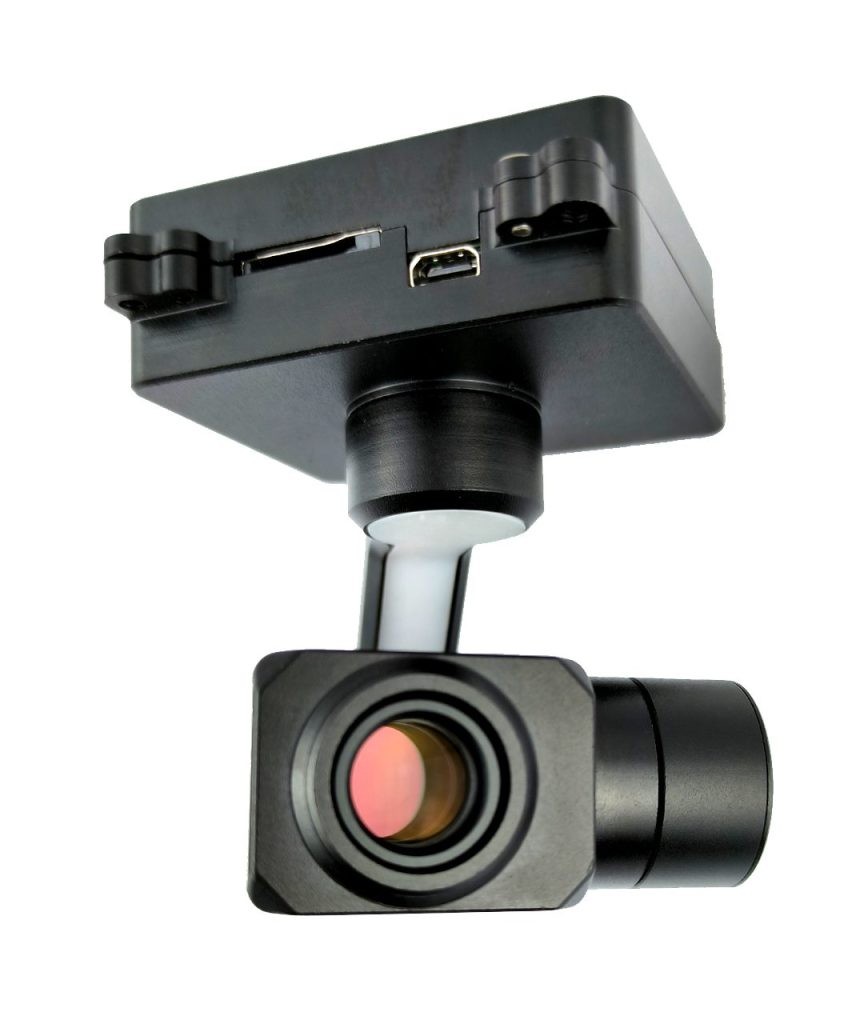

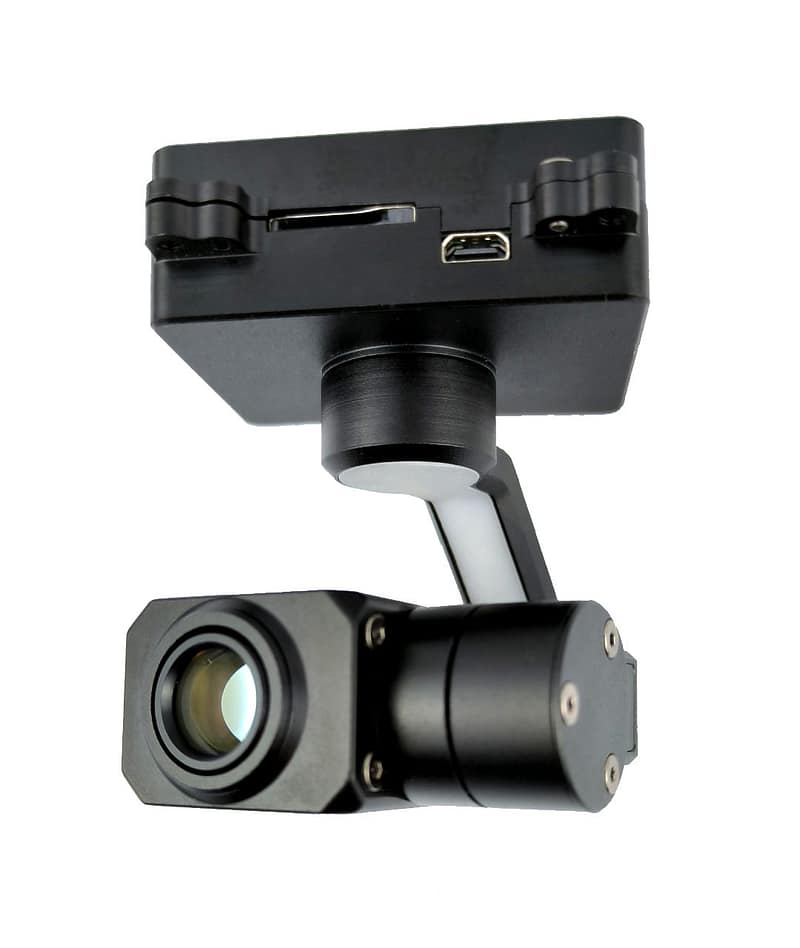

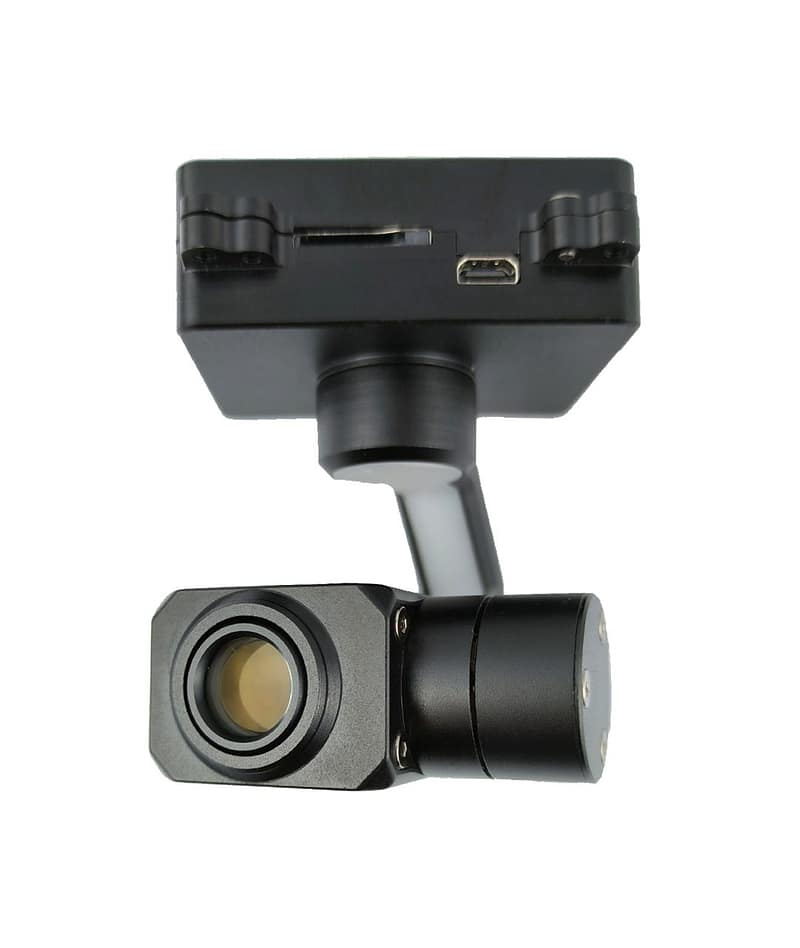

A compact, ultra-light visible-light gimbal camera designed for UAVs. Weighing around 110 grams, it combines 4K video resolution, 7× digital zoom, and a 3-axis stabilized gimbal—ideal for lightweight drone applications.

---

⚙️ Key Specifications

• Sensor & Resolution

  • 1/2.8″, 8-megapixel CMOS sensor

  • Supports 4K and Full HD (1080p) streaming via RTSP

  • Also records locally to a TF card (H.264/H.265 encoding)

• Zoom & Optics

  • 7× digital zoom (no optical zoom)

  • Fixed 25 mm equivalent field of view: ~10.5° × 7.8°

• Gimbal Mechanics

  • 3-axis FOC encoder stabilization

  • Roll: ±45°, Pitch: −45° to +100°, Yaw: ±150°

  • Stabilization jitter: ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

  • Includes one-click return to center and adaptive pan/tilt speed

• Control Interfaces

  • Network/IP control (RTSP), SBUS, UART

  • Optional PWM control support

• Latency & Focus

  • Latency around 170 ms

  • Fast autofocus performance (< 1 second)

• Power, Size & Weight

  • Input: DC 12–26 V

  • Power Consumption: ~4 W

  • Dimensions: ~120 mm diameter × 68 mm height

  • Weight: ~110 ± 10 g

• Environmental Specs

  • Operating Temp: −10 °C to +45 °C

  • Humidity: 20–80% RH

  • Storage: −20 °C to +60 °C, up to 95% RH non‑condensing

---

✅ Use Case

• Ultra-light drone missions where payload capacity is limited
• Contextual mapping, inspection, or scouting with basic zoom
• Integration into smaller UAV frames seeking stabilized 4K visuals

Link:

The product KHP415-6 page is here!
