Product Description

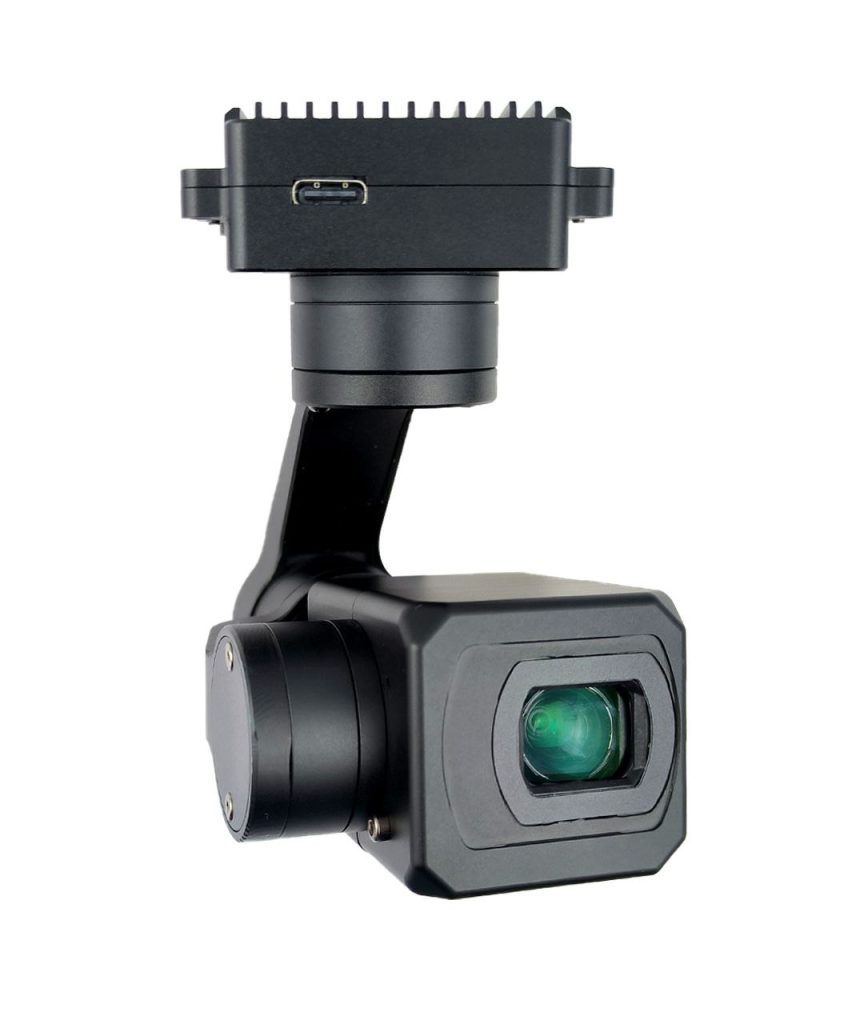

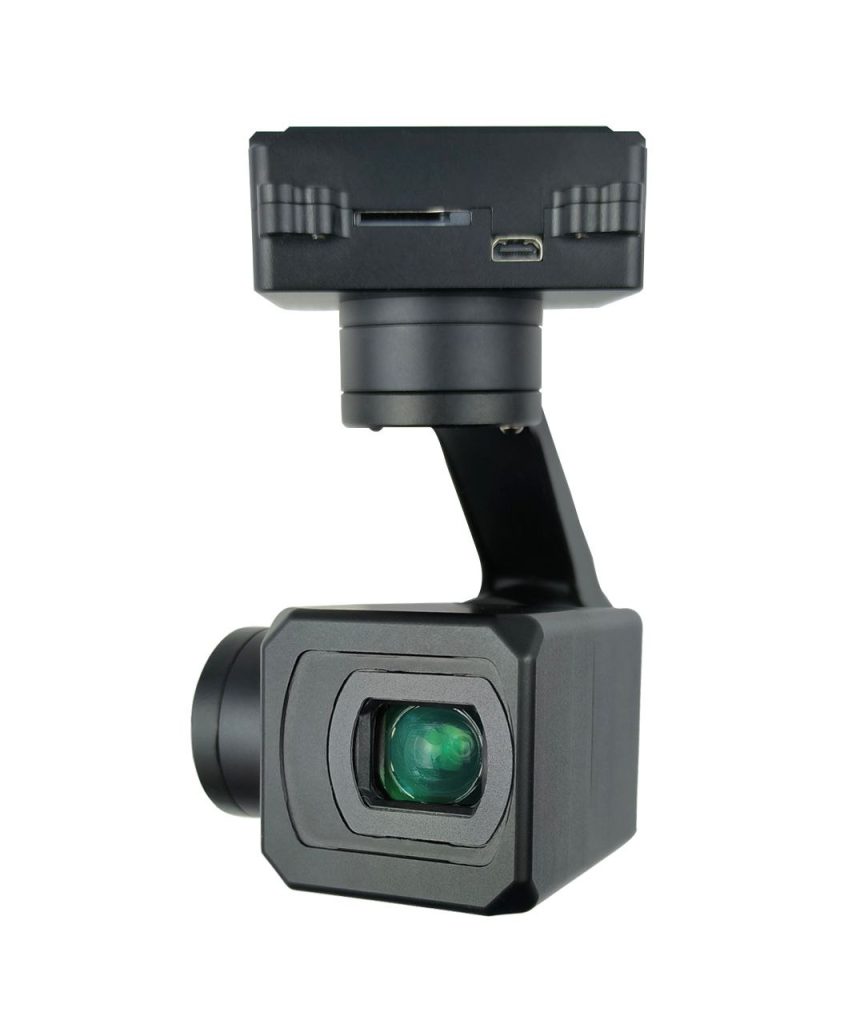

The KHP05S35 features a 5× optical zoom lens and up to 9× digital zoom (totaling approximately 45× hybrid zoom), combined with a precision 3‑axis stabilized PTZ gimbal—ideal for small UAVs used in inspection, surveillance, or mapping operations.

⚙️ Technical Specifications

• Sensor: 1/3-inch, 4‑megapixel CMOS

• Optical Zoom: 5× (focal length approx. 5 to 25 mm)

• Digital Zoom: Up to 9×

• Total Hybrid Zoom: ~45×

• Focus Speed: Real‑time autofocus in under 1 second

• Video Output: 1080p at 30 fps via RTSP network stream; supports local TF‑card recording (H.264/H.265)

• Gimbal Range & Stabilization:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±145°

  • Stabilization jitter: ±0.02° in pitch/roll; ±0.03° in horizontal

• Control Interfaces: IP (RTSP control), SBUS, UART; optional PWM support

• PTZ Features: Adjustable speed based on zoom level; one-click return to home position

• Power: DC 12–26 V supply, typical consumption ~6 W

• Dimensions: Approximately 99 mm × 120 mm

• Weight: Roughly 200 ± 10 grams

• Operating Conditions:

  • Temperature: −10 °C to +45 °C

  • Humidity: 20–80% RH

  • Storage: −20 °C to +60 °C; humidity up to 95% non-condensing

✅Use Case

• Lightweight drone operation with limited payload capacity
• Use cases requiring stabilized 45× zoom for inspection (industrial, infrastructure, agriculture)
• Aerial surveillance missions with fast autofocus and low latency
