Product Description

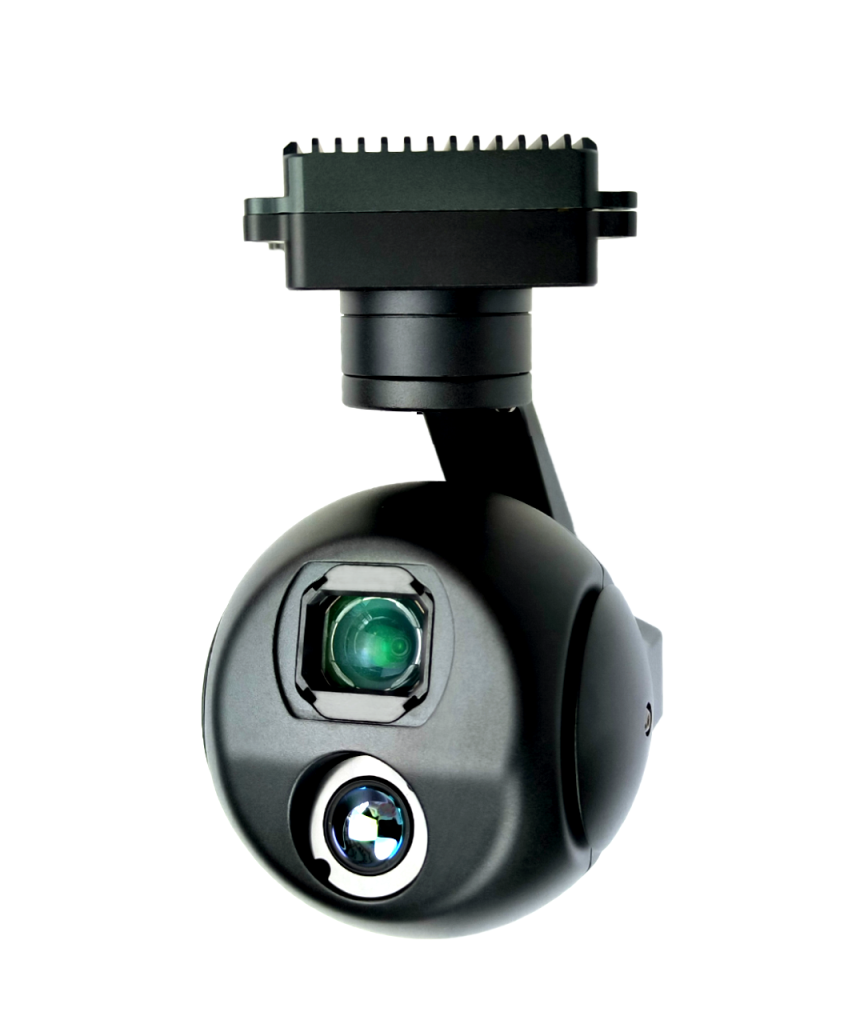

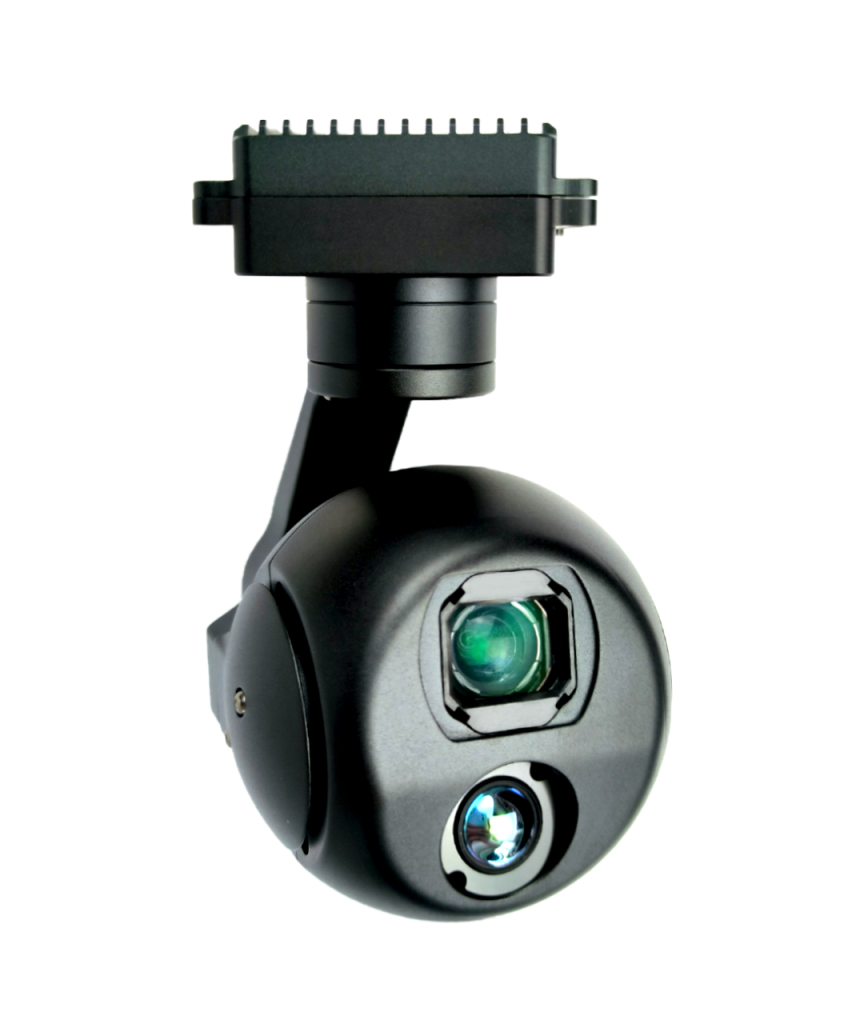

The KHP05M5 is a compact, lightweight dual-light gimbal integrating a 4 MP visible-light camera with 5× optical zoom and up to 9× digital zoom (~45× hybrid total), along with a 640×512 thermal imager (8.7 mm lens). It supports both HDMI and IP output, high-precision stabilization, and dual-channel recording.

---

🔍 Core Features

• Visible-Light Camera:

  • 1/3″ 4 MP CMOS sensor with real-time autofocus (under 1 second)

  • 5× optical zoom combined with 9× digital, yielding ~45× hybrid zoom

  • Field of view ranges from ~61° wide to ~12° telephoto

• Thermal Module:

  • 640×512 thermal resolution with uncooled VOx detector and 8.7 mm lens

  • Field of view ≈40° × 32°

  • Thermal sensitivity (NETD) ≤ 50 mK at F/1.0

  • Supports temperature analytics, pseudo-color palettes, and optional pixel-level temperature logging

• Construction & Stabilization:

  • Metal-housed 3-axis gimbal using encoder-based FOC control for precise stabilization

  • Gimbal movement: Roll ±45°, Pitch −45° to +100°, Yaw ±145°

  • Stabilization jitter: ±0.02° pitch/roll, ±0.03° yaw

  • Features adaptive PTZ speed and one-click “return home” control

• Interfaces & Recording:

  • Dual output: RTSP over Ethernet and HDMI (720/1080p)

  • Supports dual-channel TF-card recording (visible + thermal)

  • Control via IP, UART, S.Bus; optional PWM support

• Performance & Power:

  • Streaming latency approximately 170 ms

  • Input voltage 12–26 V DC

  • Power consumption around 5 W

• Physical Characteristics:

  • Compact form factor (~120 × 113 mm)

  • Weight approximately 235 g (±20 g)

  • Designed for UAV integration, with low payload impact

---

✅ Use cases

• Light-weight aerial systems requiring both visible and thermal imaging

• Infrastructure surveillance and inspection in low-light or thermal-sensitive scenarios

• Public safety operations, search & rescue, and firefighting support

• Compact platforms where payload weight and power draw must remain low
