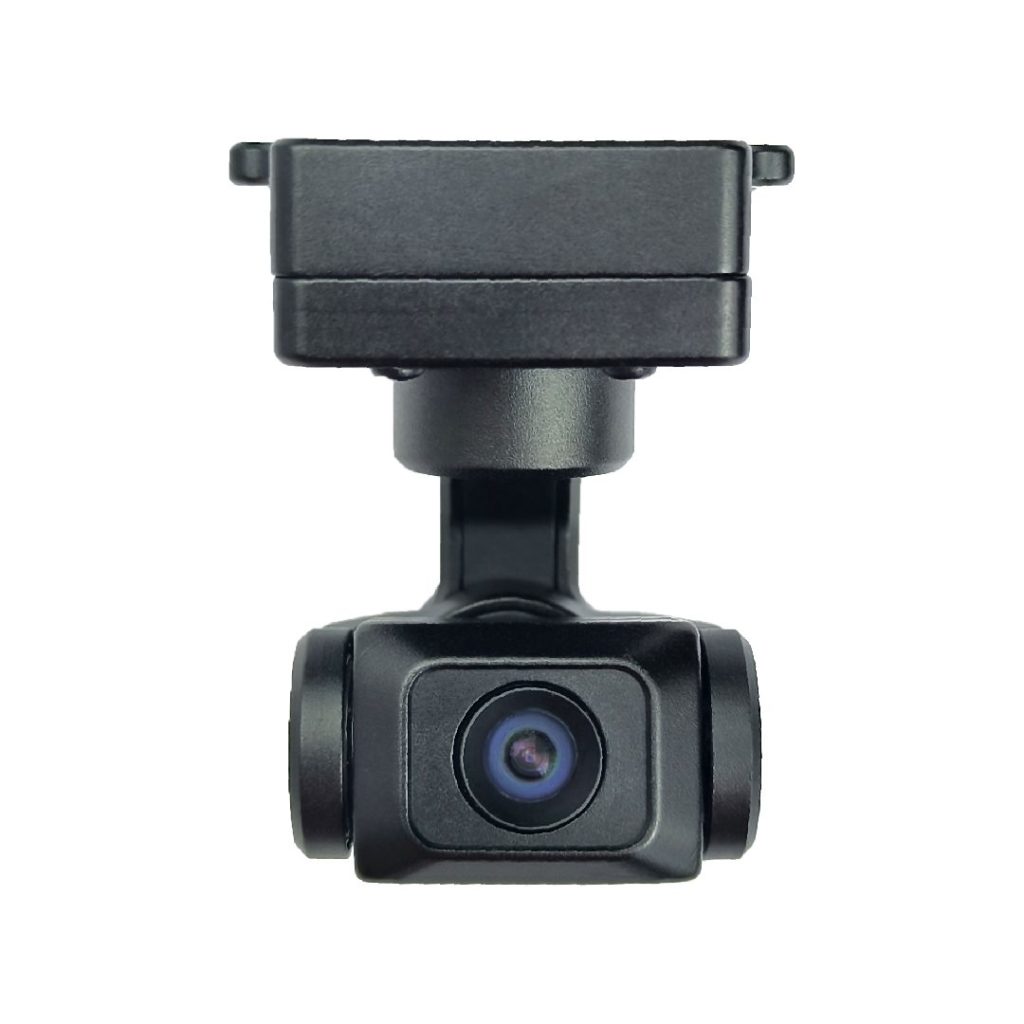

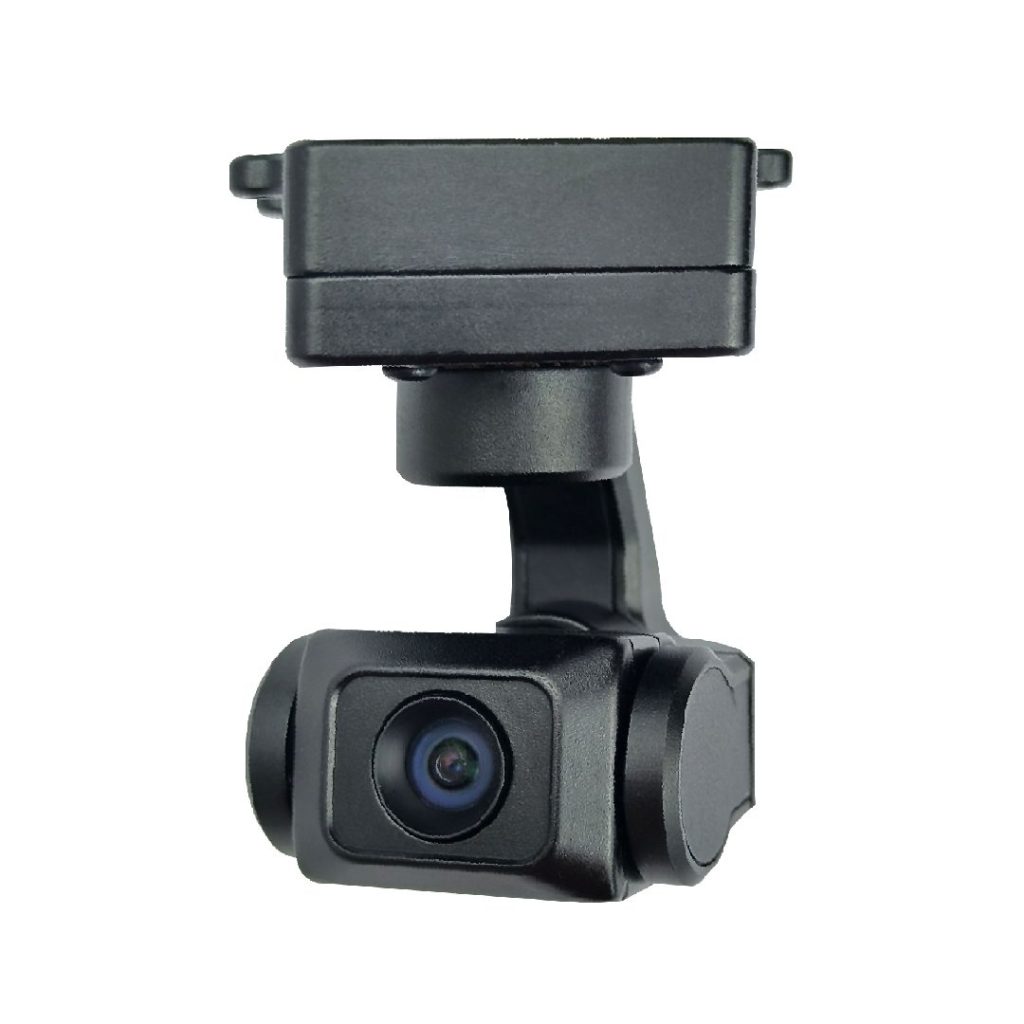

GIP335 – Ultra-Lightweight 2K Network Gimbal Camera
SKU: GIP335The GIP335 is a network output camera integrated with a 9x digital zoom and a high-precision professional three-axis stabilized gimbal. The gimbal uses a Hall effect scheme, characterized by high stability, small size, light weight, and low power consumption. The visible light camera employs a high-definition SENSOR with an effective pixel of 4 million. The camera supports 1080P network RTSP streaming output. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.
Product Description
The GIP335 is an ultra-light, fixed-focus visible-light gimbal camera designed for compact UAVs and handheld applications. Weighing only about 60 grams, it delivers full HD video with digital zoom, offering reliable stabilization through a 3-axis brushless gimbal system.
⚙️ Key Specifications
-
Camera: Fixed-focus visible-light sensor
-
Resolution: Approx. 4 MP (2K), outputs video at 1080p
-
Zoom: Up to 9× digital zoom
-
Focus: Fixed-focus lens (no autofocus delay)
-
Video Output: Real-time network streaming (RTSP)
-
Recording: Supports TF card (microSD) for onboard recording
-
Control Interfaces: IP, SBUS, UART
-
Stabilization: 3-axis gimbal with high-precision Hall sensors
-
Latency: Approx. 170 ms on network stream
-
Weight: Around 60 g
-
Power: Low consumption, suitable for micro drone platforms
-
Use Case: Ideal for lightweight drones, robotic arms, mobile platforms, and aerial video inspections
✅ Use Case
- Miniature UAVs with tight weight limits
- Compact surveillance platforms
- Portable robotics needing stable HD video
- Situations where low power, fast setup, and minimal complexity are key
Link
Product GIP335 link is here!Form Factor
