Product Description

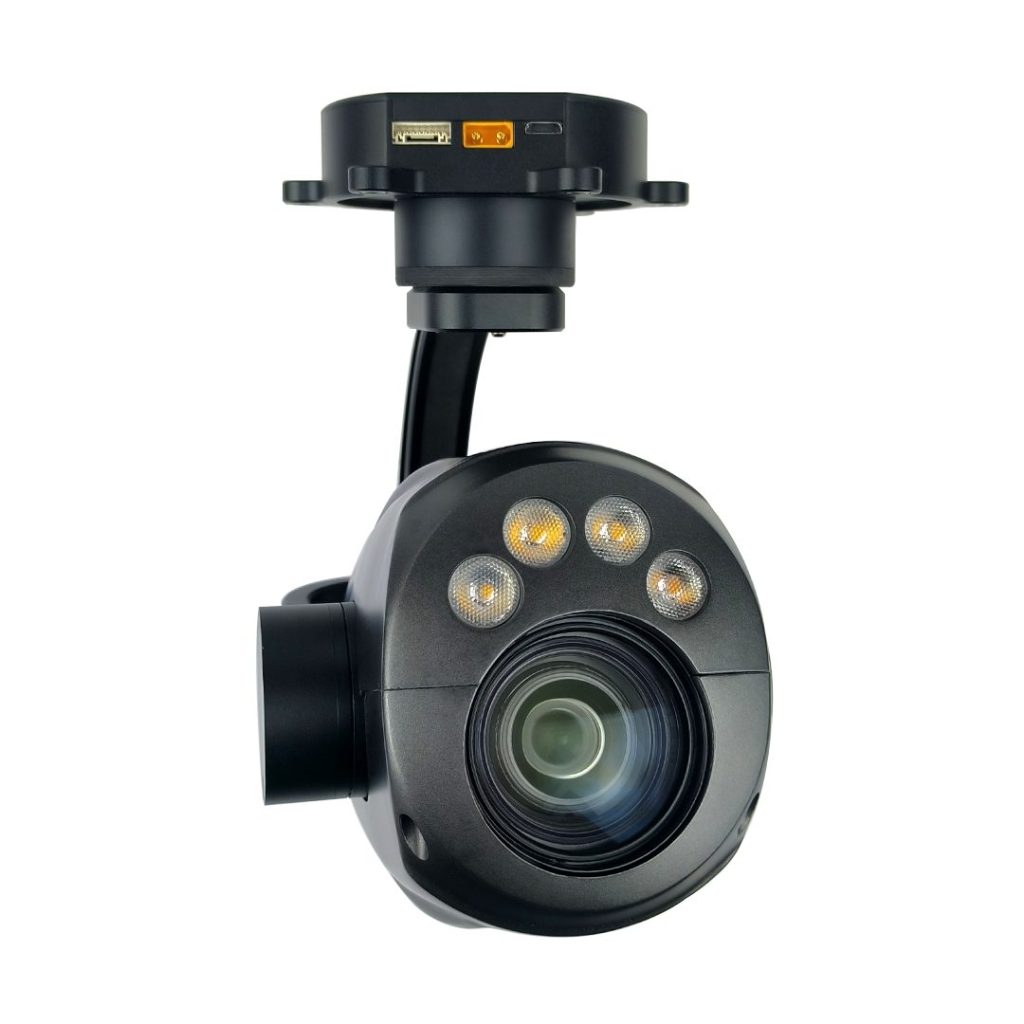

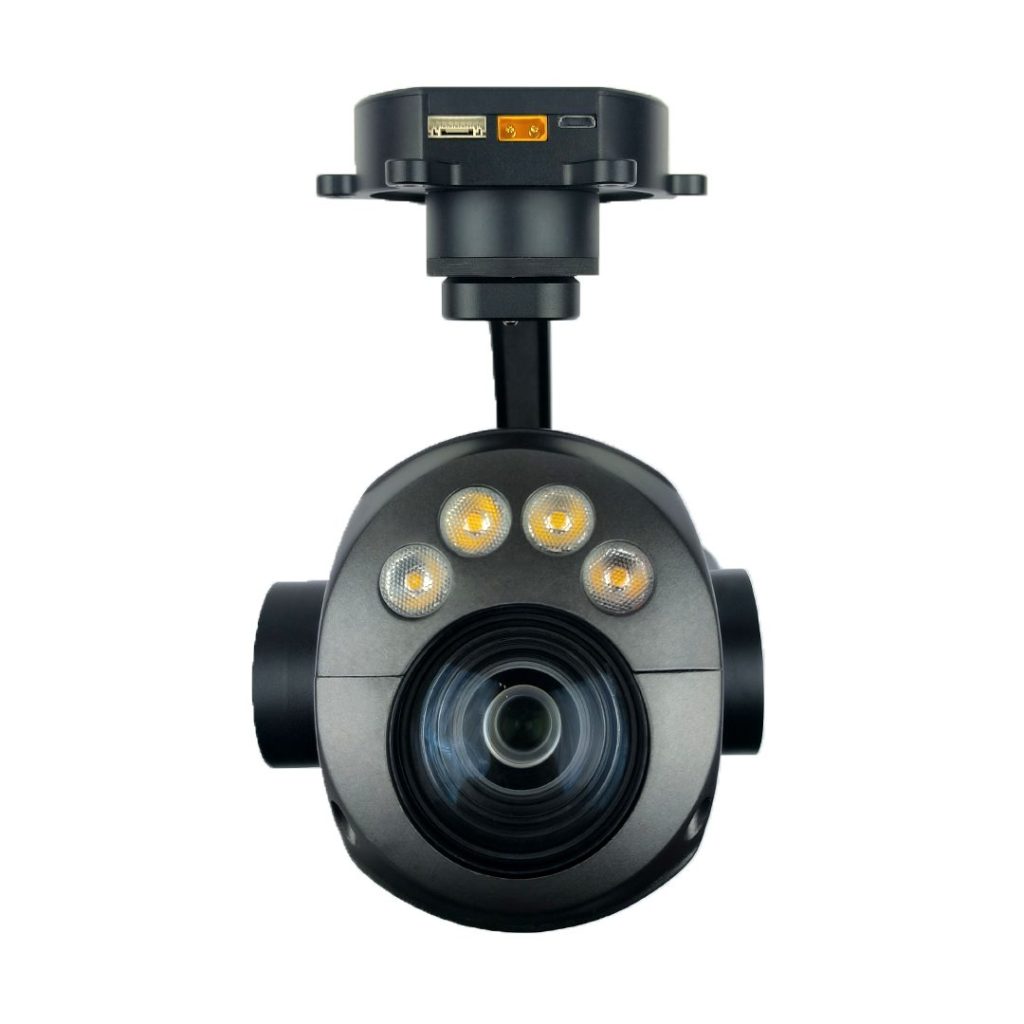

The EIP20S78N is a drone-compatible 20× optical zoom gimbal camera designed for low-light and starlight environments. It offers excellent zoom capabilities and illumination support via integrated supplemental lights.

⚙️ Core Features & Technical Specs

• Sensor: STARVIS2 low-noise CMOS sensor, 1/1.8″ size with approximately 8 million effective pixels

• Zoom Performance:

  • 20× optical zoom

  • Up to 9× digital zoom

  • Total mixed zoom up to ~140×

• Video Output:

  • Supports high-resolution streaming in 4K and 1080p via RTSP over IP

  • Local recording onto onboard TF-card storage

  • Low-latency streaming (~170 ms)

  • Optional HDMI output if enabled

• Illumination: Integrated LED or IR supplemental lighting to support nighttime or low-light operations

• Gimbal & Control:

  • 3-axis PTZ gimbal with encoder-based FOC stabilization

  • Control interfaces include IP, SBUS, and UART

  • Compatible with TOPOTEK ground station software; offers PTZ and zoom control support

• Speed & Precision:

  • Fast autofocus in less than 1 second

  • “One‑click” return to home position

  • Adaptive pan/tilt speed: slower when zoomed in for precision; faster at wider angles

📊 Physical, Environmental & Power Specs

• Weight & Size: Compact, lightweight design around 635–670 grams

• Power Supply: DC 11–24 V input; typical power consumption around 10 W

• Operating Conditions:

  • Temperature: –10 °C to +55 °C

  • Humidity: 20–80% RH

  • Storage: Up to 95% RH non‑condensing, –20 °C to +60 °C

✅ Use Case

• Aerial surveillance in challenging lighting conditions

• Public safety and law enforcement missions requiring zoom and illumination

• Night operations, search & rescue, or inspection work in poorly lit areas

• Infrastructure monitoring and remote observation with integrated lighting
