Product Description

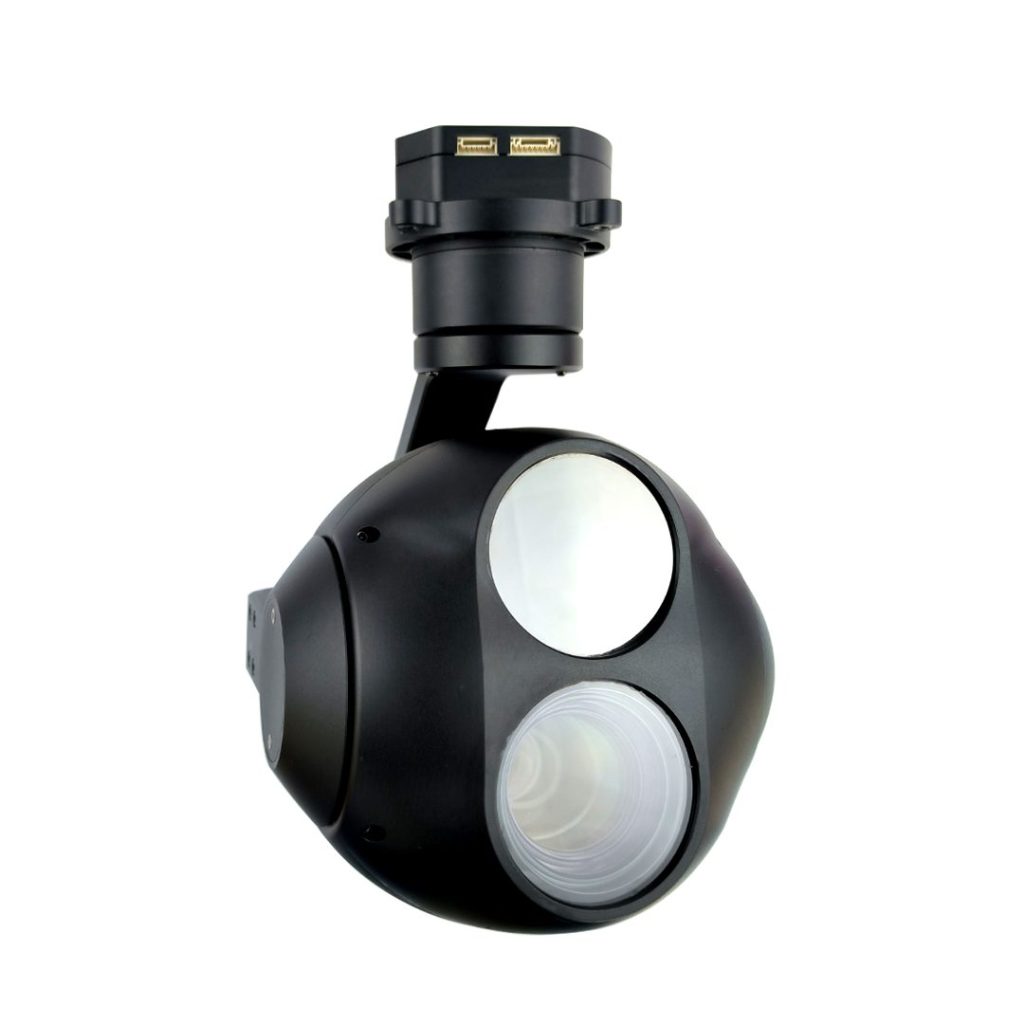

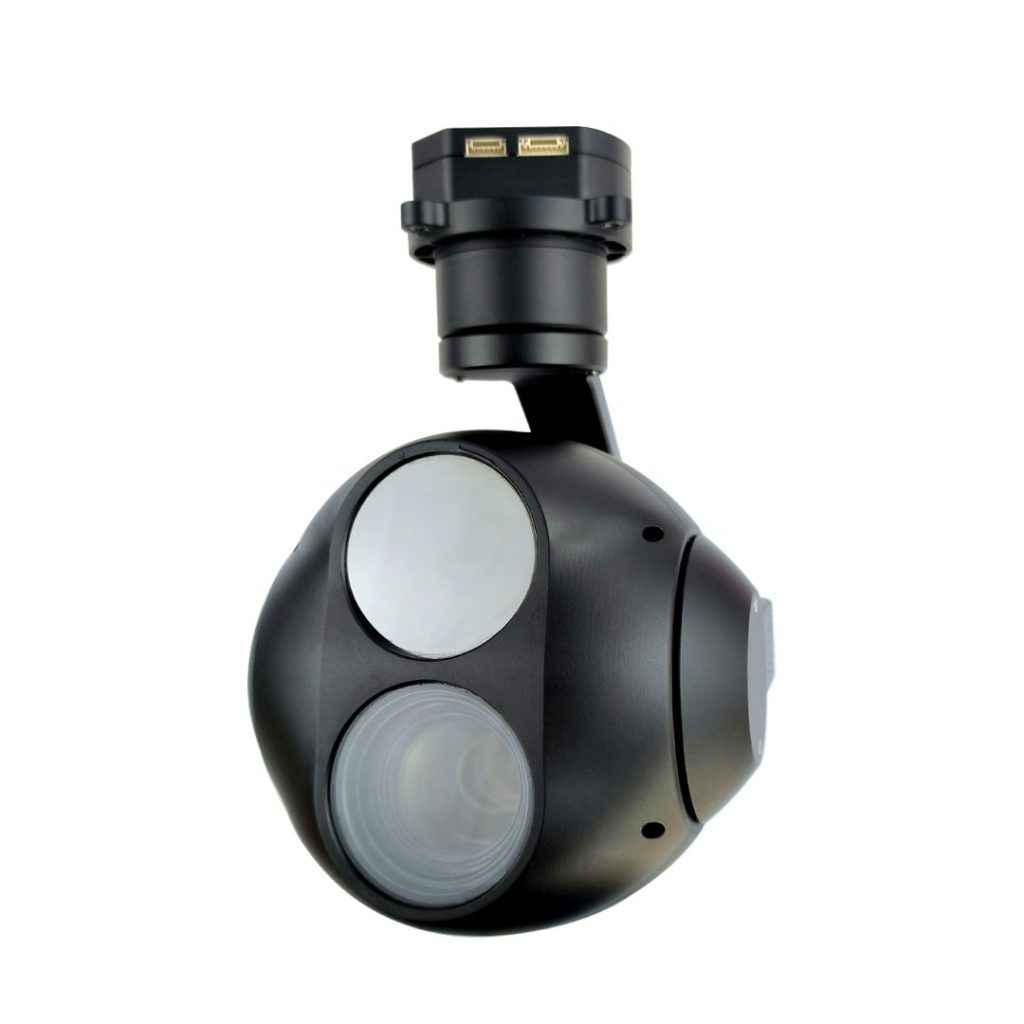

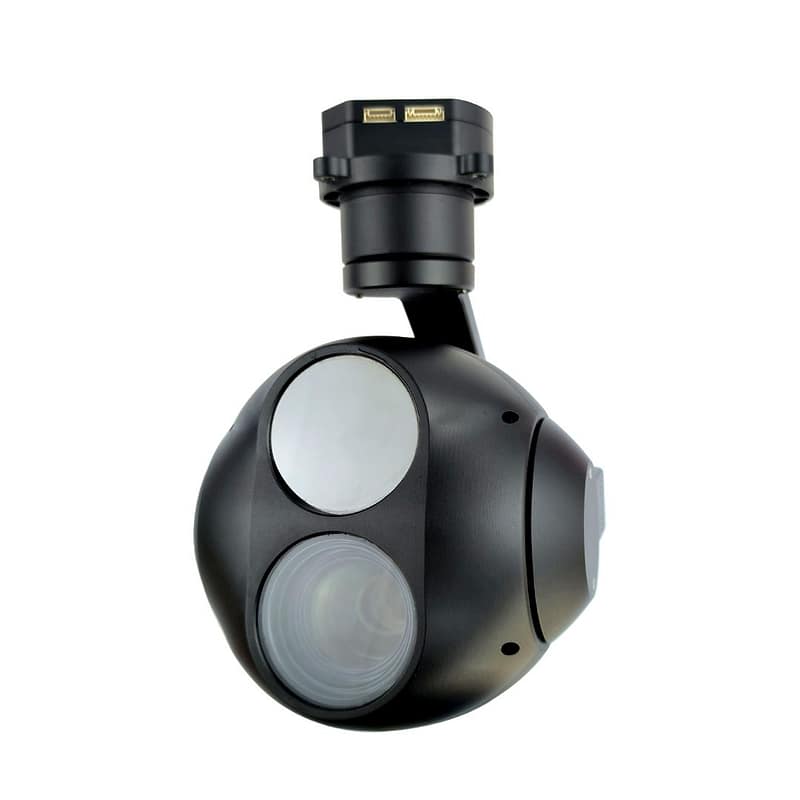

The EHP20S86G12 pairs a high-zoom visible-light camera with a high-resolution thermal imager in a single compact, precision-stabilized 3-axis gimbal. This integrated system is tailored for long-range surveillance, inspection, and environmental monitoring missions.

⚙️ Core Features & Capabilities

Visible-Light Module:

• 20× optical zoom, enhanced with digital options for up to 140× mixed zoom

• High-sensitivity CMOS sensor (~8 MP) ensuring detailed imaging in varied light conditions

Thermal Module:

• 1280 × 1024 px (1.3 MP) uncooled VOx thermal detector

• 35 mm fixed-focus lens

• Supports temperature measurement (point/area), selectable false-color palettes, and picture-in-picture display

Gimbal & Stabilization:

• High‑precision encoder-based FOC 3‑axis stabilization

• Encased in an all-metal housing for rugged UAV deployment

• Supports remote control via IP, SBUS, UART, PWM, or UDP protocols

Video & Control Features:

• HDMI and network RTSP streaming available

• Dual-channel onboard TF‑card recording (visible + thermal)

• Simultaneous PTZ and sensor control via serial or network commands

📐 Performance, Power & Form Factor

• Latency: Low-delay video streaming (~170 ms)

• Autofocus: Fast visual autofocus (typically under 1 second)

• Power: Operates on 11 V–24 V DC; power draw estimated at 6 W to 10 W

• Weight & Size: Compact dual-sensor configuration (~600–700 g typical for this class)

✅ Use Case

• UAV deployments needing both high-zoom visual and thermal imagery

• Infrastructure inspection across light and temperature modalities

• Rescue, public safety, and security patrol missions in mixed-light situational contexts

• Wildlife monitoring, border surveillance, energy facility inspection
