Product Description

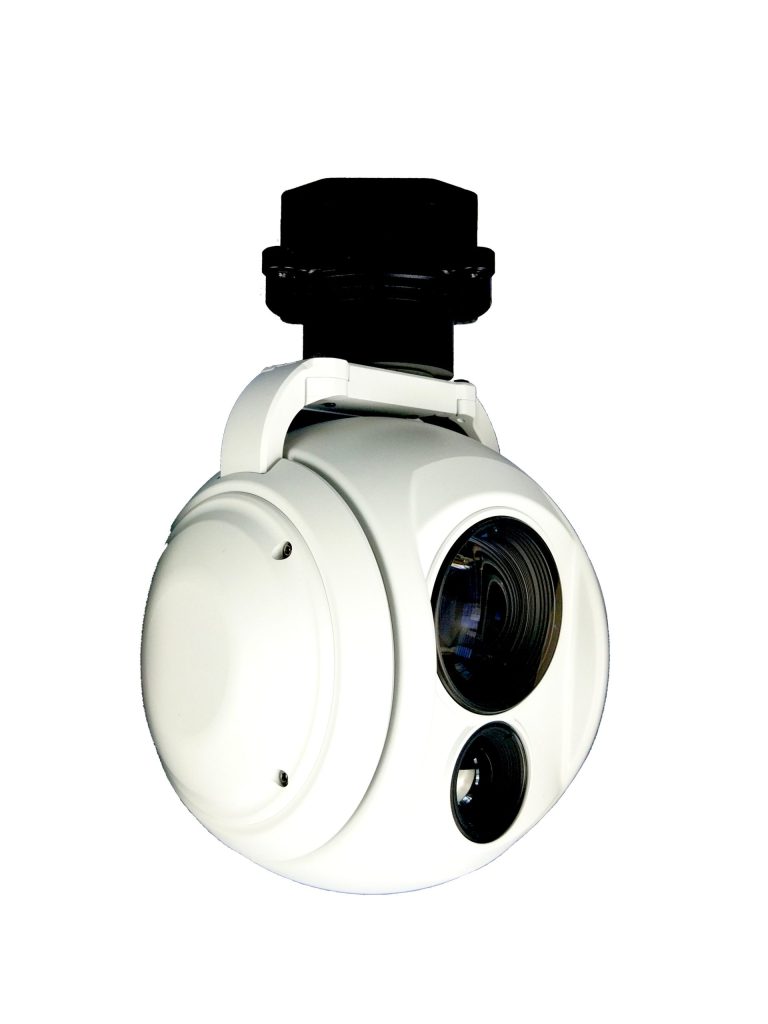

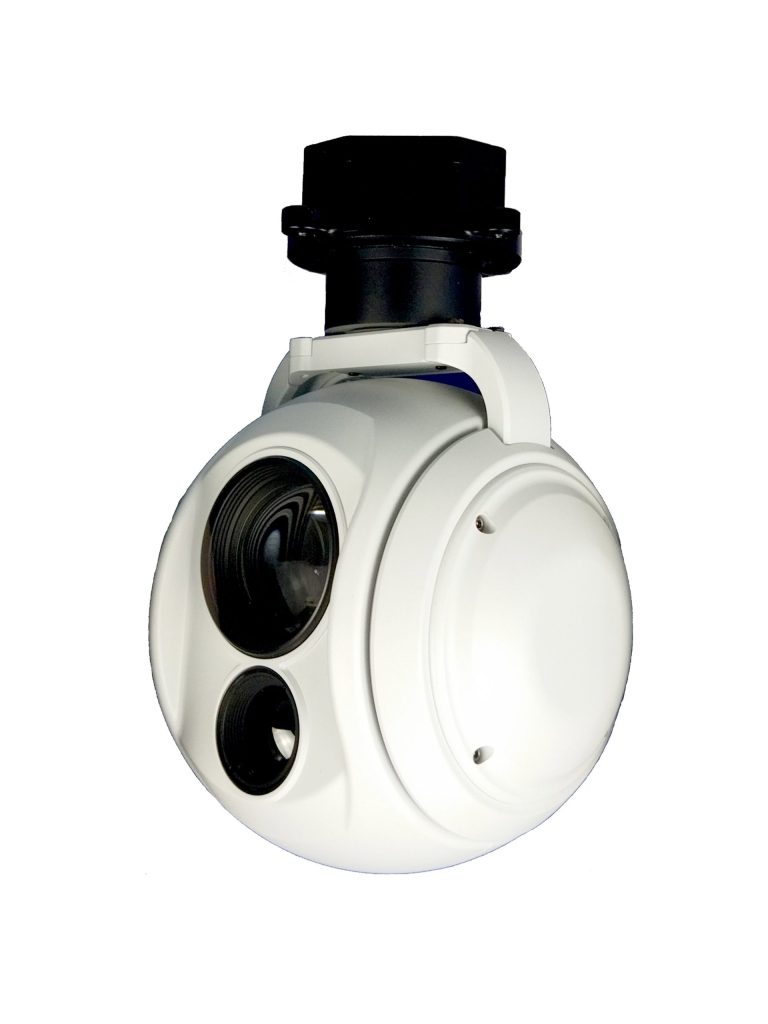

The DYS30G619 is a compact and high-performance drone payload that integrates a 30× optical zoom visible-light camera with a 640×512 thermal imaging module. Mounted on a precision 2-axis FOC-stabilized gimbal, this system delivers detailed imagery and thermal detection in a lightweight and low-power form.

---

🔍 Core Features

Visible-Light Camera

• Sensor: 2 MP low-light sensor

• Optical Zoom: 30× (approx. 4.5–135 mm focal length)

• Resolution: Supports 1080p video output

• Field of View:

  • Wide: approximate 67.8° diagonal, 59.8° horizontal, 40.5° vertical

  • Telephoto: approx. 2.77° diagonal, 2.34° horizontal, 1.48° vertical

Thermal Imaging Module

• Resolution: 640×512 VOx detector with baffle

• Lens: 19 mm fixed focal length

• Features: Supports thermal digital zoom (up to ~9×), multiple pseudo-color palettes, and picture-in-picture display

---

🌀 Gimbal & Motion Control

• Stabilization: 2-axis encoder-driven FOC stabilization ensuring smooth imagery

• Movement Range:

  • Roll: ±45°

  • Pitch: −45° to +135°

  • Yaw: continuous 360° rotation

• Stability Jitter: ±0.02° for pitch/roll and ±0.03° for yaw

• Control Interfaces: Supports SBUS, UART, PWM, and IP control; features adaptive zoom speed control and one-click "home" position

---

⚡ Power, Size & Interfaces

• Power Input: DC 3S to 6S battery (11–26 V DC), ~10 W typical

• Output: IP (RTSP) streaming, HDMI optional, supports dual TF-card recording

• Weight: Approximately 655 g (±10 g, excluding mount)

• Dimensions: ~140 × 162 × 144 mm

• Design: Full metal housing for durability and heat dissipation

---

✅ Use Cases

• Long-range aerial surveillance requiring high-resolution visible and thermal imagery

• Infrastructure inspection such as solar farms, pipelines, and power lines

• Search and rescue, firefighting, and law enforcement applications

• Situations needing compact, low-latency, dual-light payload with synchronized PTZ control
