Product Description

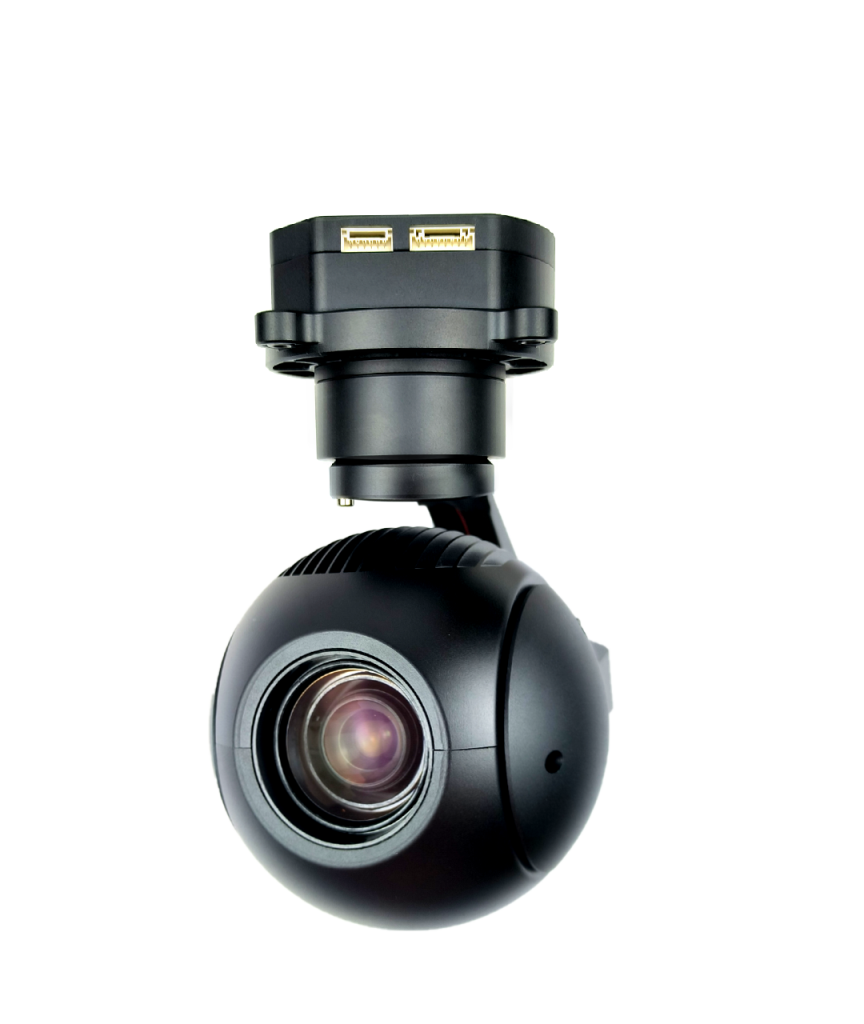

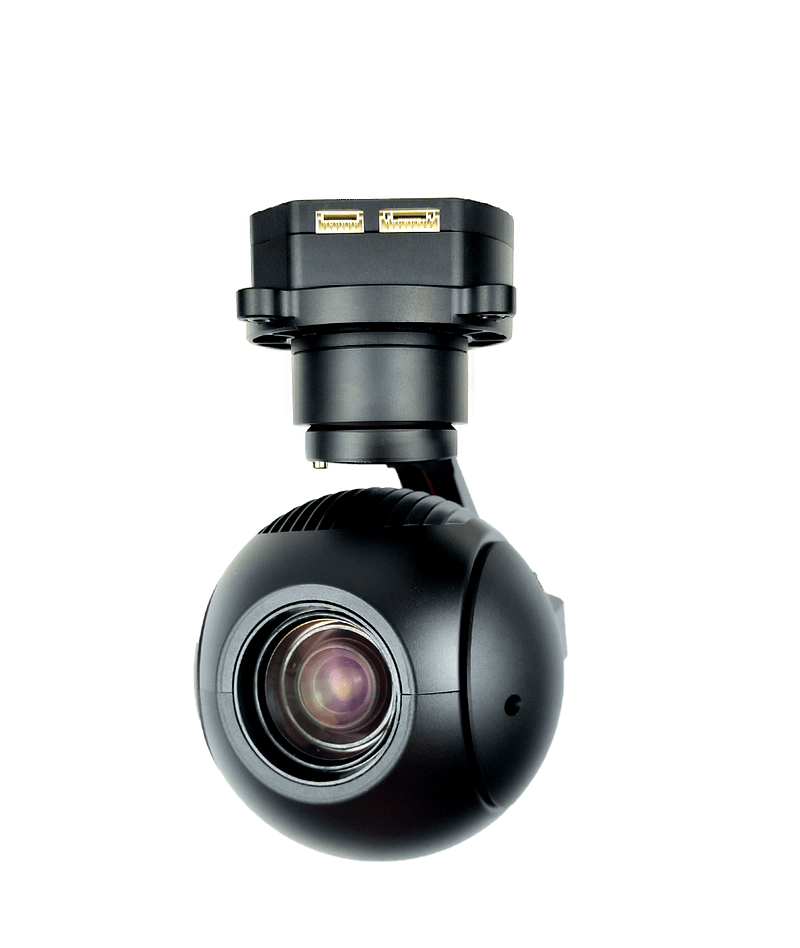

The DIY10S90 is a drone-compatible gimbal camera featuring 10× optical zoom paired with 9× digital zoom, resulting in a total hybrid zoom of around 90×. It delivers stabilized 1080p video via network streaming and supports onboard recording, making it ideal for aerial surveillance, inspection, and mapping tasks at a budget-friendly price (~USD 580).

⚙️ Core Features & Specifications

• Sensor: 1/2.8″ 2 MP wide‑dynamic CMOS

• Zoom Configuration:

  • Optical Zoom: 10×

  • Digital Zoom: up to 9× (approx. 90× hybrid total)

• Video Output:

  • 1080p HD at 30 fps

  • Streaming via RTSP over IP

  • Supports onboard TF‑card recording using H.264/H.265 encoding

• Stabilization & Control:

  • 3-axis FOC-stabilized PTZ gimbal

  • Control via network/IP, UART, and SBUS

  • Supports adaptive motion speeds and one-click return to home

  • IRCUT (day/night mode) feature

• Power:

  • Compatible with 3S or 6S drone battery input

  • Typical consumption around 5 W

🧠 Performance & Physical Attributes

• Latency: Low-delay streaming (~170 ms)

• Autofocus: Fast real-time focus under 1 second

• Dimensions: Approx. 150 mm × 140 mm

• Weight: ~425 g (without damping)

✅ Use Case

• Budget aerial surveillance and mapping

• Inspection drones with long-range zoom needs

• Emergency response, public safety, and situational awareness

• Projects that require reliable PTZ control and extended zoom without heavy payload
