Product Description

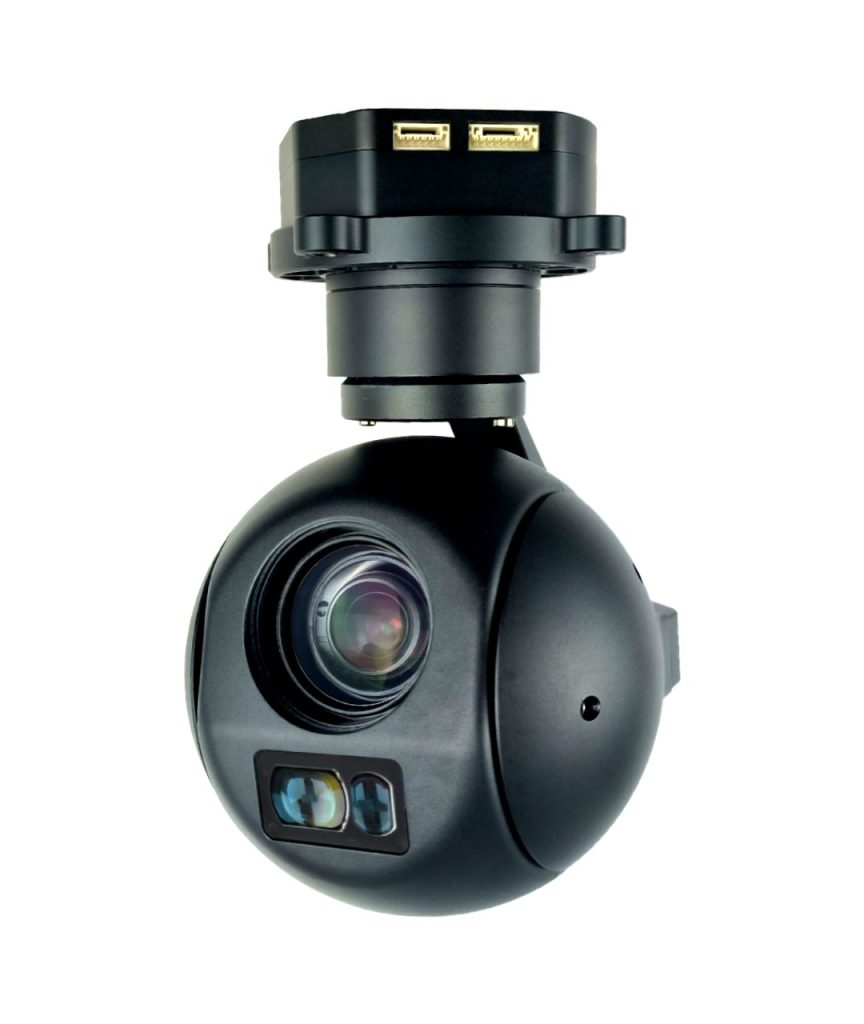

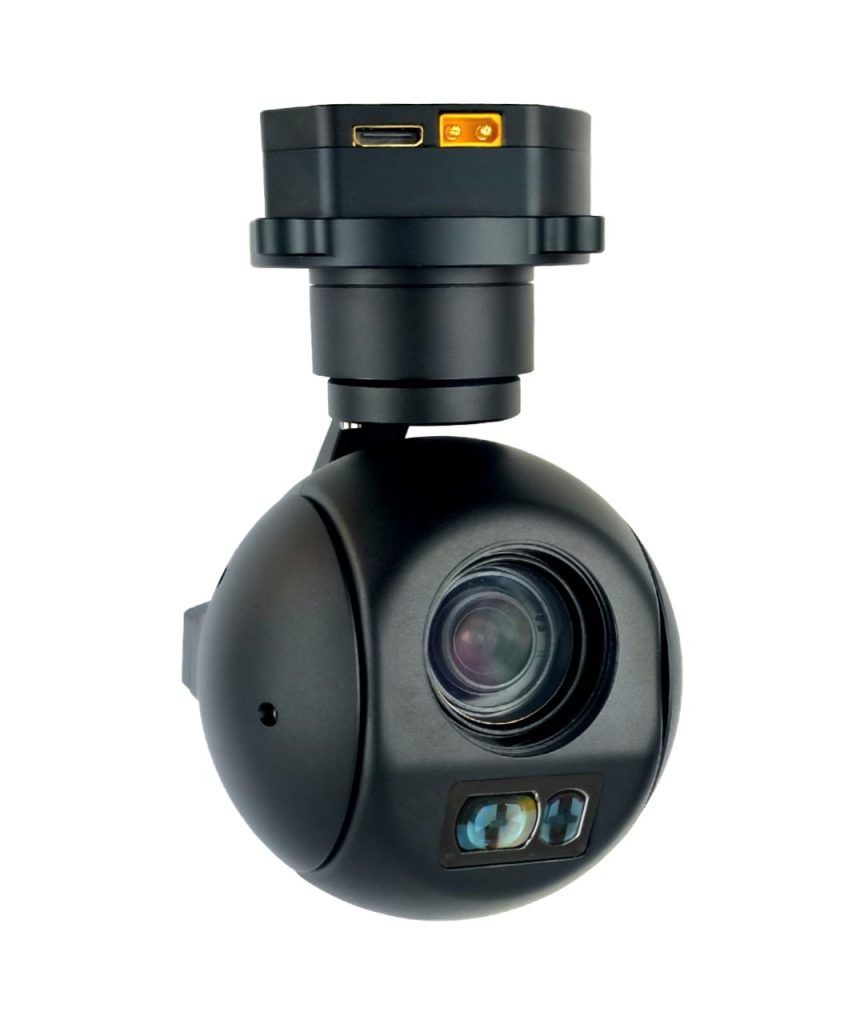

The DIY10L12 integrates a high-performance visible-light zoom module with a laser rangefinder, all in a compact dual-light camera gimbal. It delivers 90× hybrid zoom and precise distance measurement up to 1,200 meters, ideal for surveying, inspection, and surveillance missions.

---

🔍 Core Features

• Visible-Light Camera:

  • 10× optical zoom lens

  • Up to ~9× digital zoom, yielding approximately 90× total hybrid zoom

• Laser Ranging Module:

  • Class‑1 eye-safe 905 nm laser rangefinder

  • Measures distances from 5 m up to 1,200 m

  • Precision accuracy of approximately ±1 meter

• Stabilization & Control:

  • Three-axis gimbal stabilized via encoder-driven FOC (Field-Oriented Control)

  • Roll: −45° to +45°; Pitch: −30° to +95°; Yaw: ±295°

  • Stabilization jitter: ±0.02° on roll/pitch; ±0.03° horizontal

  • Adaptive PTZ movement speed (slower when zoomed in for precision)

  • One-click "return to home" positioning

  • Supports control via IP streaming, UART, SBUS (PWM optional)

---

📹 Video Output & Processing

• 1080p video at 30 fps streamed over network using RTSP

• Onboard TF‑card recording (dual-channel)

• Fast autofocus in under 1 second

• Low video streaming latency (~170 ms)

---

⚙️ Power & Dimensions

• Power input: DC 12–26 V (typical consumption ~6 W)

• Physical size: approximately 143 × 148 × 145 mm

• Weight: about 460 g (±20 g tolerance)

• Operating temperature: −10 °C to +45 °C

• Storage conditions: −20 °C to +60 °C; humidity up to 95% non-condensing

---

✅ Use Case

• Long-range aerial surveillance with distance measurement

• Infrastructure inspection and mapping duties

• Border patrol or environmental monitoring with zoom and ranging

• UAV missions requiring compact, integrated dual-sensor functionality
