Product Description

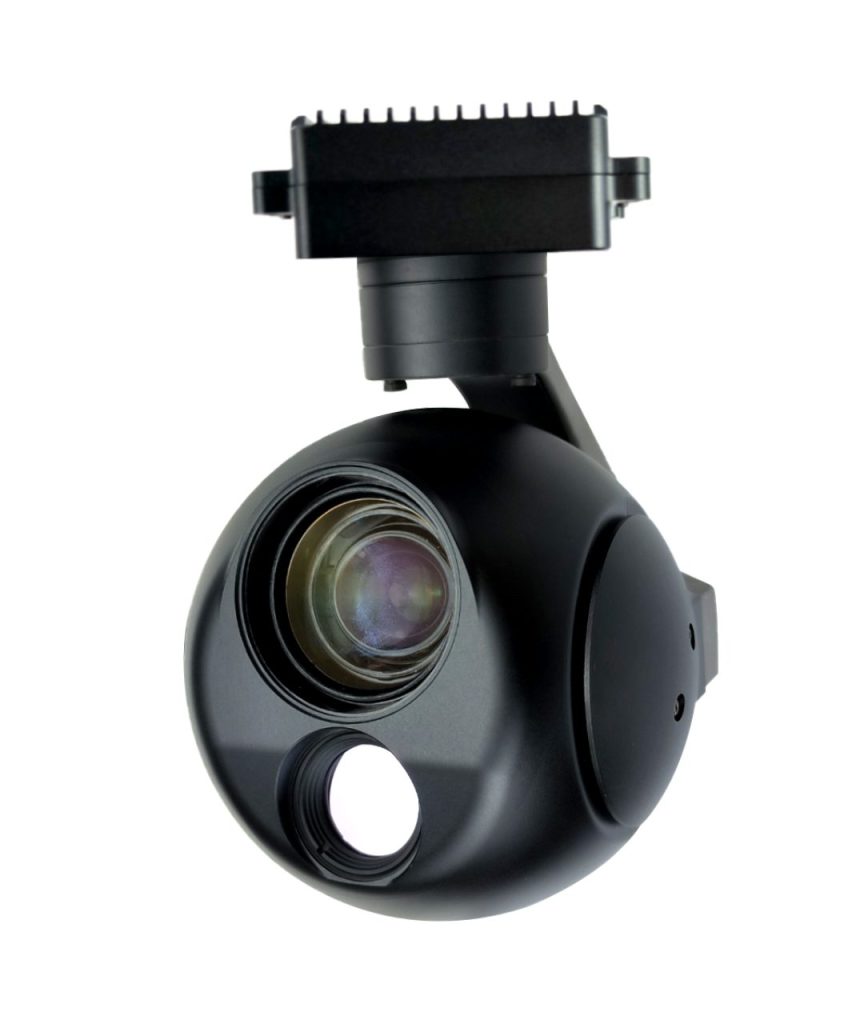

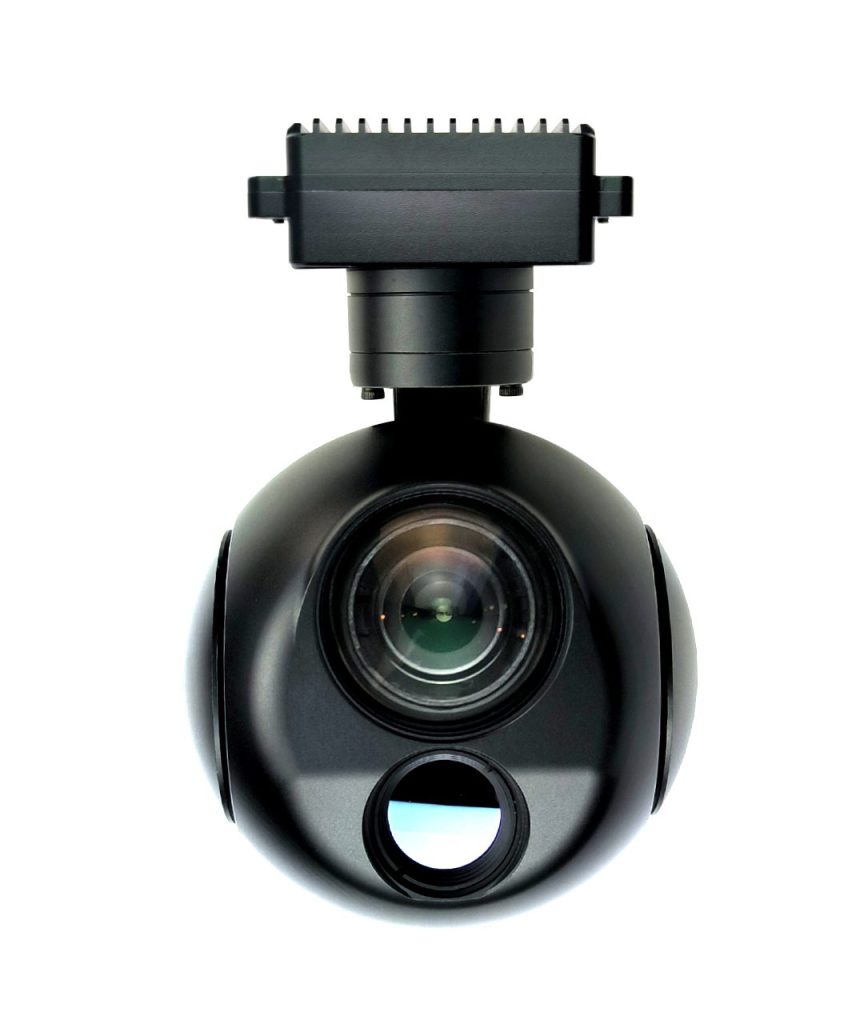

The Topotek DIU10G613 is a high-performance dual-sensor gimbal system that combines a 10× optical zoom visible-light camera with a 640×512 thermal imager. Designed for drone integration, it offers powerful imaging capabilities for surveillance, inspection, and search-and-rescue applications.

📸 Visible-Light Camera

• Sensor: 1/2.8" CMOS, 2 MP

• Zoom: 10× optical, 9× digital (approx. 90× hybrid)

• Resolution: 1920×1080 @30 fps

• Features: Autofocus, day/night switching, image stabilization

• Output: HDMI and network IP streaming (RTSP)

• Recording: Supports TF card dual-channel recording

🌡 Thermal Camera

• Sensor: 640×512 VOx uncooled detector

• Lens: 13 mm fixed focus

• Digital Zoom: Up to 9×

• Features: Pseudo-color modes, picture-in-picture, temperature measurement (point, line, area)

• Use Case: Effective for low-visibility environments and thermal inspections

🌀 Gimbal System

• Type: 3-axis FOC stabilized gimbal

• Control: IP control, UART serial, optional SBUS/PWM

• Movement: Roll ±45°, Pitch −45° to +120°, Yaw 360°

• Stabilization Accuracy: ≤ ±0.02° (pitch/roll), ≤ ±0.03° (yaw)

• Functions: Adaptive PTZ speed, preset positions, one-click return-to-center

⚙️ Technical Specifications

• Size: ~126 mm × 123 mm

• Weight: ~340 g

• Power: DC 12–26 V, power consumption <6 W

• Latency: ~170 ms (IP stream)

• Compatibility: Multirotor and fixed-wing UAVs

✅ Key Features

• Compact and lightweight for small drone platforms

• Dual-streaming visible and thermal video

• Local and remote recording

• Rapid autofocus and low latency
