Product Description

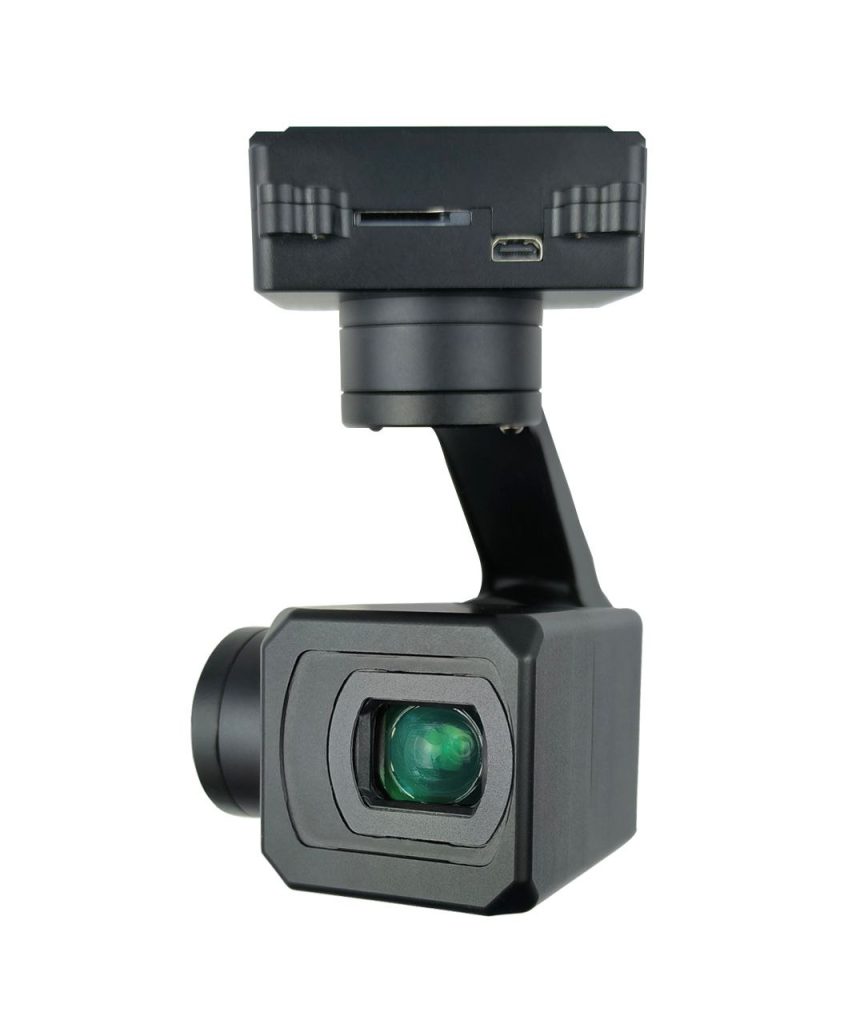

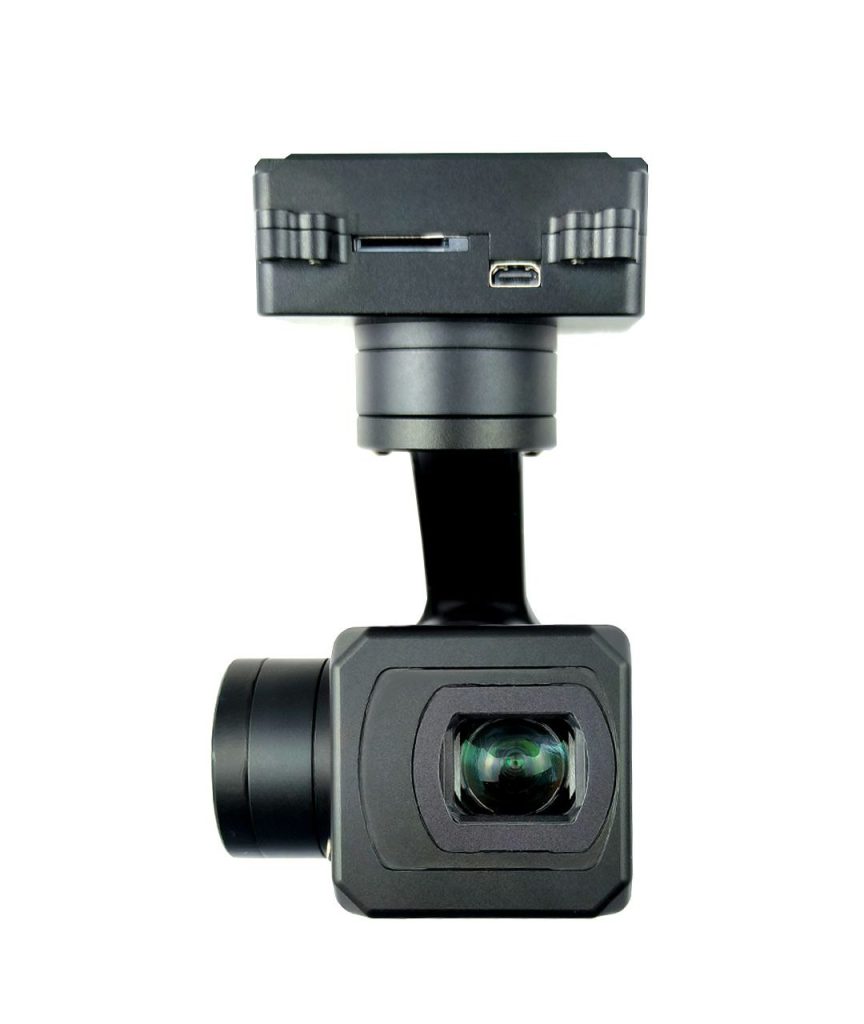

The DHU05S35 is a compact single-light camera gimbal offering 45× hybrid zoom—combining a 5× optical zoom lens with up to 9× digital zoom—mounted on a professional-grade 3-axis stabilized gimbal. It supports IP streaming, precise remote control, and onboard video recording, optimized for aerial inspection, surveillance, and mapping tasks.

---

⚙️ Key Technical Specs

• Sensor: 1/3″ CMOS with 4‑megapixel resolution

• Zoom: 5× optical (focal length ~5–25 mm) plus up to 9× digital (≈45× total)

• Autofocus: Fast (<1 s) autofocus system

• Video Output: 1080p at 30 fps via RTSP network stream; onboard TF‑card recording (H.264/H.265)

• Gimbal Range:

  • Roll: ±45°

  • Pitch: −45° to +120°

  • Yaw: ±280°

• Stabilization Jitter:

  • Pitch/Roll: ±0.02°

  • Horizontal/Yaw: ±0.03°

• PTZ Features: Adaptive speed based on zoom level; one-click return to home position

• Control Interfaces: IP control (RTSP), SBUS, UART (with optional PWM support)

• Latency: Approx. 170 ms network streaming delay

---

🧩 Physical & Environmental

• Dimensions: ~99 × 120 mm

• Weight: ~200 g (±10 g)

• Power Input: DC 12–26 V, typical consumption around 6 W

• Operating Range:

  • Temperature: −10 °C to +45 °C

  • Humidity: 20–80% RH

• Storage Conditions: Temperature from −20 °C to +60 °C, up to 95% RH non‑condensing

✅ Use Case

• Lightweight drone operations with limited payload

• Aerial surveillance or inspection requiring high zoom accuracy

• Public safety, mapping, or infrastructure monitoring missions

• Deployments needing stabilized HD video with fast autofocus and low latency
