Product Description

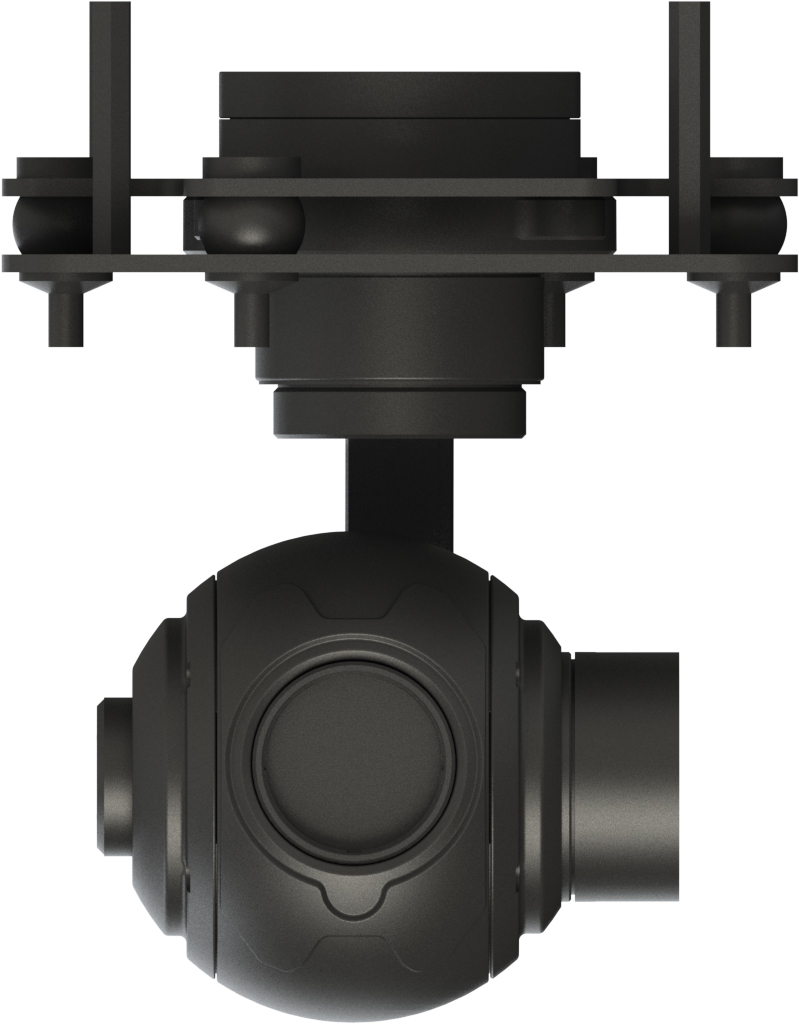

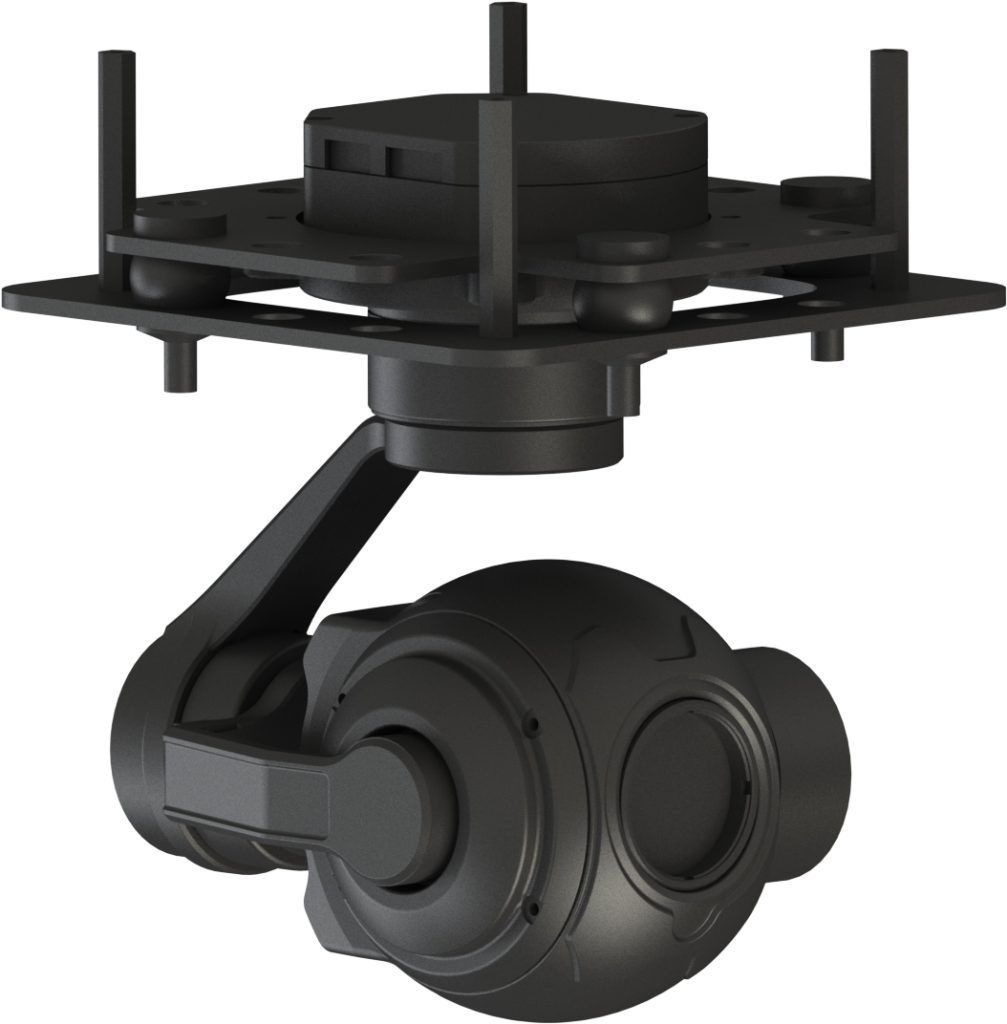

This model is a single-light thermal imaging camera mounted on a 3-axis stabilized PTZ gimbal. It uses a 25 mm fixed-focus thermal lens with 640 × 512 resolution, ideal for aerial inspection, surveillance, and environmental monitoring via drone.

---

⚙️ Technical Specifications

Thermal Imaging Module

• Resolution: 640 × 512 pixels

• Detector: Uncooled vanadium‑oxide microbolometer

• Pixel Size: 12 µm

• Spectral Range: 8–14 µm

• Thermal Sensitivity (NETD): ≤ 50 mK @ F/1.0

• Lens: 25 mm focal length (fixed focus)

• Field of View: Diagonal ~22.3°, Horizontal ~17.5°, Vertical ~14.0°

• Digital Zoom: Up to 9×

• Temperature Measurement: Supports point and area-based readouts, including minimum and maximum values

• Display Modes: Adjustable pseudo-color palettes, adjustable contrast

Gimbal & Controls

• Stabilization: 3-axis encoder-driven FOC gimbal

• Motion Range:

  • Roll: ±45° (±0.02° jitter)

  • Pitch: −45° to +120°

  • Yaw: ±280° (±0.03° horizontal jitter)

• Functional Features:

  • Lock and Follow modes

  • Single‑click return to home orientation

  • Angle presets with position feedback

• Control Interfaces: PWM, SBUS, UART, UDP; fully compatible with standard ground-station software

Video & Power

• Video Output: RTSP streaming via Ethernet

• Latency: Approximately 170 ms

• Onboard Storage: TF card support

• Power Input: 3S or 6S drone battery (DC 11–24 V)

• Power Consumption: Around 6 W

Physical & Environmental

• Weight: Approximately 380 g ±10 g

• Operating Temperature: −20 °C to +60 °C

• Storage Tolerance: −40 °C to +70 °C; up to 95% non‑condensing humidity

---

✅ Use Case

• Drone-based thermal inspection and monitoring

• Search & rescue operations or nighttime surveillance

• Infrastructure surveys, pipeline and utility inspection

• Environmental observation and wildlife detection
