Product Description

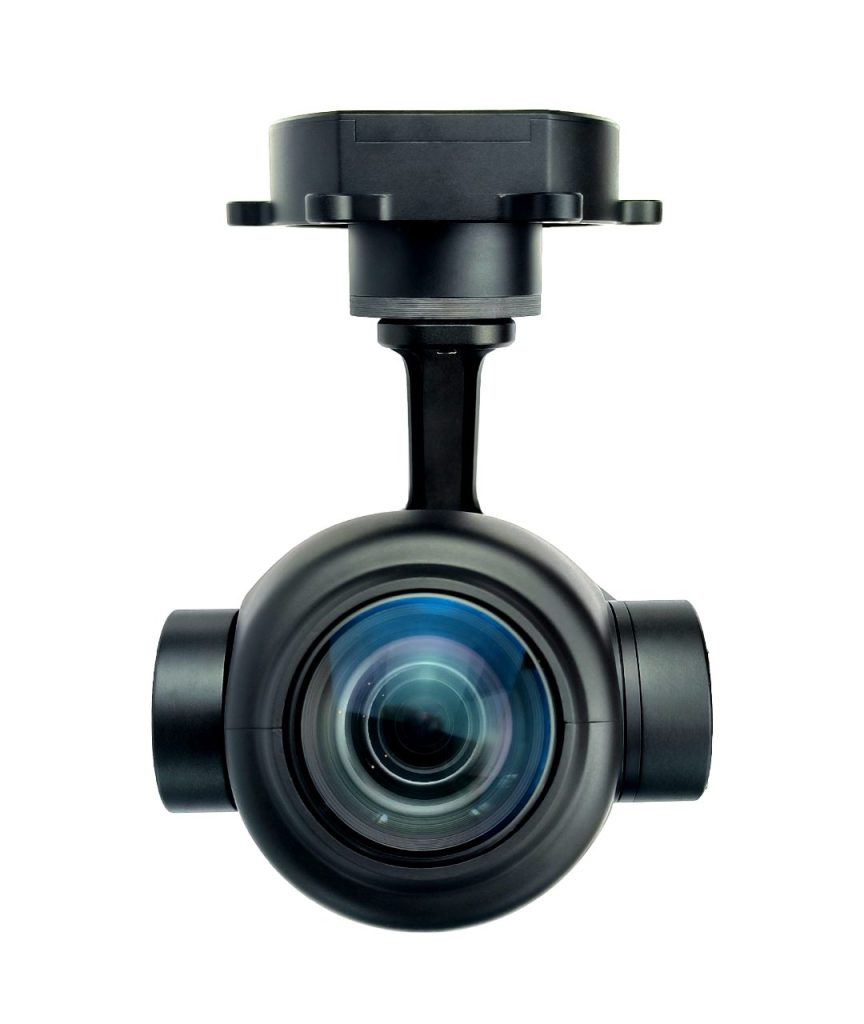

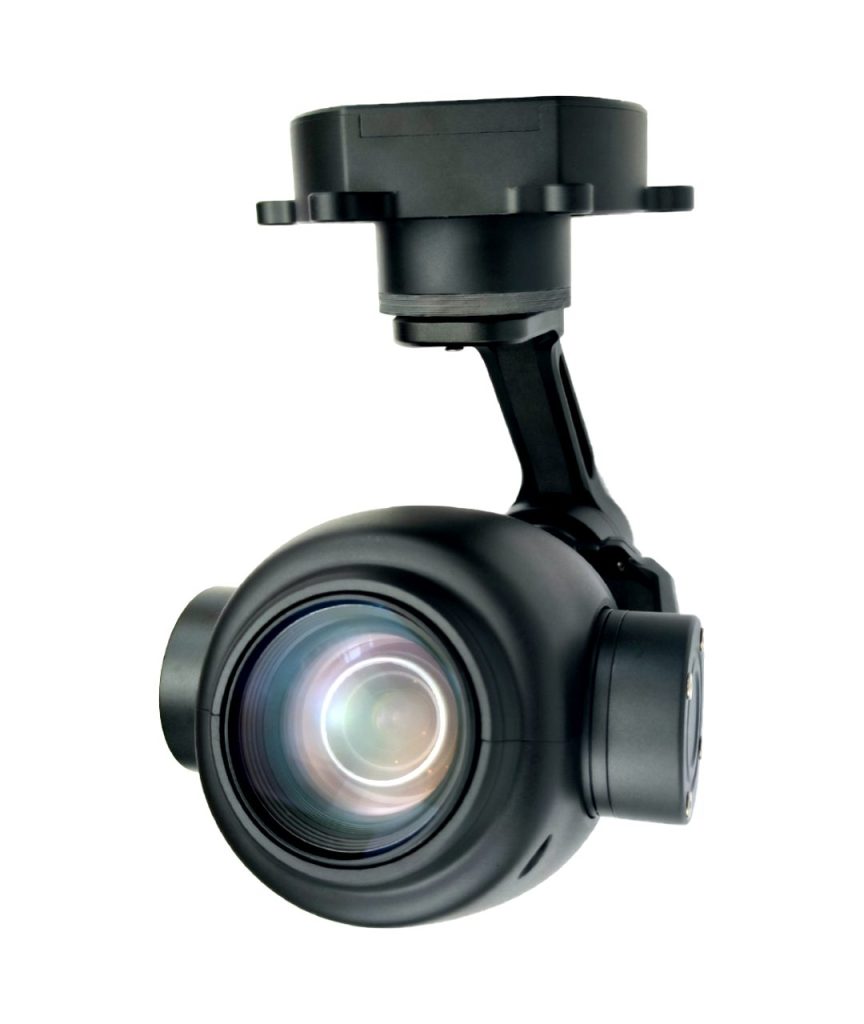

The DIP30S4K is a high-resolution drone-compatible PTZ gimbal camera featuring 30× optical zoom and up to 7× digital zoom, delivering crisp 4K video output via IP streaming with built-in AI tracking tailored for surveillance and automated follow use.

⚙️ Core Features

• Zoom Optics: 30× optical lens plus up to 7× digital zoom for approximately 210× hybrid zoom capability

• Video Streaming: 4K resolution at 30 fps via network (RTSP), with onboard TF-card recording in H.264 format

• AI Functionality: Real-time face and motion tracking, automatic target detection with support for multiple moving objects

• Control Options: IP interface plus SBUS/UART support, enabling integration with drone autopilots and ground station software

• Target Capacity: Can track and identify over 100 targets simultaneously

🧠 Gimbal & Performance Specs

• Stabilization: 3-axis encoder-based FOC system offers smooth and highly stable imagery

• Gimbal Travel Angles:

  • Roll: ±85°

  • Pitch: −45° to +135°

  • Yaw: 360° continuous rotation

• Precision: Pitch and roll jitter of ±0.02°, horizontal jitter ±0.03°

• Adaptive PTZ Speed: Slower, finer movement when zoomed in; faster sweep at wider angles

• One-Click Home: Quickly returns to preset orientation

📊 Physical & Operational Details

• Sensor: 1/3″ 8‑megapixel CMOS (wide dynamic range)

• Latency: Approximately 170 ms network streaming delay

• Autofocus: Fast autofocus—under 1 second

• Dimensions: Approximately 140 × 162 × 144 mm

• Weight: Approx. 655 g (±10 g, without vibration dampers)

• Power: Operates from 12–26 V DC (e.g. 3S or 6S Li‑Po); draws about 10 W in use

🌡️ Environmental Specs

• Operating Temperature: −10 °C to +55 °C

• Storage Temperature: Up to −20 °C to +60 °C

• Humidity: Works in 20–80% RH; storage humidity tolerance up to 95% non‑condensing

✅ Use Cases

• Automated aerial surveillance with AI-based face or motion tracking

• Long-range inspection of infrastructure or industrial sites

• Security monitoring and border patrol IP camera support

• Situations requiring persistent tracking of moving targets
