Product Description

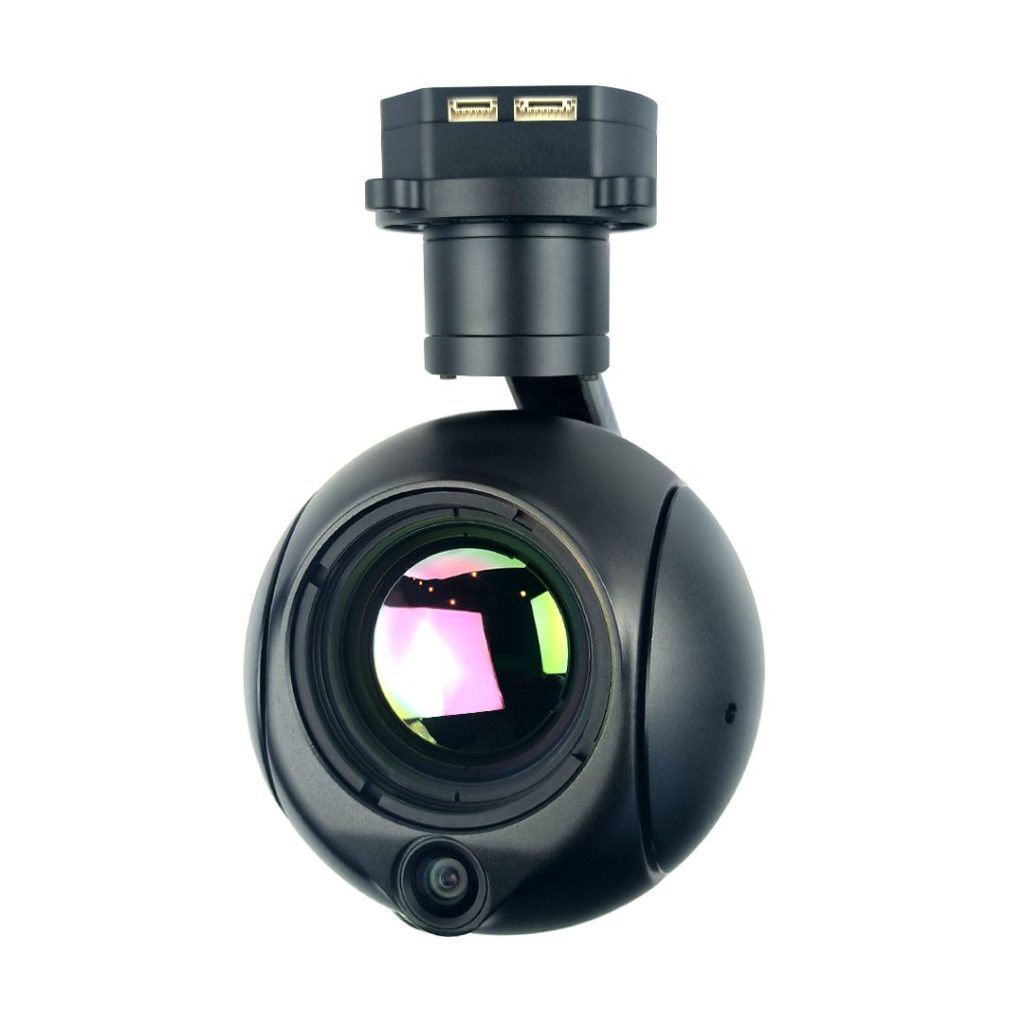

The DIP290G650 combines a 1080p visible-light camera and a 640 × 512 thermal imager into a single compact gimbal payload. It’s built for professional UAV and drone applications that require both detailed daylight imaging and thermal monitoring.

⚙️ Key Specifications

Visible-Light Module

• Fixed-focus 1080p CMOS sensor with approximately 2 MP resolution

• Designed for low-light performance

Thermal Module

• 640 × 512 pixel uncooled VOx (vanadium oxide) thermal sensor

• 50 mm fixed-focus thermal lens

• Field of view optimized for extended-range thermal detection

• Digital zoom supported (typically up to 9×)

Gimbal & Stabilization

• 3-axis stabilized PTZ gimbal with encoder-based FOC control

• Compact and lightweight design with low power requirements

• Metal housing for durability

Control & Output

• Video streaming via RTSP over Ethernet network

• Supports picture-in-picture display modes and multiple thermal color palettes

• Local recording to TF (microSD) card

• Remote control via SBUS, UART, UDP, and PWM protocols

Performance & Power

• Approximate streaming latency: ~170 ms

• Power input: DC 11–24 V (e.g. compatible with common drone batteries)

• Estimated power consumption: 5–6 W

Physical & Environmental

• Lightweight and compact (specific weight not published, but aligns with similarly sized dual-light models around 600–700 g)

• Suitable for standard operational temperatures and humidity ranges for drone equipment

✅ Use Case

• Multi-modal aerial inspection (e.g. utilities, energy infrastructure)

• Emergency response and public safety integrations requiring thermal support

• Extended-range surveillance in mixed-light environments

• Inspection missions where combining thermal and visible imaging improves detection and analysis
