Product Description

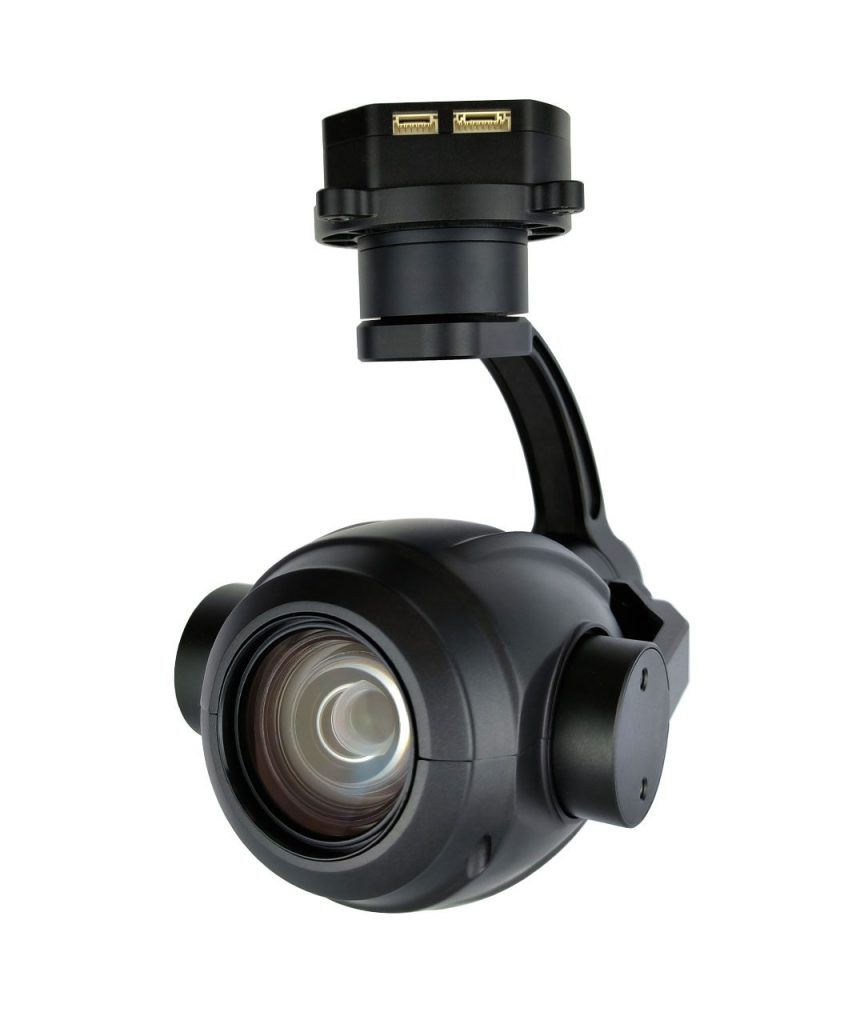

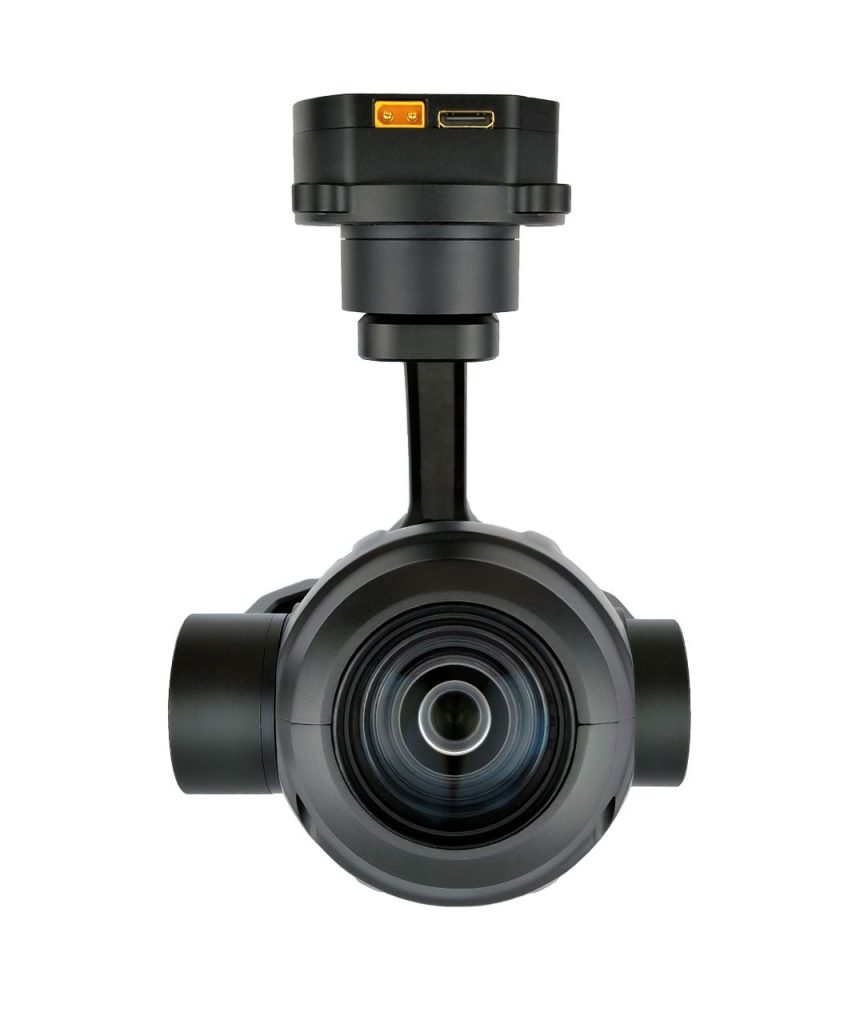

The DIP20S78 is a compact yet powerful drone-grade camera featuring 20× optical zoom paired with up to 9× digital zoom, offering approximately 180× mixed zoom capability. It includes advanced night-vision performance thanks to its high-sensitivity sensor.

⚙️ Core Features & Technical Specs

Sensor & Zoom

• 1/1.8″ 8 MP SONY STARVIS2 wide-dynamic CMOS sensor, optimized for low-light/night vision

• Optical zoom: 20×

• Digital zoom: up to 9×

• Combined full zoom: ~180× mixed zoom

Video Output & Recording

• Supports 4K and Full HD (1080p) video via RTSP network stream and local TF-card recording

• Low-latency streaming of approximately 170 ms

Stabilization & Movement Ranges

• 3-axis PTZ gimbal with encoder-based FOC control

• Roll: ±45°; Pitch: −45° to +120°; Yaw: continuous (−360° to +360°)

• Stabilization precision: ±0.02° for pitch/roll; ±0.03° for yaw

• One-click “return to home” position

• Adaptive movement speed: slow at high zoom for precision; fast when zoomed out

Focus & Control

• Fast autofocus (under 1 second)

• Control interfaces include IP (RTSP control), SBUS, and UART, with optional PWM support

• Standard PTZ behavior supported via compatible ground station software

🧩 Physical & Environmental

• Dimensions: ~140 × 162 × 144 mm

• Weight: ~635–670 g (±10 g)

• Power input: 11–24 V DC; approximate consumption around 10 W

• Operating temperature: −10 °C to +55 °C

• Storage temperature: up to −20 °C to +60 °C

• Relative humidity: 20–80% operating; up to 95% non-condensing when stored

✅ Use Case

• Aerial surveillance in day and night scenarios

• Infrastructure inspection, border patrol, and public safety missions

• Search and rescue operations requiring zoom and low-light imaging

• Situations demanding long-range visual observation with high stability
