UDOO Bolt is a powerful embedded platform powered by AMD Ryzen V1000 Series with integrated Radeon Vega GPU. It supports AI, robotics simulation, real-time control, and full Windows/Linux environments — ideal for ROS2, Gazebo, and advanced robot middleware.
Product Description

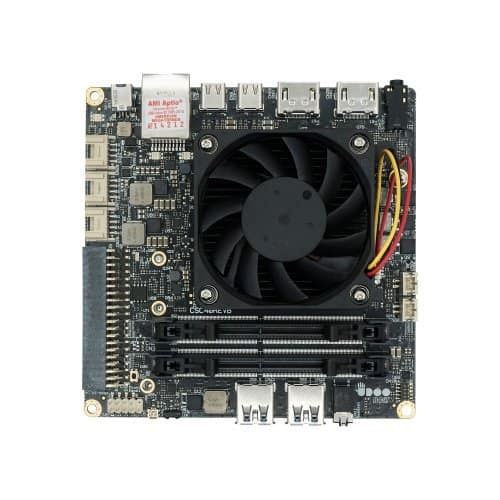

The UDOO Bolt V8 is a high-performance x86 single-board computer (SBC) designed for creators, developers, and tech enthusiasts who demand both versatility and power. At its core lies the AMD Ryzen Embedded V1605B SoC, equipped with four Zen CPU cores (eight threads), running at 2.0 GHz and boosting up to 3.6 GHz. It also integrates Radeon Vega 8 graphics with eight compute units, delivering GPU performance comparable to mid-range discrete cards like the GTX 950M. Memory & Storage The board features dual SO‑DIMM slots for up to 32 GB DDR4 RAM (with ECC support), a 32 GB onboard eMMC 5.0, and additional storage options via M.2 slots for both SATA (Key B 2260) and NVMe (Key M 2280), plus a standard SATA III connector. Multimedia & Graphics Graphics capabilities include support for DirectX 12, OpenCL, OpenGL, Vulkan, H.265 encode/decode, and VP9 decode. The board can drive multiple 4K displays simultaneously—ideal for AAA gaming, VR/AR, 3D rendering, or serving as an HTPC Connectivity & Expansion
- Dual HDMI ports (1.4/2.0a)
- Two USB Type‑C ports with DisplayPort Alt Mode and USB Power Delivery (USB‑PD) support
- Two USB 3.0 Type‑A ports
- Gigabit Ethernet (Realtek RTL8111G)
- M.2 Key E slot for optional Wi‑Fi/Bluetooth modules
- website:https://www.udoo.org/
Controller Specific
| Attribute | Value | Description | Why It Matters |
|---|---|---|---|
| Processor Type | N/A | CPU architecture and speed | Computational capability |
| I/O Capacity | N/A | Digital/analog input/output count | System integration capacity |
| Memory | N/A | RAM and storage capacity | Program complexity capability |
| Real-time Capability | N/A | Deterministic response time | Motion control precision |
| Communication Interfaces | N/A | Network and fieldbus support | System connectivity |
| Programming Environment | N/A | Development software | Ease of implementation |
| Safety Features | N/A | Functional safety compliance | Human safety requirements |
| Expansion Options | N/A | Modular expansion capability | System scalability |
Form Factor
| Attribute | Value | Description | Why It Matters |
|---|---|---|---|
| Height | 10 | Total standing height (cm) | Human-scale enables use of tools, navigation of spaces |
| Width | 20 | Shoulder-to-shoulder width (cm) | Affects balance, door/passage fit |
| Weight | 52 | Total mass (kg) | Impacts mobility, safety, power usage, transportability |
Power System
| Attribute | Value | Description | Why It Matters |
|---|---|---|---|
| Battery Type | Alkaline Battery | Li-ion / LiFePO4 / etc. | Determines energy density, safety |
| Battery Capacity | Wh or Ah | Impacts range and operating time | |
| Operating Duration | Hours under normal load | Key for logistics, shift planning |
Performance
| Attribute | Value | Description | Why It Matters |
|---|---|---|---|
| Payload Capacity | Maximum carrying capacity (kg) | Determines real-world utility | |
| Speed | Maximum operational speed | Task completion rate & productivity | |
| Precision | Positioning accuracy (mm) | Quality of work & application suitability | |
| Repeatability | Consistency of positioning (±mm) | Manufacturing quality & reliability | |
| Cycle Time | Time per standard operation | Productivity & throughput calculations | |
| MTBF | Mean Time Between Failures (hours) | Reliability & maintenance planning | |
| Service Life | Expected operational lifespan (years) | ROI calculations & replacement planning |
Connectivity
| Attribute | Value | Description | Why It Matters |
|---|---|---|---|
| Communication Protocol | Wi-Fi / Ethernet / 5G / Bluetooth | Network integration capabilities | |
| Remote Control | Web / App / Joystick / API | Needed for manual override or remote training | |
| Programming Interface | Drag-drop / Code / Visual / Teach pendant | Ease of deployment and customization | |
| Integration APIs | Available software interfaces | System integration capabilities | |
| Cloud Connectivity | Cloud platform compatibility | Data analytics & remote monitoring | |
| Security Features | Encryption & authentication methods | Cybersecurity compliance |
