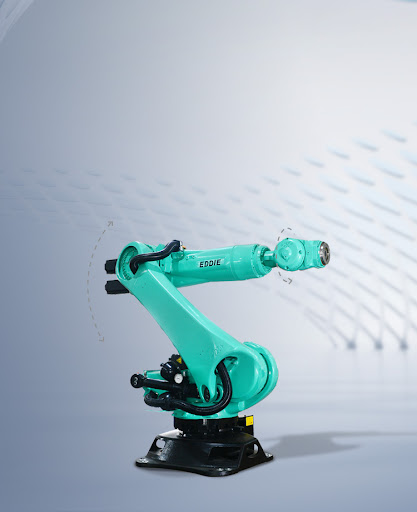

The AT210R2700A is a high-performance 6-axis industrial robot arm with a 210 kg payload and 2700 mm reach, ideal for heavy-duty automation tasks.
Product Description
The AT210R2700A is a robust 6-axis articulated industrial robot arm designed for high-payload applications. With a maximum payload capacity of 210 kg and a reach of 2700 mm, it excels in tasks such as material handling, palletizing, and assembly. Its high precision (±0.06 mm repeatability) and IP65-rated wrist protection ensure reliable performance in demanding environments.
Key Features:
-
Payload Capacity: 210 kg
-
Reach: 2700 mm
-
Repeatability: ±0.06 mm
-
Degrees of Freedom: 6
-
Wrist Protection: IP65
-
Body Weight: 1140 kg
-
Power Consumption: 1.20 kW
-
Installation Type: Ground-mounted
-
Operating Temperature: 0–45°C
-
Humidity Range: 20–85%
Industrial Specific
Attribute
Value
Description
Why It Matters
Degrees of Freedom
N/A
Number of controllable axes
Task complexity capability
Reach
Maximum working radius (mm)
Workspace coverage
Speed
Maximum joint velocity (°/s)
Cycle time optimization
Acceleration
N/A
Maximum joint acceleration
Dynamic response
Force Control
N/A
Force sensing capability
Assembly applications
Tool Compatibility
N/A
Supported end effectors
Application versatility
Safety Rating
N/A
Safety integrity level
Human-robot collaboration
Cleanroom Compatible
N/A
Clean environment certification
Semiconductor & pharma use
Explosion Rating
N/A
Hazardous environment certification
Chemical, oil & gas use
Programming Methods
N/A
Online/offline programming
Deployment flexibility
